DiodesZetex Low-Voltage CMOS 1 2-Input Multifunction Logic Gate 6-Pin SOT-363 74LVC1G97DW-7

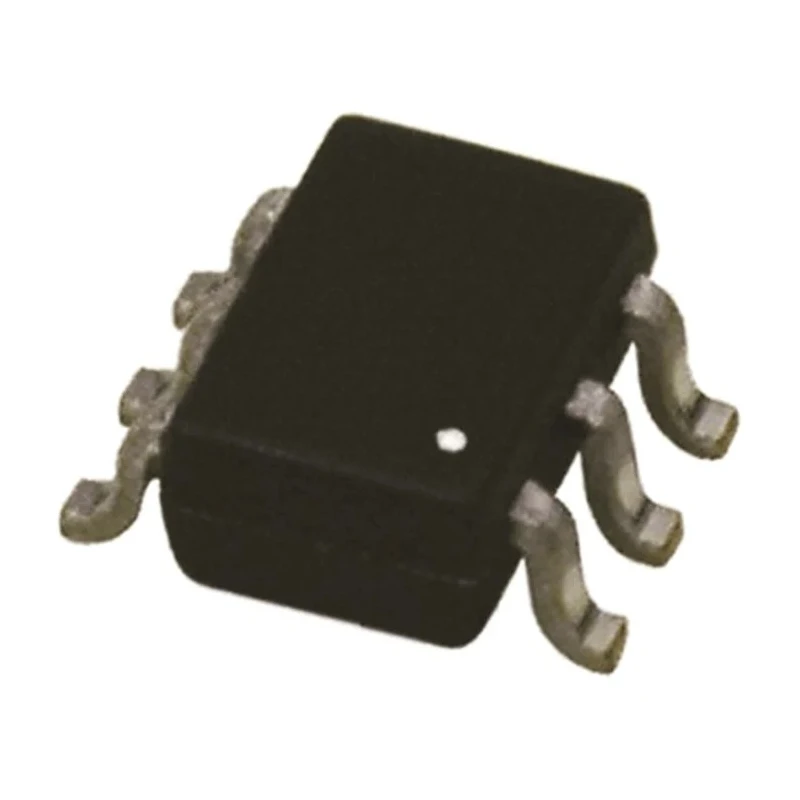

DiodesZetex 74LVC1G97DW-7 is a low-voltage CMOS multifunction logic gate designed for modern electronic systems requiring efficient and versatile digital logic functions. Packaged in a compact 6-pin SOT-363 surface mount form factor, this device provides one 2-input logic gate capable of performing multiple logic functions, suitable for space-constrained PCB layouts.

Operating voltage ranges from 1.65 V to 5.5 V, allowing for low power consumption and compatibility with a broad range of logic families including TTL and LVTTL inputs, with LVCMOS push-pull outputs ensuring robust switching performance. The maximum propagation delay time of 6.4 ns guarantees swift signal processing ideal for high-speed digital circuits.

The logic gate features a wide operating temperature range of -40°C to 125°C, making it suitable for demanding industrial environments and applications. It provides a maximum high-level output current of -32 mA and maximum low-level output current of 32 mA, supporting various load conditions.

This multifunction logic gate finds application in electronic components, power management ICs, industrial automation systems, and other semiconductor-based logic circuit designs. Surface mount type ensures easy integration into automated assembly processes.

Single multifunction 2-input logic gate for diverse logic applications. Low-voltage CMOS technology with operating voltage 1.65 to 5.5 V. Compact SOT-363 6-pin surface mount package. Fast switching with 6.4 ns maximum propagation delay.

Wide temperature range -40°C to 125°C for industrial use. Push-pull output compatible with LVTTL/TTL input logic families. Robust output current drive capabilities of -32 mA (high) and 32 mA (low). Ideal for electronic components, semiconductors, and industrial automation.

Discover enhanced performance and integration for your Logic Gate design requirements with the DiodesZetex 74LVC1G97DW-7 available at EnvMart.
