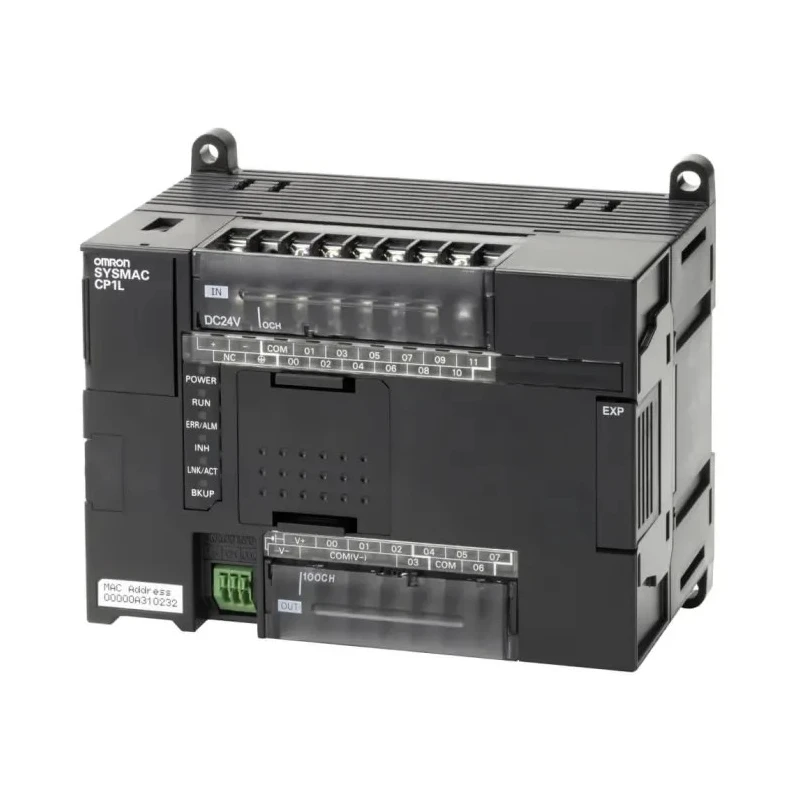

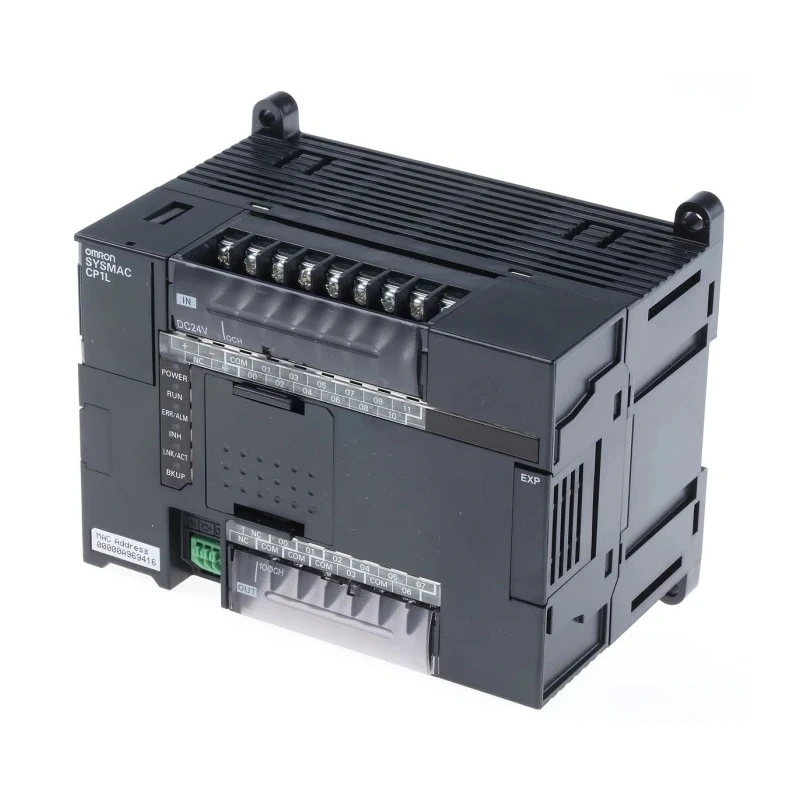

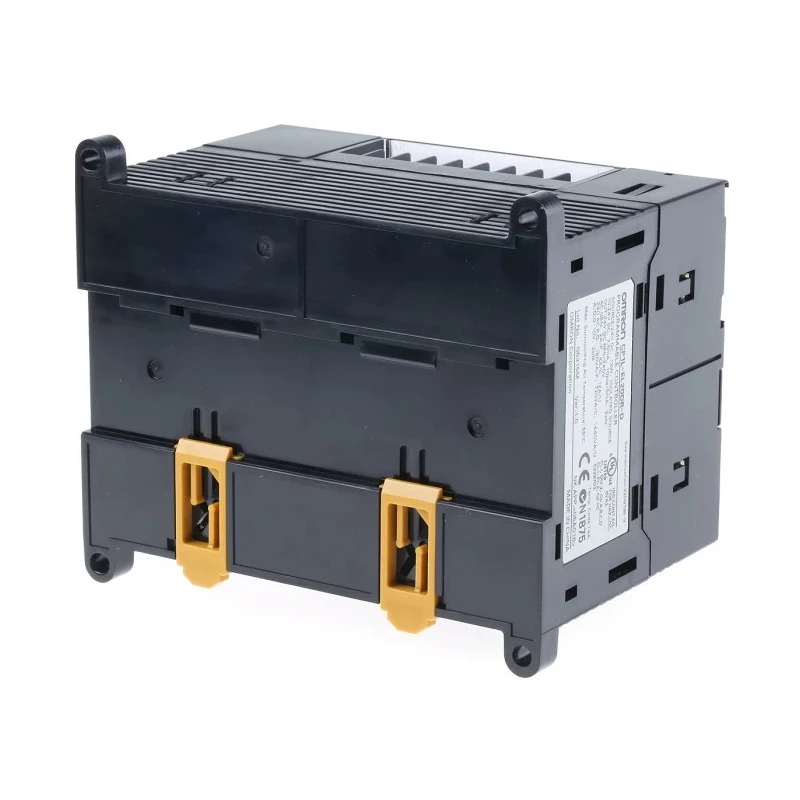

Omron CP1L-EL Series PLC CPU, 12-Input DC, 8 Relay Outputs, Ladder Diagram Programming, DIN Rail Mount

Omron CP1L-EL20DR-D is a reliable PLC CPU designed for industrial automation with 12 DC inputs and 8 relay outputs, providing efficient control solutions for various manufacturing and process automation sectors. Operating within a DC input voltage range of 20.4 to 26.4 V, this PLC CPU supports complex automated tasks with a 5000-step programming capacity using intuitive ladder diagram programming language.

Its compact size (86 mm × 90 mm × 85 mm) fits easily into constrained environments, and DIN rail mounting facilitates space-saving installation inside control cabinets. The inclusion of battery backup ensures that crucial program data and configuration parameters remain intact during power failures, minimizing downtime.

Equipped with an RS232 communication port and Ethernet connectivity, this unit enables seamless integration into industrial networks, supporting remote monitoring and control. The relay outputs can handle a current of 10 mA, suitable for switching a variety of loads in control circuits.

Designed to operate reliably across an industrial temperature range of 0°C to 55°C, the CP1L-EL20DR-D PLC CPU is ideal for use in manufacturing plants, process control systems, electrical distribution, and other industrial automation environments.

This PLC supports ladder diagram programming for efficient and accessible automation logic development. The device operates within 20.4 to 26.4 V DC input voltage range, ensuring versatile industrial use. Features 5000-step program capacity for managing complex control tasks.

Includes one RS232 communication port and Ethernet connectivity for network integration. DIN rail mount type allows space-saving installation in control panels. Equipped with battery backup to maintain program memory during power outages.

Operating temperature range is 0°C to 55°C for reliable performance under typical industrial conditions. Compact dimensions of 86 mm length, 90 mm width, and 85 mm depth fit constrained spaces. Output current rating is 10 mA with relay type outputs suitable for diverse control requirements.

Display included for monitoring and configuration purposes.

This Omron PLC CPU belongs to the trusted CP1L-EL series, known for robust control and ease of network integration. It is suitable for industrial automation, manufacturing process control, electrical distribution systems, and other applications requiring reliable programmable logic control.

Explore a wide range of industrial automation products and PLC CPUs at EnvMart to find compatible controls, modules, and accessories.
