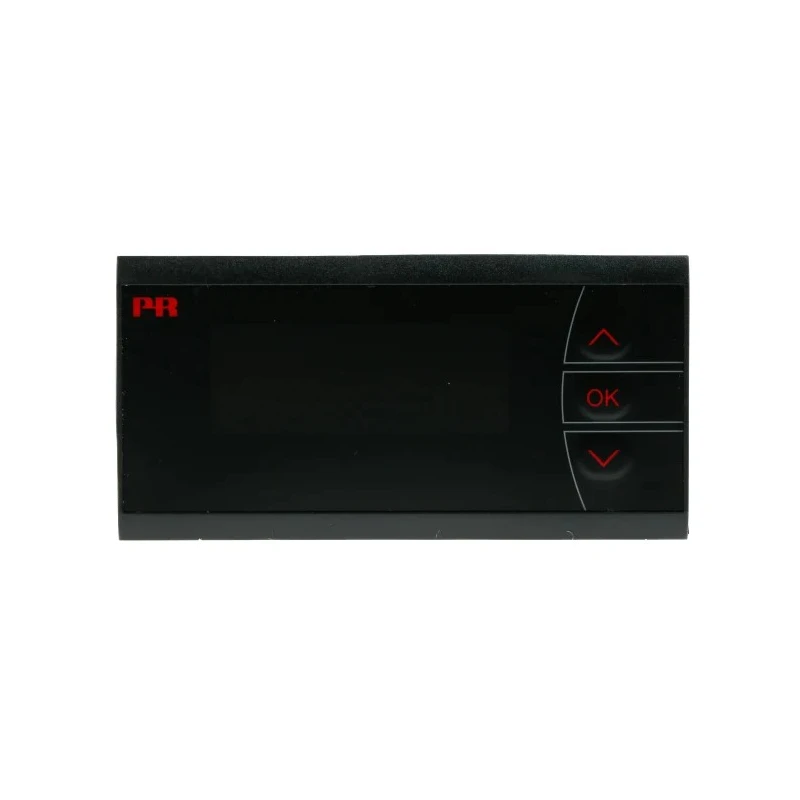

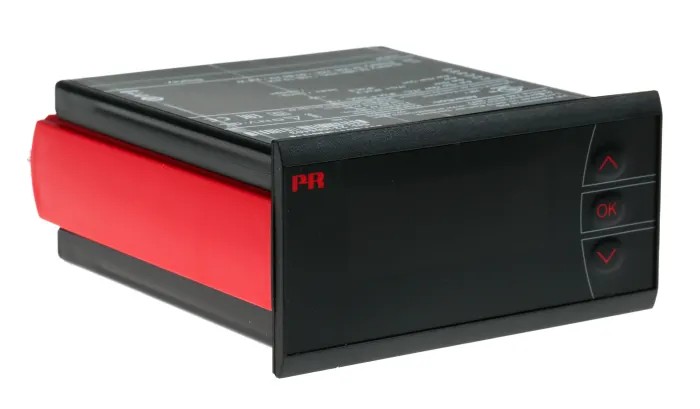

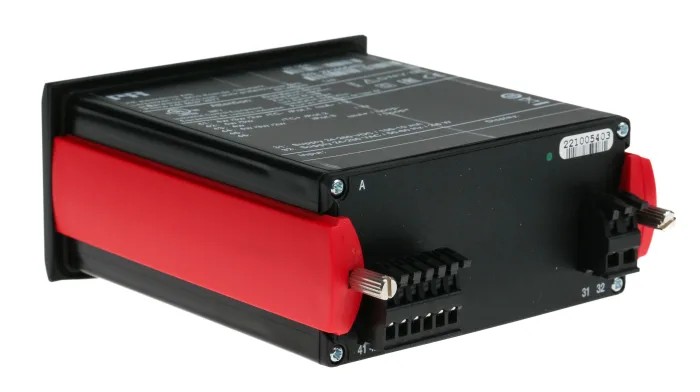

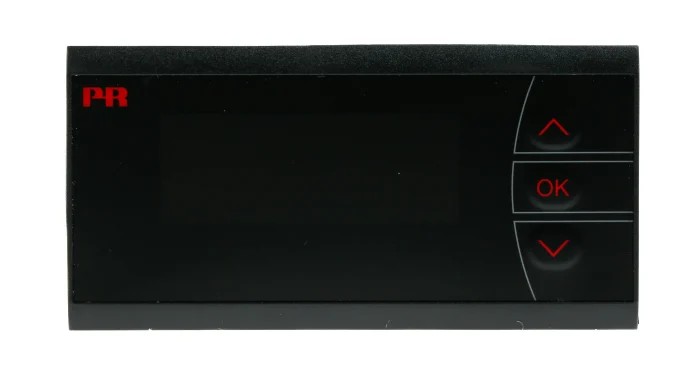

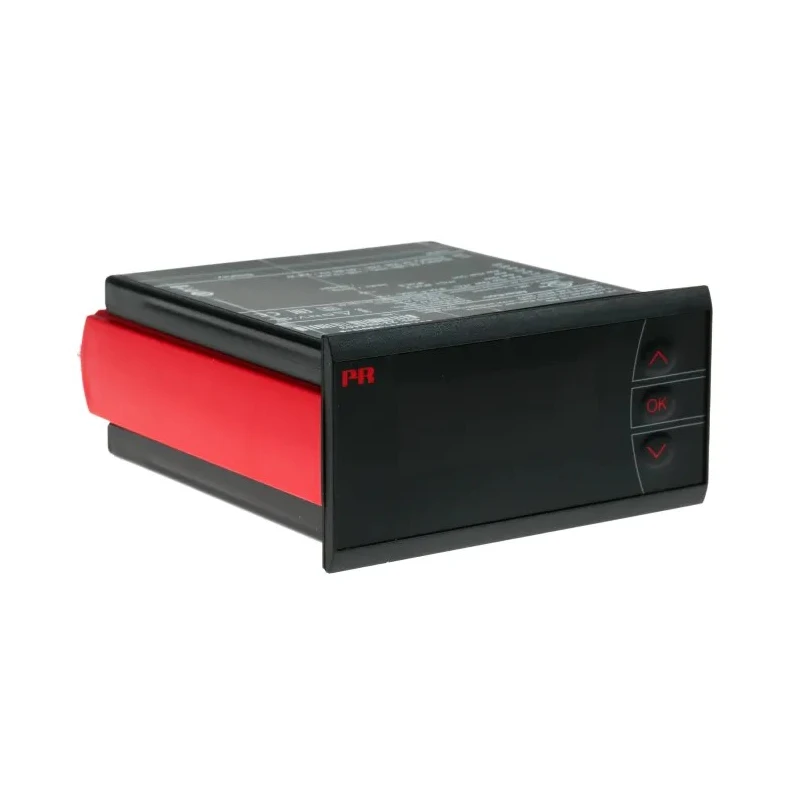

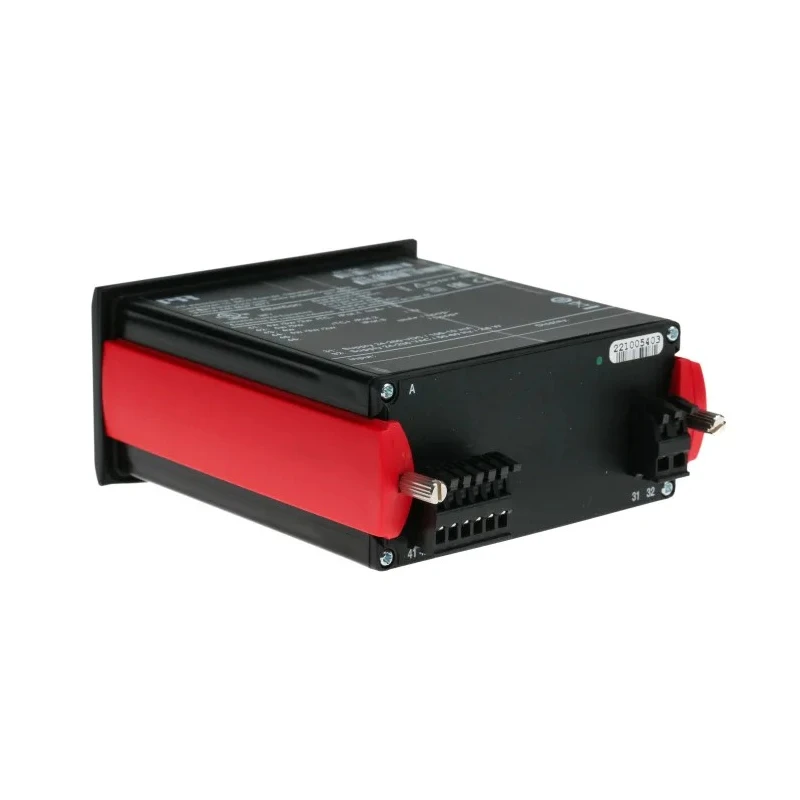

PR Electronics 5700 LED Multi-Function Panel Meters for Temperature, Resistance, Potentiometer Signal, Current, Voltage 5714A

PR Electronics 5714A is a versatile LED multi-function panel meter capable of measuring temperature, resistance, potentiometer signals, current, and voltage. It offers a clear digital readout via a 4-digit 14-segment LED display with digits 13.8 mm high, ensuring visibility in a variety of industrial and commercial settings.

Designed for flexibility and reliability, this programmable meter can be configured effortlessly through front panel keys, DIP switches, or PC software, accommodating multiple application requirements including automation, process control, and industrial measurement tasks.

The device operates optimally within a temperature range of -20°C to 60°C and meets rigorous international standards such as EN 61010-1, EN 61326-1, GOST R, and UL 508, ensuring safe use in demanding environments.

Installation is user friendly, with a panel front mounting method complemented by a rubber packing that provides an IP65 protection rating, safeguarding against dust and water ingress. For extreme environments, an optional splash-proof cover is available for enhanced protection.

This meter includes two relays and an analog output to facilitate extensive control and signaling functions. It supports a maximum measurement voltage of 10 V and features universal input and supply to handle varied process signals with stability and precision.

Additional advantages include multi-language help texts to support operators in diverse regions and straightforward integration into industrial automation systems. The meter is manufactured in Denmark, reflecting high build quality and engineering excellence.

Set yourself up for efficient and precise monitoring with the PR Electronics 5714A LED multi-function panel meter, suitable for industrial automation, process control, HVAC, manufacturing, and laboratory applications. Environmentally resistant and feature-rich, it offers dependable performance and extensive configurability.

Browse the full range of PR Electronics products and Multi-Function Panel Meters in the EnvMart catalog to find solutions tailored to your industrial automation and control needs. The meter features a 4-digit 14-segment LED display with digit height of 13.8 mm.

Programmable via front push buttons, DIP switches, or PC connection for flexible configuration. Operates reliably in temperatures ranging from -20°C to 60°C for demanding industrial environments. Includes 2 relays and an analog output for versatile signal interfacing.

Mounts easily on the panel front with an included rubber packing for IP65 protection. Complies with standards EN 61010-1, EN 61326-1, GOST R, and UL 508 for safety and electromagnetic compatibility. Maximum measurement voltage of 10 V with universal input and supply capabilities.

Multi-language help texts available for rapid deployment and user aid.
