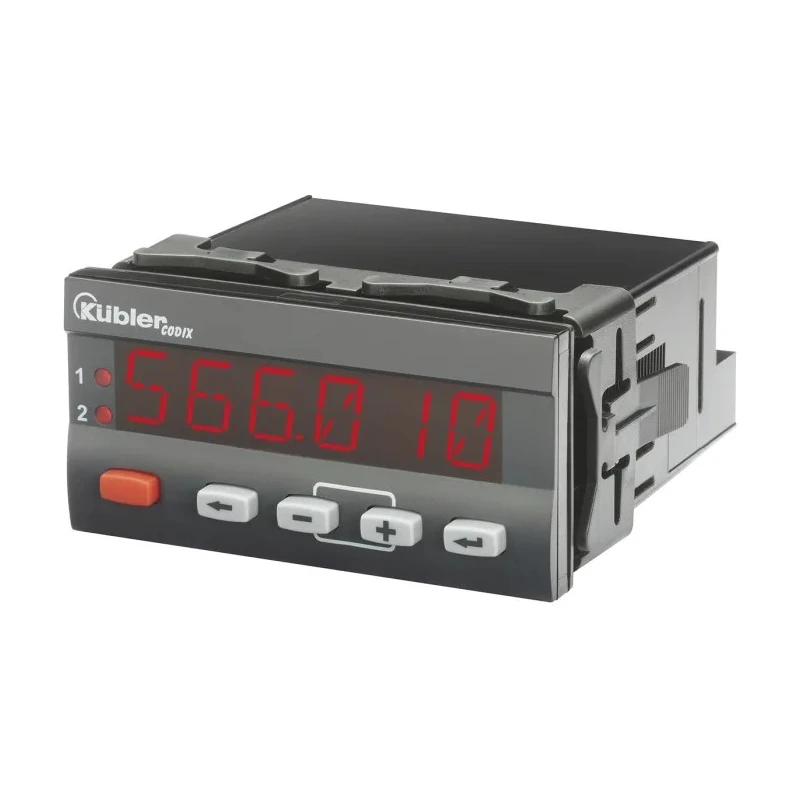

Kubler Digital Panel Multifunction Meter CODIX 566 Current LED Display 45 mm x 92 mm 6.566.010.000

Kubler 6.566.010.000 Digital Panel Multifunction Meter CODIX 566 is designed for precise current measurement in industrial automation and process control applications. It offers a high resolution 6-digit LED display with a digit height of 14 mm, providing clear visibility of measured values in a compact panel cutout size of 45 mm x 92 mm and a depth of 90.5 mm.

This multifunction meter supports all common strain-gauge inputs and includes a manual totaliser function that can be reset separately for cumulative monitoring tasks. Users benefit from two relay outputs with changeover contacts for limit value monitoring with hysteresis, plus ON/OFF delay functions suitable for controlling processes based on current measurement or totaliser values.

Programming is straightforward via four front keys and a quick-start guide enables efficient parameter setup. The meter operates over a broad supply voltage range of 10 to 30 Vdc or 90 to 260 Vac allowing flexible integration into various industrial power systems. It operates reliably within temperatures ranging from -20°C to +60°C and adheres to RoHS compliance standards, ensuring environmental safety.

A digital first-order filter enhances measurement stability by smoothing input signal fluctuations, making it suitable for environments with unstable inputs. Its sampling rate of 10 readings per second ensures timely and accurate data acquisition. The controller is tailored for industrial process control, instrumentation, manufacturing, and automation where precise current monitoring is critical.

The meter features a 6-digit LED display with 14-segment characters for clear readings. Manual totaliser functionality with separate reset is included. Two relay outputs provide limit monitoring with hysteresis and ON/OFF delay options.

Wide supply voltage compatibility (10 - 30 Vdc / 90 - 260 Vac) ensures versatile deployment. Operating temperature range from -20°C to 60°C suits industrial environments. Digital filter smooths unstable input signal fluctuations.

Sampling rate of 10 readings per second delivers real-time measurement accuracy. Simple user programming through front panel keys and quick-start guide. Complies with RoHS environmental standards and is made in Germany.

This Kubler CODIX 566 digital panel multifunction meter is expertly engineered for industrial automation and process control tasks demanding precise current measurement, monitoring, and control with robust functionality and ease of use. It integrates seamlessly into industrial control panels and instrumentation setups requiring high reliability and accuracy.
