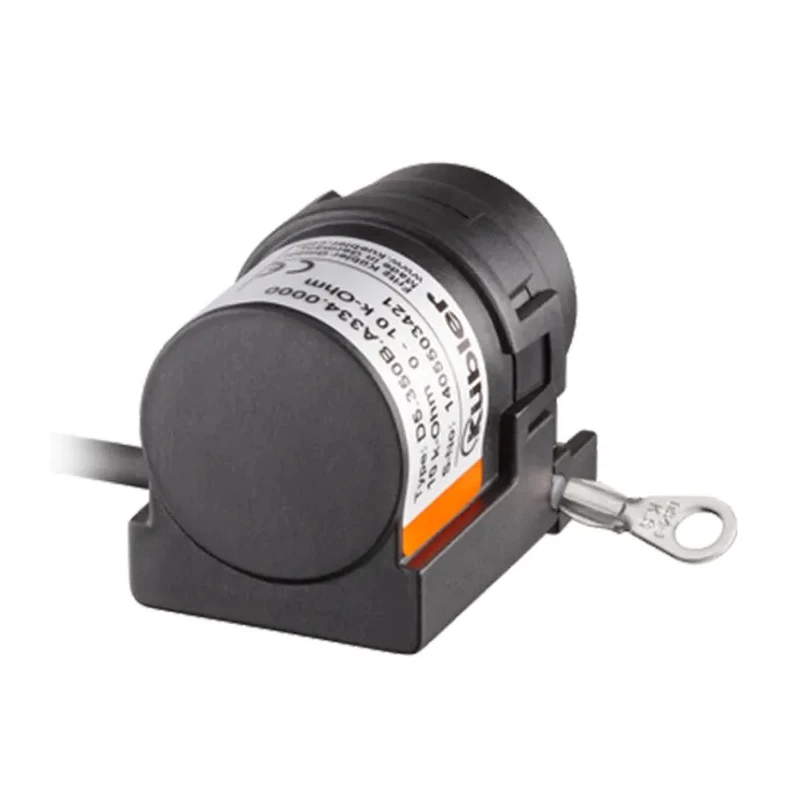

Kubler A30 Series Draw Wire Encoder 48V DC Miniaturized Design D5.350B.A334.0000

Kubler D5.350B.A334.0000 Draw Wire Encoder is a high-quality motion control sensor designed for precise measurement applications. This model features a miniaturized design with analogue output options including potentiometer, voltage, or current output, supporting versatile integration needs.

Operating at a maximum supply voltage of 48V DC and current rating of 15 mA, this encoder supports measuring lengths up to 600 mm with a compact construction of 40.7 mm depth, 32.45 mm height, and 28.6 mm width. Its radial cable connection type allows efficient, secure wiring suitable for industrial and automation setups.

Designed to withstand harsh outdoor environments, the D5.350B.A334.0000 operates reliably between -10°C and 80°C ambient temperatures and carries an IP50 ingress protection rating to mitigate dust ingress. The encoder is RoHS compliant, emphasizing Kubler's commitment to environmental and safety standards.

This draw wire encoder finds applications in industrial automation, manufacturing, laboratory instrumentation, and HVAC systems where precise length measurement and control are critical for performance and reliability.

Includes radial cable connection type ensuring reliable connectivity. Capable of measuring length up to 600 mm for precise motion control. Wide operating temperature range from -10°C to 80°C suitable for various environments.

Designed for outdoor applications, rated IP50 for protection against dust. Compact dimensions with overall depth 40.7 mm, height 32.45 mm, and width 28.6 mm. Complies with RoHS standards ensuring environmentally safe manufacturing.

This Kubler A30 series draw wire encoder provides reliable, precise measurements in a compact form factor, ideal for industrial, laboratory, and automation applications. Explore more sensors and control gear in EnvMart’s Electronics & Electricals category.
