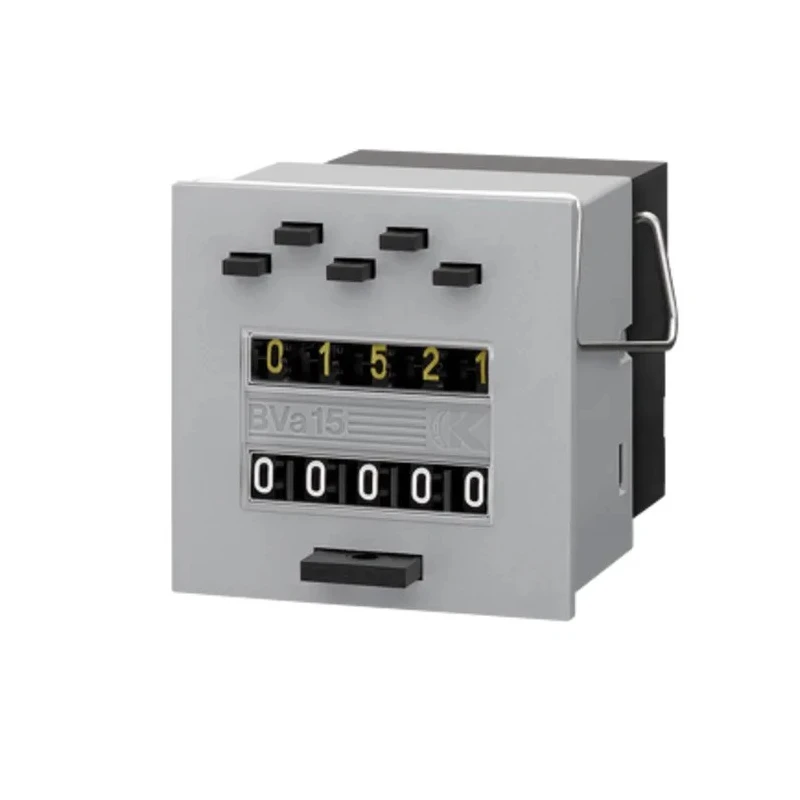

Kubler BVa 15.21 5 Digit Analogue Counter, Impulse Count Mode, Panel Mount, 24V, 25Hz 2.100.211.033

Kubler 2.100.211.033 is a 5-digit analogue impulse counter designed primarily for industrial automation and batch counting applications. It features an adding preset counter with a fixed preset and offers manual zeroing for precise operational control. The preset is permanently visible and adjustable during counting, with a volt-free changeover microswitch activating upon reaching the preset.

This counter is mounted on panels using a moulded front frame measuring 53 mm² and a tensioning clamp, requiring a panel cutout size of 50 x 50 mm. The device supports a maximum supply voltage of 24 V and can count up to 25 Hz, making it suitable for moderate frequency counting tasks.

Ideal for factory automation and other industrial processes, the product ensures robust performance within an operating temperature range of -10°C to 55°C. The electromechanical construction features a push-on connection type and provides an analogue display with easy readability, having digits of 4.5 mm height.

The meter’s depth is 62.5 mm and it weighs approximately 130 grams, facilitating lightweight and compact installation. Certified with CE standards and manufactured in Germany, the Kubler BVa 15.21 ensures quality and reliability in demanding industrial environments.

5-digit adding preset counter with fixed preset functionality. Manual reset with easy zeroing for accurate counting cycles. Impulse counting mode with analogue display for clear visibility. Panel mount design with precise cutout requirements.

Suitable for batch counting and factory automation applications. Operates reliably between -10°C and 55°C ambient temperatures. Robust electromechanical design with push-on connection type. Compact and lightweight with a depth of 62.5 mm and weight of 130 g.

CE approved and manufactured in Germany.

This product is an excellent choice for integration into automation and control systems requiring a durable and precise counting solution. Browse more Counters and Automation components in the Electronics & Electricals category at EnvMart for complementary industrial products.
