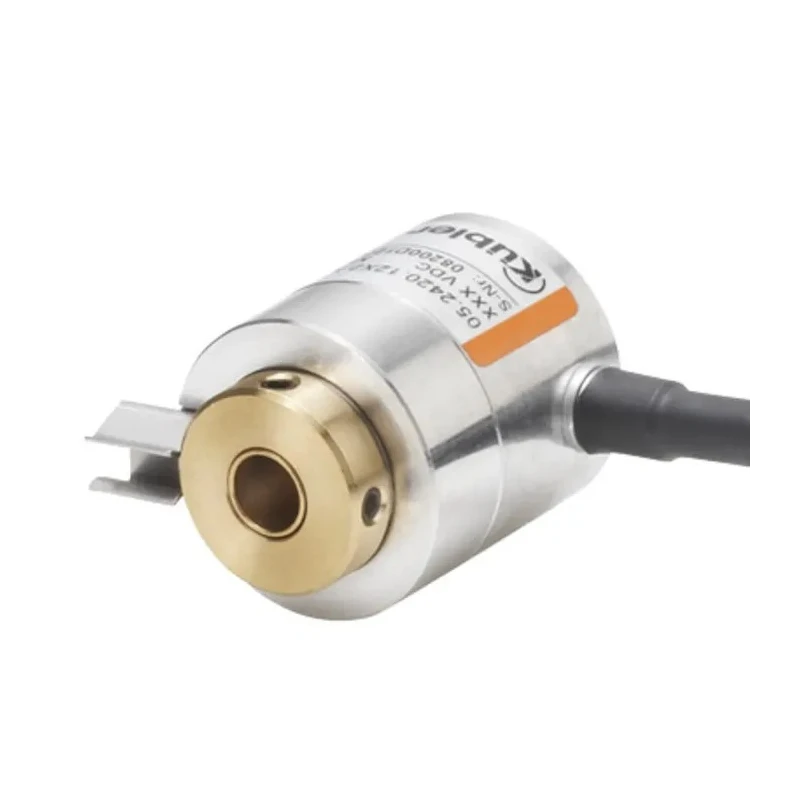

Kubler 2420 Series Incremental Miniature Rotary Encoder 30V DC 05.2420.1242.0500

Kubler 05.2420.1242.0500 Incremental Miniature Rotary Encoder is engineered for high precision motion control in industrial and automation applications. The encoder features advanced optical sensor technology delivering a resolution of up to 1024 pulses per revolution, enabling accurate position tracking and speed measurement.

Measuring only 24 mm in diameter and 30.5 mm in height, it is ideal for installation where space constraints exist. The robust bearing construction promotes durability for long-term continuous usage, while the cable outlet includes enhanced strain relief through multiple clamping mechanisms to protect wiring integrity in demanding environments.

The device offers short-circuit proof outputs that safeguard connected systems and ensure operational reliability. With IP ratings of IP50, IP64, and IP65, the encoder is suited for various environmental conditions, including dust and splash protection.

Operating at a maximum supply voltage of 30V DC and capable of function up to 85°C, it meets a wide range of application requirements. The product complies with cULus standards and is manufactured in Germany, ensuring adherence to high-quality and safety norms.

Applications for this rotary encoder include use in industrial automation systems, robotics, laboratory instrumentation, manufacturing equipment, and other motion control scenarios demanding compact size and precision.

Features optical sensor technology with resolution up to 1024 pulses per revolution. Compact 24 mm diameter allows installation in tight spaces. Robust bearing construction ensures device reliability. Cable outlet with high degree of strain relief via multiple clamping.

Short-circuit proof outputs safeguard connected electronics. Suitable for integration in small devices needing precise feedback. Maximum supply voltage of 30V DC supports flexible power configurations. IP ratings IP50, IP64, and IP65 provide dust and splash resistance.

Operating temperature range up to 85°C for demanding environments. Manufactured in Germany with recognized cULus certifications. Explore Kubler Rotary Encoders at EnvMart for reliable industrial sensor solutions suited to a variety of control and automation purposes.
