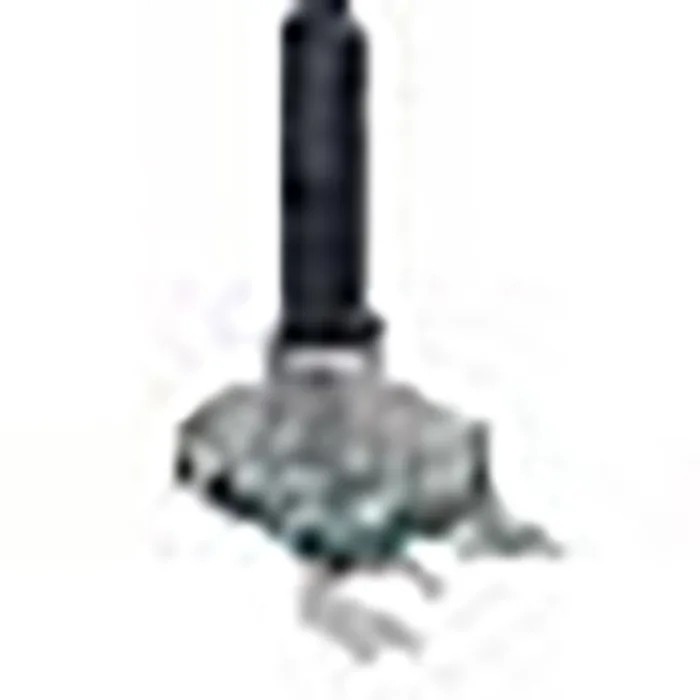

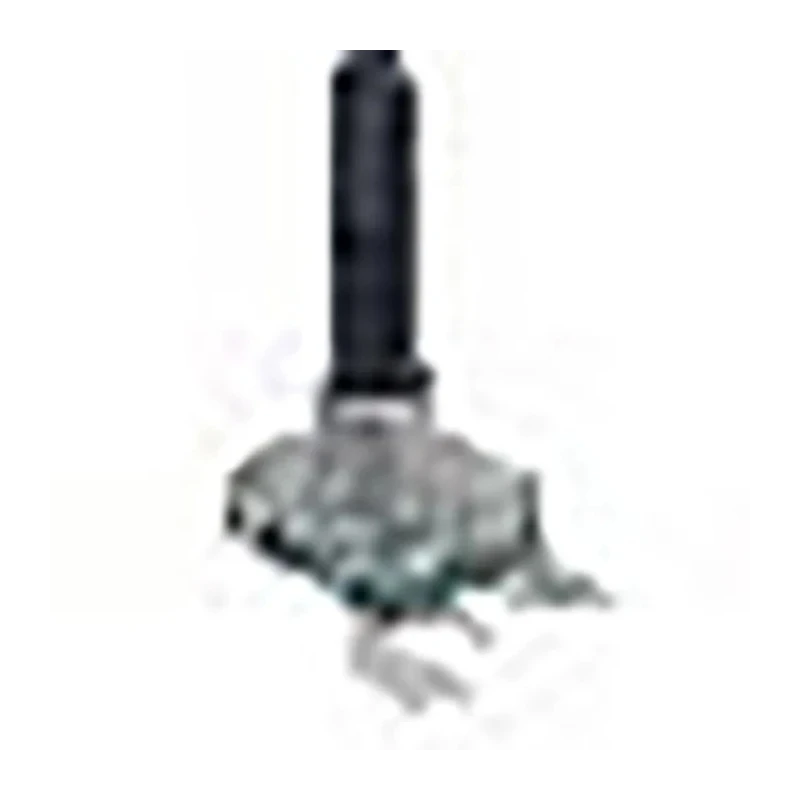

Bourns PEC16 Series Incremental Rotary Encoder 5V dc, 24 PPR, Quadrature Output, Solid 6 mm Shaft PEC16

Bourns PEC16 Series Incremental Rotary Encoder PEC16 is engineered for accurate rotational position and speed sensing in industrial and automation systems. Operating at 5V DC supply with a quadrature output signal, it produces 24 pulses per revolution, enabling precise control feedback.

The encoder features a solid shaft type with a 6 mm diameter and offers a compact design with overall dimensions of 31.5 mm depth, 17.7 mm height, and 16 mm width, facilitating easy panel mounting. It supports a maximum rotational speed of 100 rpm and operates reliably within a temperature range of -30°C to 70°C.

Its IP40 ingress protection rating ensures dust prevention suitable for many industrial environments. The device uses PCB terminal connections and aligns with RoHS directives for environmental compliance. The low cost and high reliability make it an excellent alternative to optical encoders.

This rotary encoder is suitable for various industrial applications such as automation, motion control, manufacturing, and laboratory equipment where precise rotational measurement is critical. The sturdy solid shaft design and panel mount enable straightforward mechanical integration in control systems.

Incremental encoder technology for accurate position feedback. 24 pulses per revolution for fine measurement resolution. Quadrature output signal supports direction detection. Solid 6 mm diameter shaft offers mechanical robustness.

Compact, panel-mounted design with easy termination via PCB terminals. Wide operating temperature range from -30°C to 70°C. IP40 rating provides dust protection for industrial use. Low cost, reliable alternative to optical encoders.

Compliance with RoHS standards. Explore EnvMart’s Electronics & Electricals > Sensors > Rotary Encoder category for a wide range of Rotary Encoder options and accessories from leading brands.
