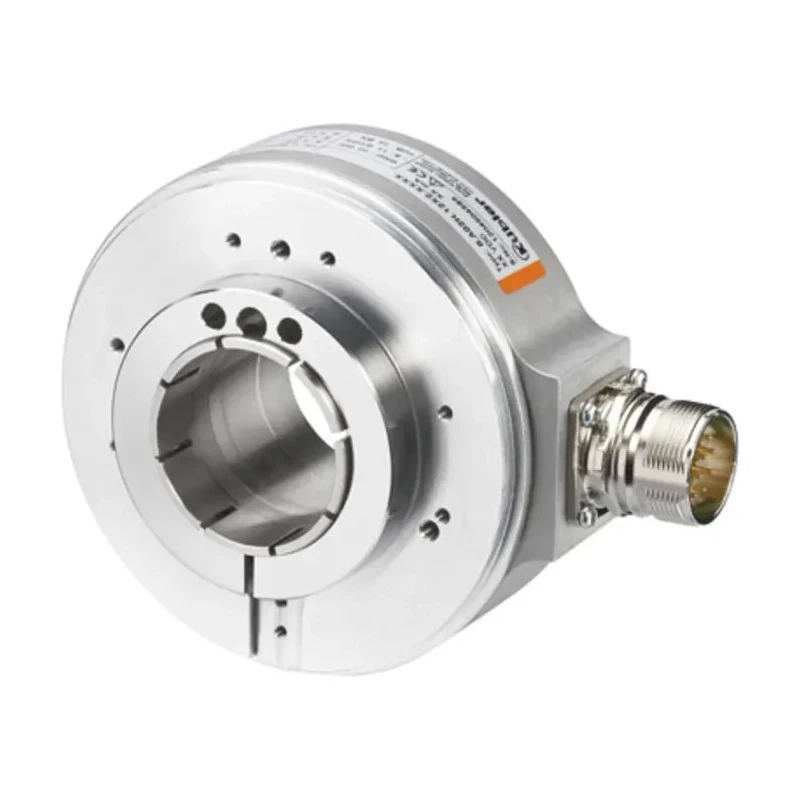

Kubler Heavy Duty Compact Rotary Encoder A02H Series Push Pull Interface 30V 8.A02H.5231.5000

Kubler 8.A02H.5231.5000 rotary encoder from the A02H series offers a heavy duty and highly compact design, making it suitable for motion control applications in industrial automation and harsh environments. It features a robust construction with a maximum supply voltage of 30V and Push Pull interface type.

This encoder is engineered for reliability, incorporating special shaft connection with interlocked bearings and a balanced stainless steel clamping ring to ensure secure operation. Optional isolation inserts are available to protect against damaging shaft currents.

Its compact form factor with only 49 mm installation depth and overall dimensions of 50 mm depth, 100 mm height, and 129.8 mm width allow integration into space-constrained setups. Cable connections are versatile, supporting M12, M23, and MIL connectors.

Rated at IP65, the device is protected against dust ingress and water jets, suitable for demanding industrial environments. It can operate reliably at temperatures up to 80°C, fulfilling requirements for heavy machinery, construction equipment, and manufacturing automation.

The encoder is robust and heavy duty for harsh operational conditions. Special shaft connection with interlocked bearings enhances shaft stability. Balanced stainless steel clamping ring ensures secure mounting. Optional isolation inserts protect against shaft currents.

Compact design with only 49 mm installation depth saves space. Cable connections via M12, M23 or MIL connectors provide flexibility. Push Pull interface type allows reliable signal transmission. IP65 protection rating ensures dust and water resistance.

Maximum operating temperature of 80°C allows use in tough environments. Manufactured in Germany with cULus approvals for quality assurance.

This rotary encoder is ideal for industrial, manufacturing, automation, and motion control sensor applications requiring a compact, reliable, and robust device. Explore the full range of Kubler A02H series Rotary Encoders at EnvMart for your industrial sensor requirements.
