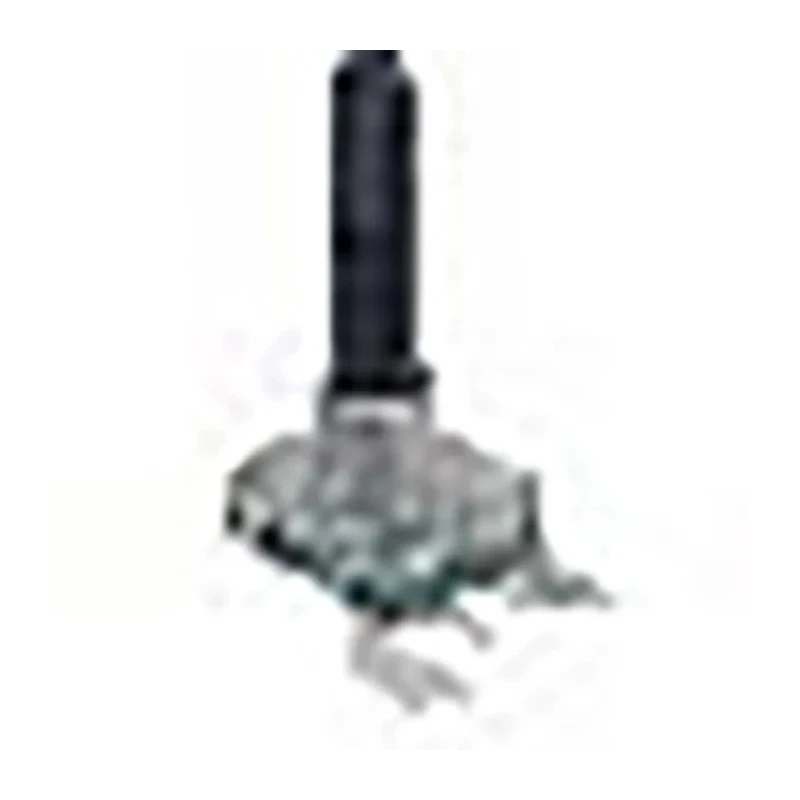

Bourns Incremental Rotary Encoder 5V DC, 24 PPR, Quadrature Signal, Solid Shaft 6 mm, Panel Mount PEC16

Bourns PEC16 incremental Rotary Encoder is engineered to offer precise position and speed feedback for motion control applications. Designed with a solid 6 mm shaft and panel mount style, it supports a wide range of industrial, automation, and electrical uses.

This encoder operates at 5V DC supply voltage and provides 24 pulses per revolution (PPR) with quadrature output signals, allowing accurate measurement of rotational movement and direction. Its compact size with dimensions of 31.5 mm depth, 17.7 mm height, and 16 mm width facilitates easy integration in tight spaces.

Built to endure a temperature range from -30°C to 70°C, it suits harsh environments while the IP40 ingress protection rating shields it from dust. The robust design ensures long life and reliable performance at speeds up to 100 RPM.

The PEC16 series is RoHS compliant, supporting sustainable production practices. This incremental encoder is widely utilized in industrial automation systems, laboratory instrumentation, HVAC equipment, and manufacturing process control.

Features 24 pulses per revolution for precise rotary position feedback. Solid 6 mm shaft supports robust mechanical coupling. Quadrature output signal enhances direction detection accuracy. Panel mount configuration for stable and secure installation.

Operates reliably between -30°C and 70°C ambient temperatures. Encased to IP40 rating for basic protection against dust ingress. Compact dimensions with 31.5 mm depth, 17.7 mm height, and 16 mm width. Lightweight design with long operational life and high reliability.

RoHS compliant ensuring environmentally safe manufacturing standards.

This Bourns encoder model PEC16 provides cost-effective and reliable incremental rotary position feedback for diverse industrial and automated applications. Explore more sensors and motion control devices at EnvMart.
