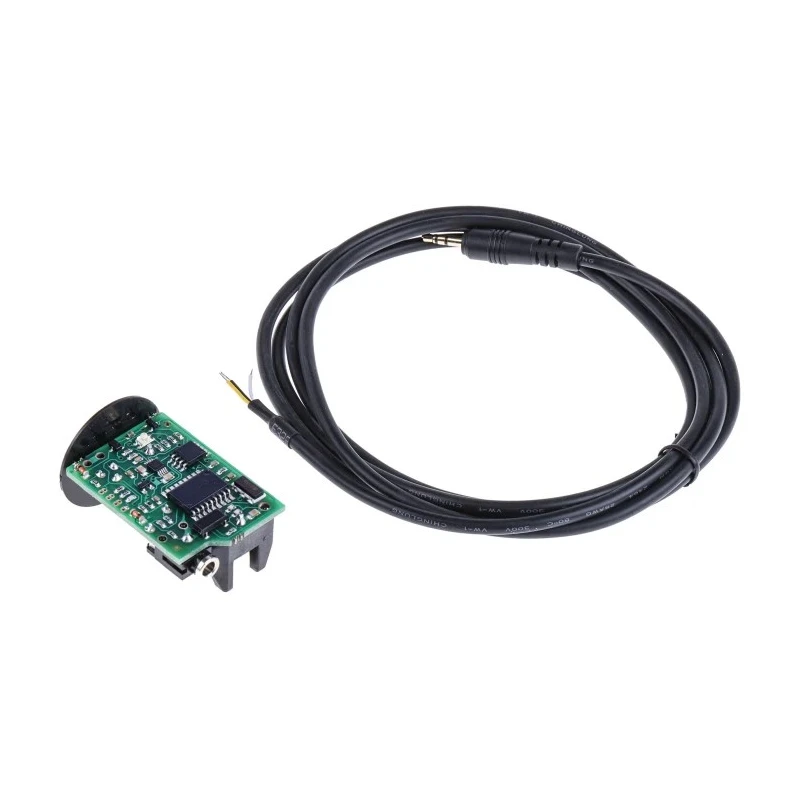

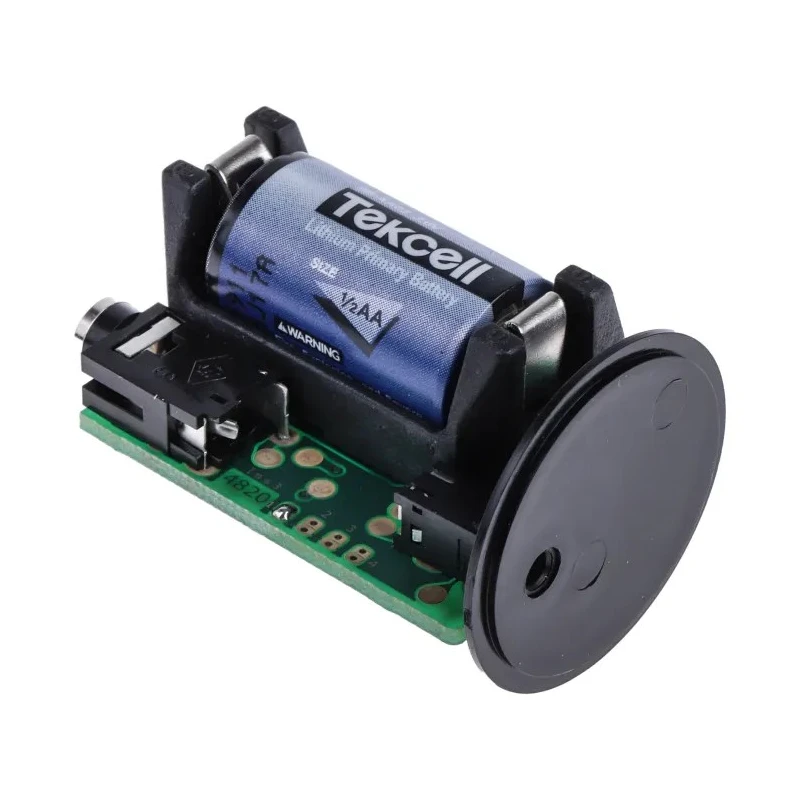

Gemini Voltage Data Logger, USB and Serial Interface, 1 Channel, Accuracy ±0.2%, Battery Powered TK-4702-PK-RS
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Accuracy | ±0.2 % |
| Brand | Gemini |
| Battery Life | 2year |
| Battery type | AA |
| Length | 54mm |
| Model | TK-4702-PK-RS |
| IP Rating | IP30 |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB cable to a PC |
| Number Of Channels | 1 |
| Measurement Parameters | Voltage |
| Interface Type | USB, Serial |
| Standards/Approvals | CE |
| Number of Readings per Channel | 16000 |
| Service pack is available separately to maintain the unit | contains replacement battery, desiccant pack and a service instruction sheet |
| MINIATURE LOGGER VBrand | NEUTRAL |
| Tinytag TK-0702 Data Logger, CAB-0005 CableBrand | Gemini |
Key Features
- Offers high accuracy of ±0.2% for reliable voltage data logging.
- Features a single measurement channel dedicated to voltage recording.
- Supports USB and serial communication interfaces for fast data transfer.
- Equipped with an AA battery providing up to 2 years of operation.
- Compact design measuring only 54mm in length for easy deployment.
- Operates effectively within a temperature range of -40°C to 85°C.
- IP30 rated housing protects the device from environmental factors.
- Includes programmable alarms and low battery monitoring for maintenance alerts.
Product Description
Gemini TK-4702-PK-RS is a compact and lightweight voltage data logger specifically designed for accurate voltage measurement and recording in industrial, laboratory, and environmental monitoring applications. Its single channel capability enables focused data acquisition with a high accuracy of ±0.2%. The device operates on an AA battery, which is user-replaceable and offers up to two years of battery life, complemented by a low battery monitor to ensure continuous operation.
The logger features USB and serial interfaces for flexible and fast data downloading to a PC using the Tinytag Explorer software. Its IP30 rated enclosure provides protection against solid objects, making it suitable for indoor environments. The operating temperature range from -40°C to 85°C allows for use in various climates and conditions.
Additional functionalities include programmable alarms and multiple stop options such as stopping when full, wrap-around, or after a specified number of readings. This facilitates customization for different data logging scenarios. The compact size of 54mm length ensures easy installation and transport.
This product is CE certified, confirming compliance with European safety and performance standards. It is designed for long-term monitoring in applications such as environmental research, fridge monitoring, building condition assessment, educational labs, and scientific studies.
High accuracy voltage measurement with ±0.2% accuracy. Single channel data logging for focused voltage tracking. USB and serial ports for versatile data connectivity. Battery-powered with AA battery, lasting up to 2 years.
Compact form factor measuring 54mm for ease of use. Wide operating temperature range from -40°C to 85°C. IP30 enclosure rating suitable for indoor use. Programmable alarms and multiple stop options for operational flexibility.
CE certification ensures product safety and reliability.
Package includes one Gemini TK-4702-PK-RS voltage data logger with USB and serial interface, and a 1/2 AA lithium battery pre-installed. A separate service pack is available for battery replacement and maintenance including desiccant and instructions.
Ideal for industrial, laboratory, and research environments requiring accurate voltage monitoring and data acquisition. Explore more Data Loggers and measurement instruments at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has an accuracy of ±0.2%.
The maximum operating temperature is 85°C.
This model features USB and serial interfaces for data transfer.
It measures 54mm in length.
It supports a single measurement channel dedicated to voltage recording.
The device has an IP30 rating, suitable for indoor use.
Yes, it includes programmable alarms and low battery monitoring for maintenance alerts.
The minimum operating temperature is -40°C.
Yes, a separate service pack is available that includes a replacement battery, desiccant, and maintenance instructions.
