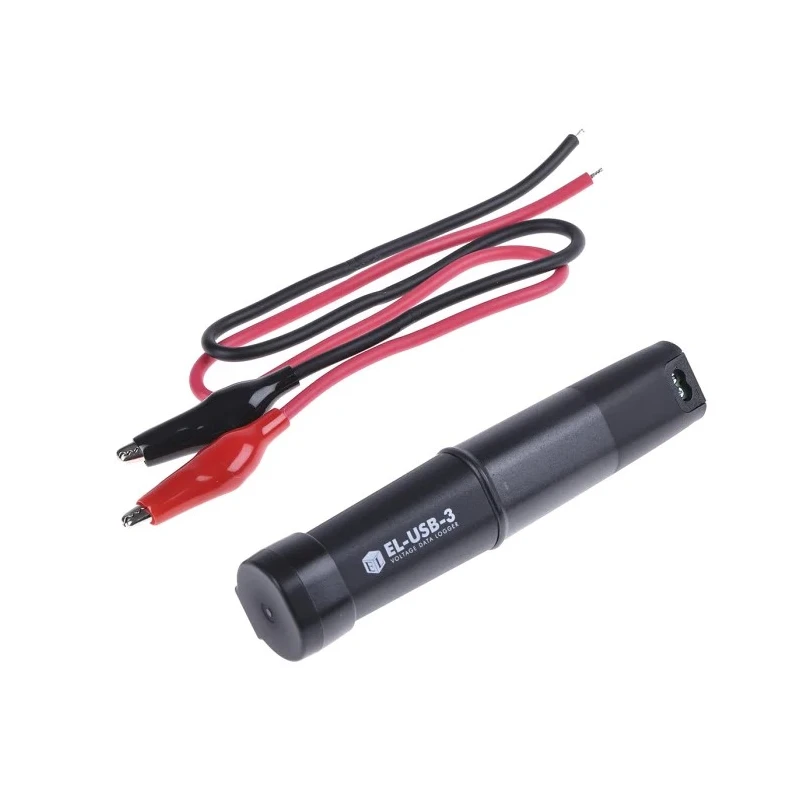

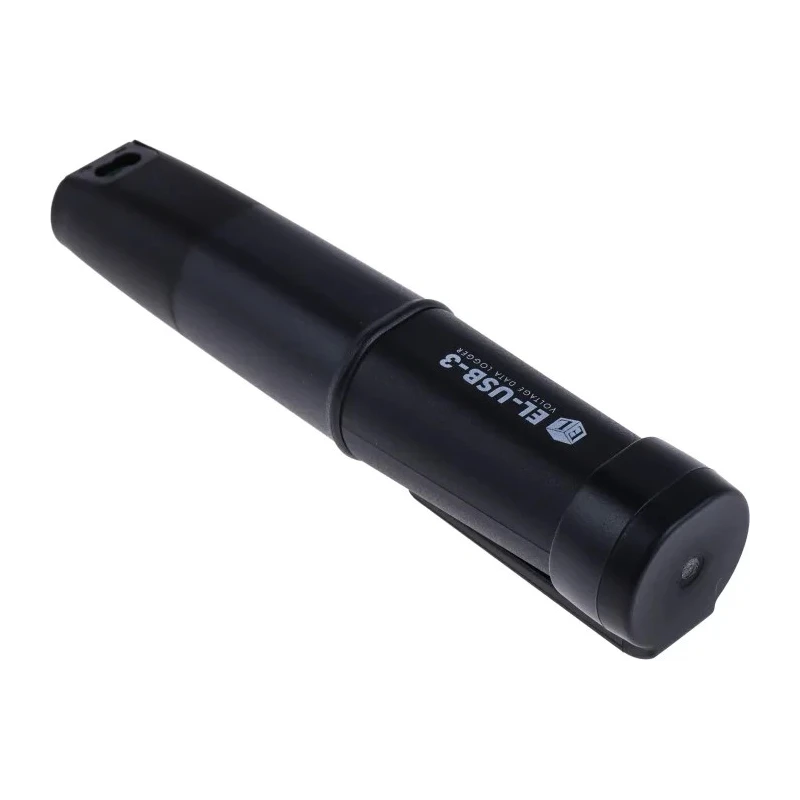

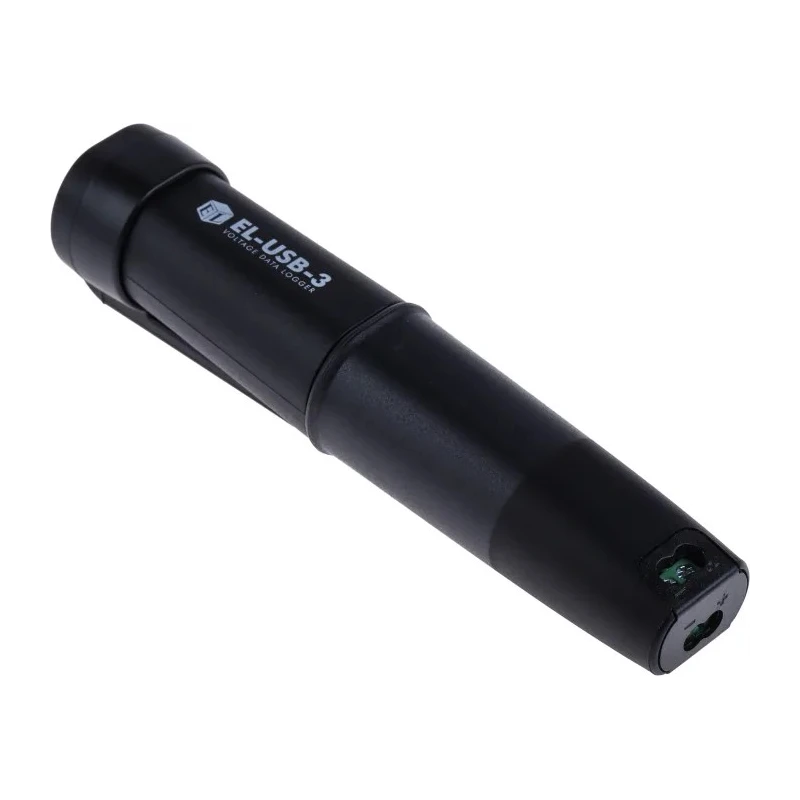

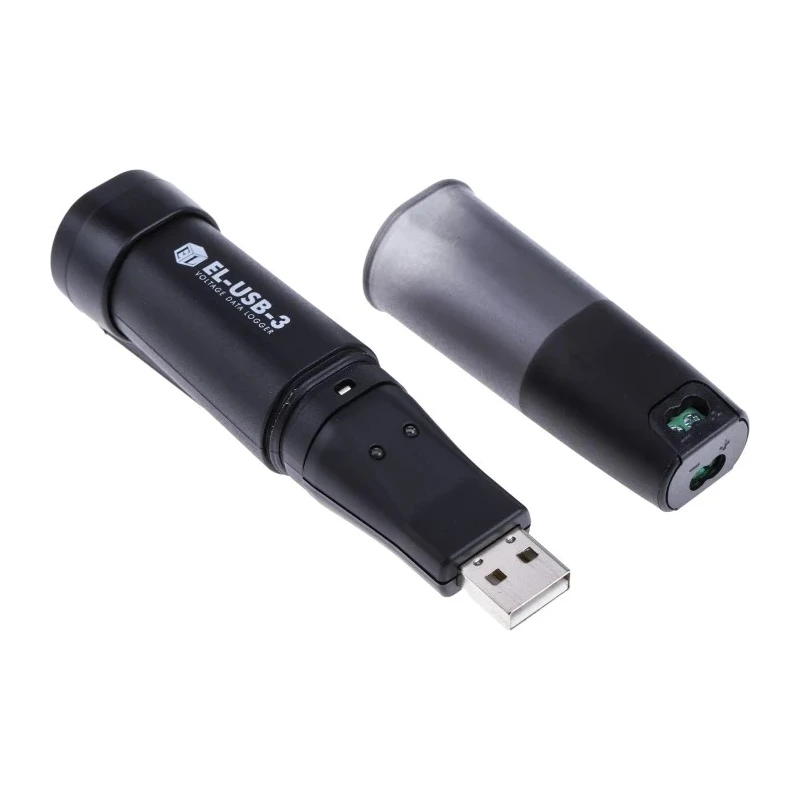

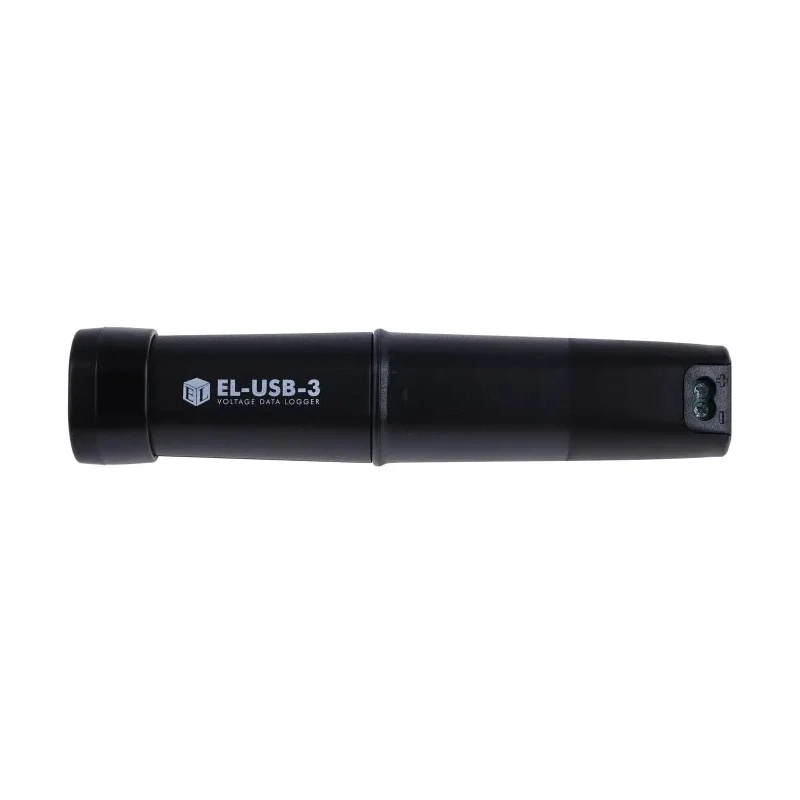

Lascar Voltage Data Logger USB Interface, ±1% Accuracy, 0-30 V DC Range EL-USB-3

Free Delivery in India | Lowest Global Shipping Charges

Lascar Voltage Data Logger USB Interface, ±1% Accuracy, 0-30 V DC Range EL-USB-3

Name: Lascar Voltage Data Logger USB Interface, ±1% Accuracy, 0-30 V DC Range EL-USB-3
Brand: Lascar
SKU: 415801
Price: 20.22 USD
Availability: InStock



Category Data Logger Brand Lascar Condition New

Specifications

Country of Origin	China
Accuracy	±1 %
Display Type	LCD
Brand	Lascar
Battery Life	3year
Battery type	AA
Length	98mm
Model	EL-USB-3
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-35°C
Number Of Channels	1
Measurement Parameters	Voltage
Interface Type	USB
Number of Readings per Channel	32510
Lascar EL-2 Data Logger, SerialBrand	Lascar

Key Features

The device measures voltage within a 0 to 30 V DC range with ±1% accuracy.
It features a single measurement channel and an LCD display for clear readings.
Data is stored via USB interface with more than 32,000 readings capacity per channel.
Programmable logging intervals range between 1 second and 12 hours to suit various monitoring needs.
Equipped with user-programmable alarms and red/green LED status indication for immediate alerts.
Operates effectively in a temperature range of -35°C to 80°C, suitable for harsh environments.
Powered by an AA battery with an expected life of around 3 years, ensuring long-term deployment.
Compact length of 98 mm enables easy installation and portability.

Product Description

Lascar EL-USB-3 Voltage Data Logger USB Interface is a versatile and precise standalone data logger designed to monitor and record voltage from power supplies, sensors, and other electrical sources. It measures within a 0 to 30 V DC range at a resolution of 50 mV and an accuracy of ±1%, making it suitable for industrial, environmental, and facilities management applications.

The logger supports a single channel and stores over 32,000 readings per channel, which can be downloaded via a USB interface for analysis. Users can configure logging rates from as fast as 1 second up to 12 hours, facilitating flexibility for short-term or long-term monitoring tasks.

It features an LCD display for ease of use, along with programmable alarm thresholds visible through red and green LEDs to signal voltage levels outside preset ranges. The device operates reliably in a wide temperature field from -35°C to 80°C, making it well-suited to demanding environments and outdoor usage. The battery-powered design provides an approximate battery life of 3 years under typical use.

The device measures and logs voltage from 0 to 30 V DC with ±1% accuracy. It stores more than 32,000 readings per channel for comprehensive data capture. Flexible logging rates from 1 second to 12 hours accommodate diverse monitoring needs.

User-programmable alarm thresholds ensure timely notifications of voltage excursions. Clear LED indicators and LCD display aid in straightforward operation and status monitoring. Wide operating temperature range from -35°C to 80°C enables use in varied environments.

Powered by an AA battery with a 3-year lifespan that supports extended deployment. Compact and lightweight design with a length of 98 mm facilitates easy installation. Supplied with a 1/2 AA battery and wall mount clip for rapid setup.

This Lascar EL-USB-3 data logger is ideal for industrial process control, environmental monitoring, facilities management, manufacturing, and laboratory use. Its ability to precisely capture voltage data with long-term battery life and straightforward USB connectivity enables efficient data acquisition and analysis workflows.
