Sefram Multi Purpose Data Logger with Ethernet, USB, WiFi, 10 Channel, 16 Bit Resolution LCD Display DAS220

Free Delivery in India | Lowest Global Shipping Charges

Sefram Multi Purpose Data Logger with Ethernet, USB, WiFi, 10 Channel, 16 Bit Resolution LCD Display DAS220

Name: Sefram Multi Purpose Data Logger with Ethernet, USB, WiFi, 10 Channel, 16 Bit Resolution LCD Display DAS220
Brand: Sefram
SKU: 417353
Price: 3082.16 USD
Availability: InStock



Category Data Logger Brand Sefram Condition New

Specifications

Country of Origin	France
Resolution	16 bit
Accuracy	0.1 %, 0.3 °C
Voltage	from 1mV to 200V (±100V)
Display Type	LCD
Display	10" TFT panoramic touch screen
Brand	Sefram
Battery type	Lithium
Height	210mm
Length	295mm
Model	DAS220
Temperature	thermocouples (all types), Pt100-1000 (2 or 3 wires)
Width	105mm
Input	voltage, thermocouple, Pt100-1000, current (with optional adapter), resistance
Included	main adaptor 100/240V, manual (CD-ROM), 1 male connector with 25 pins mâle and cover, connectors, a stylus, a soft wipe, a screwdriver
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Interfaces	2xUSB, Ethernet, Wifi (option)
Number Of Channels	10
Measurement Parameters	Temperature, Resistance, Voltage
Interface Type	Ethernet, USB, WiFi
Max sampling rate	1ms (1kHz)
Internal hard drive	32 GB
Lithium-ion battery (factory option)	15h autonomy
Voltage and Current Measurements	Capture data from ±0.5 mV to ±100 V and 4-20 mA current loops
Temperature Logging	Use thermocouples and RTDs for accurate temperature measurements

Key Features

Equipped with 10 analogue channels supporting voltage, thermocouple, Pt100-1000 sensors, and current measurement with optional adapter.
Features a 10-inch TFT panoramic touch screen LCD providing clear 16 bit resolution data visualization.
Supports Ethernet, USB, and optional WiFi connectivity for flexible data transfer.
Includes an internal 32 GB hard drive for extensive data storage and a lithium-ion battery option for up to 15 hours autonomy.
Applications include temperature logging, voltage/current measurement, frequency and pulse monitoring, suitable for industrial and laboratory environments.
Includes 12 logical channels and 4 alarm outputs for comprehensive monitoring and control.
Operates within 0°C to 40°C temperature range, suitable for various industrial conditions.
Captures voltage from 1 mV to 200 V (±100 V) and supports thermocouples of all types.

Product Description

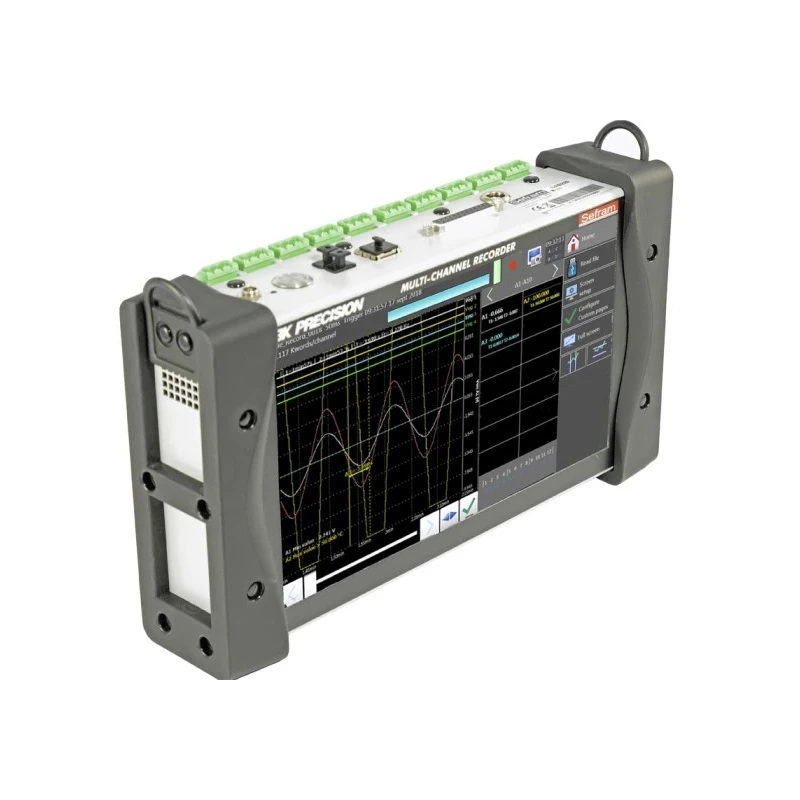

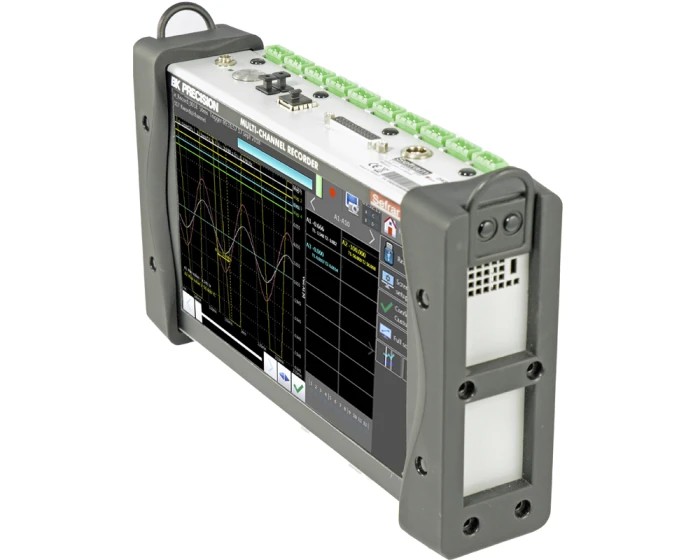

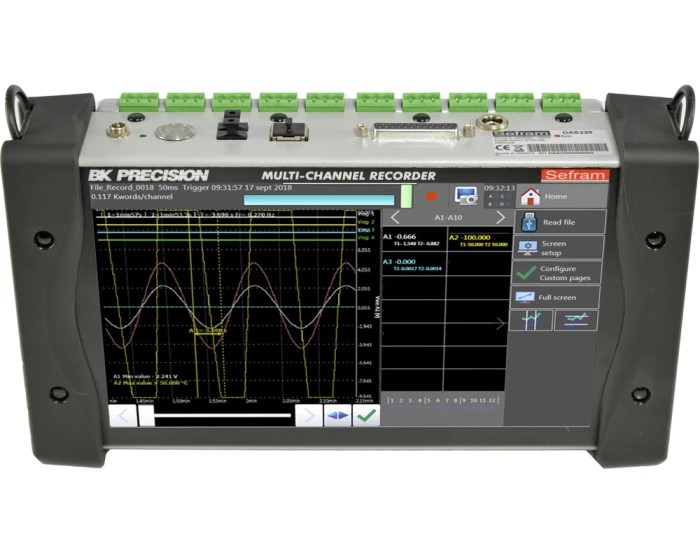

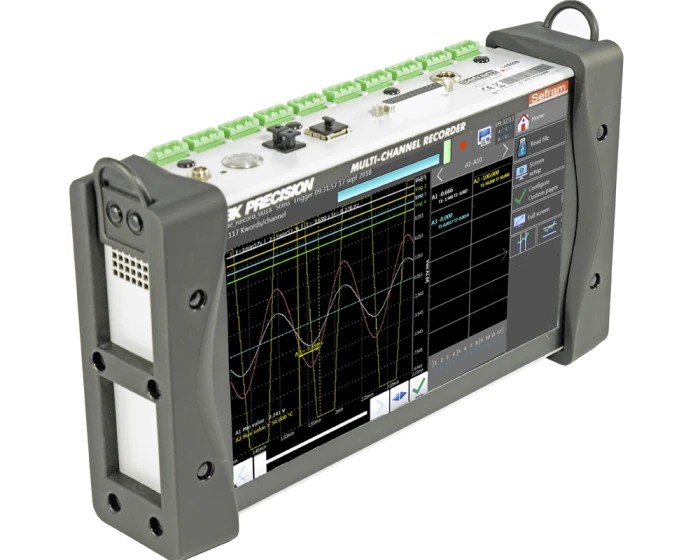

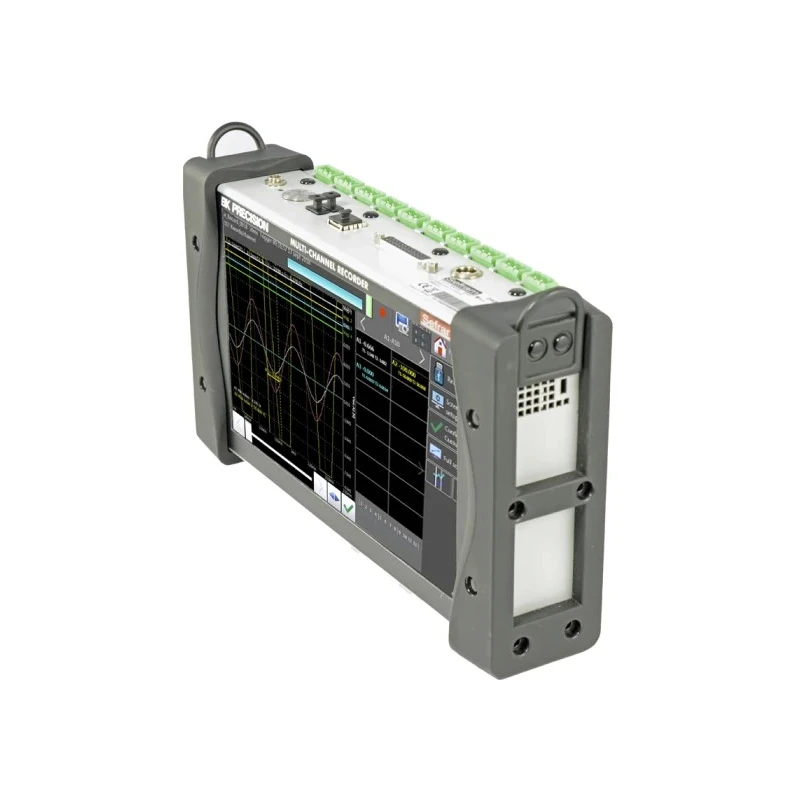

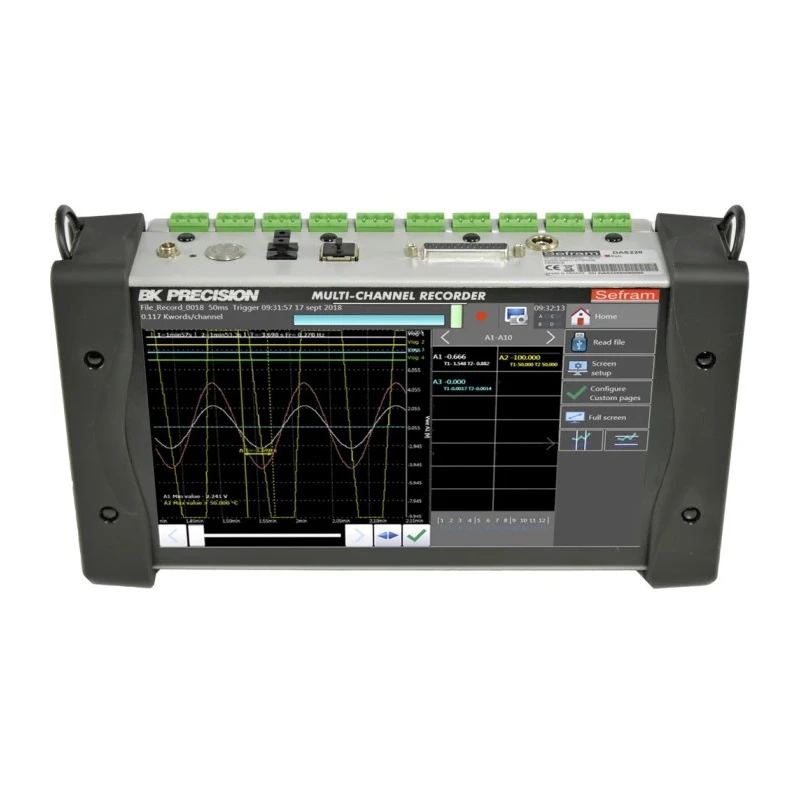

Sefram DAS220 Multi Purpose Data Logger DAS220 is a precision 10-channel data acquisition recorder featuring Ethernet, USB, and optional WiFi connectivity. Designed for professional measurement of voltage, temperature, resistance, current, frequency, and pulse parameters, it offers 16 bit resolution and a 10-inch TFT touch screen LCD for easy operation.

This data logger supports analogue inputs such as voltage ranges from 1 mV to 200 V (±100 V), thermocouples of all types, Pt100-1000 sensors (2 or 3 wire), and current measurement via an optional adapter. It operates within 0°C to 40°C, making it ideal for various industrial and laboratory settings.

The DAS220 features an internal 32 GB hard drive for substantial data storage and a lithium-ion battery factory option providing 15 hours of autonomy, allowing flexible deployment. It also includes 12 logical channels, 4 alarms, 4 logical function inputs with counter and frequency meter capabilities, enhancing its versatility.

Applications of the DAS220 include accurate temperature logging using thermocouples and RTDs, voltage and current monitoring capable of capturing ±0.5 mV to ±100 V and 4-20 mA current loops, and pulse frequency monitoring for rotation and totalisation, expressed in RPM.

Equipped with 10 analogue input channels and 12 logical channels optimized for complex measurement environments. Data interfaces include 2 USB ports, Ethernet, and WiFi options for seamless connectivity. Incorporates a lithium-ion battery providing up to 15 hours of autonomous operation.

Includes comprehensive alarm system supporting 4 alarms and logical function inputs with advanced frequency measurement capabilities. Compact dimensions of 295 mm length, 210 mm height, and 105 mm width, rated for operation between 0°C and 40°C.

Set contents include the main adaptor (100/240V), a manual on CD-ROM, a 25-pin male connector with cover, connectors, a stylus, a soft wipe, and a screwdriver. This kit equips professionals in industrial, laboratory, HVAC, and manufacturing sectors with a reliable multi-parameter data logging solution.

Explore Sefram professional Data Loggers and related measuring instruments in EnvMart’s extensive industrial catalog to find accurate solutions for your data acquisition needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It can capture voltage measurements from 1 mV to 200 V (±100 V).

This model supports 10 analogue channels for various measurements.

It supports thermocouples of all types and Pt100-1000 sensors (2 or 3 wire).

It features a resolution of 16 bit for accurate data visualization.

It operates within a temperature range of 0°C to 40°C.

It includes Ethernet, USB, and optional WiFi connectivity for flexible data transfer.

The maximum sampling rate is 1 ms (1 kHz).

It has compact dimensions of 295 mm in length, 210 mm in height, and 105 mm in width.

It can measure temperature, resistance, voltage, and current (with an optional adapter).

Included accessories are a main adaptor (100/240V), a manual on CD-ROM, a 25-pin male connector with cover, connectors, a stylus, a soft wipe, and a screwdriver.

The lithium-ion battery option provides up to 15 hours of autonomy.

The accuracy is specified as 0.1% and 0.3 °C for temperature measurements.
