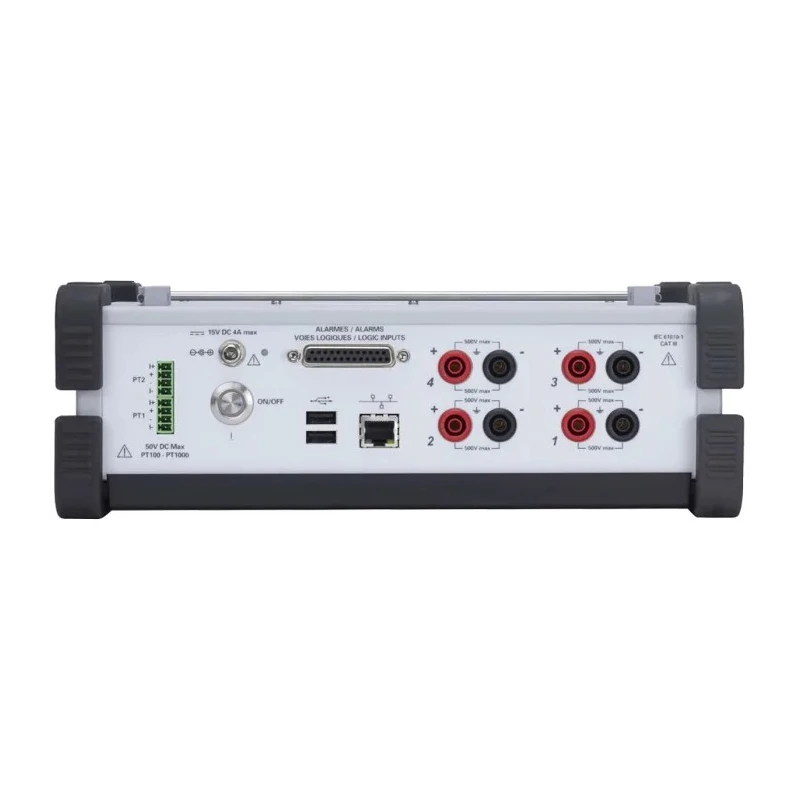

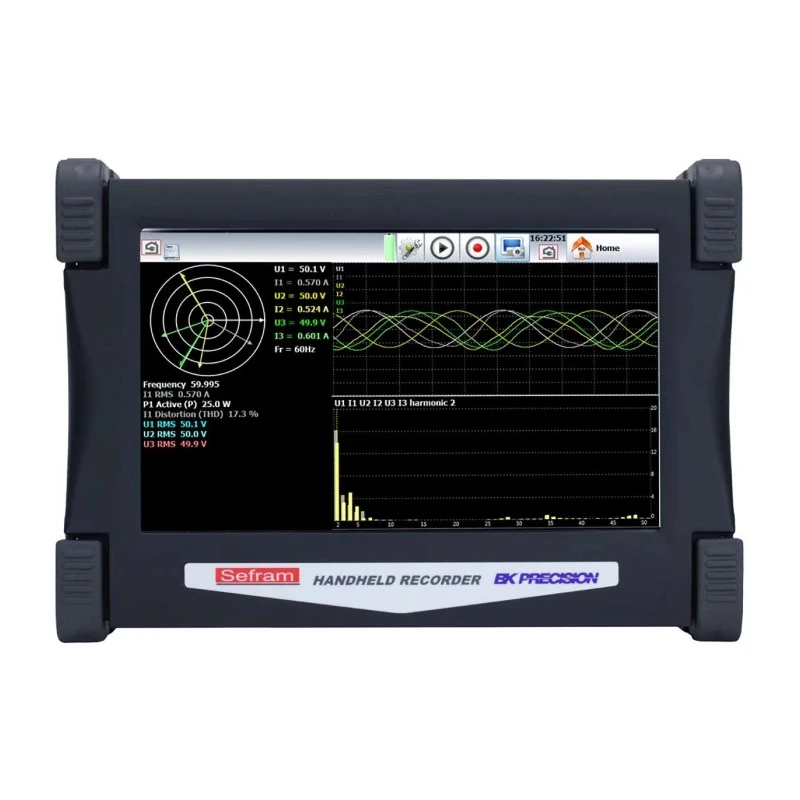

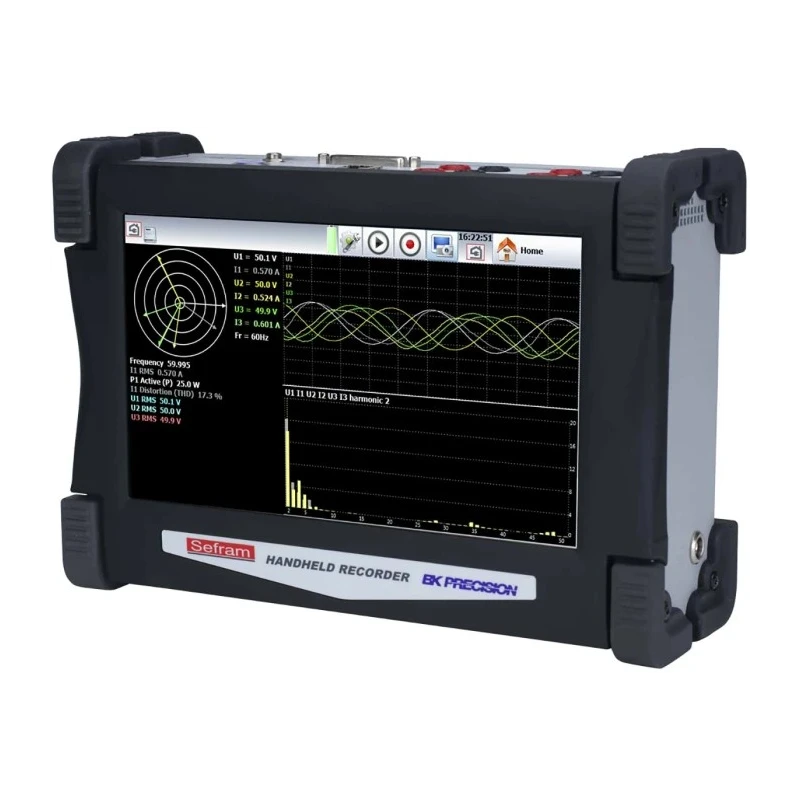

Sefram Data Acquisition System 4-Channel USB Ethernet 1 Msps 14 bit DAS50PTZ
Specifications
| Country of Origin | France |
|---|---|
| Resolution | 14 bit |
| Display | 10" TFT panoramic LCD touch screen |
| Brand | Sefram |
| Battery Life | 9h |
| Battery type | Lithium-ion |
| Height | 105mm |
| Length | 295mm |
| Connectivity | USB, Ethernet |
| Model | DAS50PTZ |
| Gross Weight | 2.5kg |
| Width | 210mm |
| Sampling rate | 1Msps |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB, Ethernet |
| Number Of Channels | 4 |
| Onboard Memory | 32000MB |
| 2320453 | WiFi option |
| 7918071 | External 16 isolated logical channel adapter |
| 1259523 | Special cord for logic inputs (banana) |
Key Features
- Features a 14-bit resolution for precise data acquisition.
- Supports a sampling rate of 1 Msps across 4 analog channels.
- Connectivity options include USB and Ethernet interfaces.
- Equipped with a 10" TFT panoramic LCD touch screen for easy operation.
- Includes a rechargeable lithium-ion battery with up to 9 hours runtime.
- Onboard memory capacity of 32000 MB to store extensive data sets.
- Operational temperature range from 0°C to 40°C for robust performance.
- Lightweight at 2.5 kg suitable for handheld or portable use.
Product Description
The Sefram DAS50PTZ Data Acquisition System is a high-performance 4-channel device designed for precision measurement and data logging in industrial, laboratory, and field environments. Featuring a 14-bit resolution and sampling rate of 1 Msps, it captures accurate analog signals with a 100 kHz bandwidth, suitable for voltage, current, and temperature monitoring applications.
Its connectivity includes USB and Ethernet ports, enabling seamless data transfer to computers or networks. The built-in 10" TFT panoramic LCD touch screen allows an intuitive user interface for monitoring and configuration. The system is powered by a lithium-ion 10.8V 6.5Ah battery, providing up to 9 hours of autonomous operation, and supports mains power supply for extended use.
Onboard memory of 32000 MB (32 GB) allows extensive data storage, with records exportable via USB sticks. Measuring 295mm in length, 210mm in width, and 105mm in height, and weighing 2.5 kg, the unit is portable and rugged, meeting IEC 1010 CAT III 600V standard for electrical safety.
Applications include maintenance and failure diagnostics on electrical systems, power analysis of single-phase and multi-phase systems, and monitoring voltage, current, and temperature parameters. Optional accessories such as WiFi modules, external isolated logical channel adapters, and special cords for logic inputs enhance functionality and adaptability.
Features a 14-bit resolution for precise data acquisition. Supports a sampling rate of 1 Msps across 4 analog channels. Connectivity options include USB and Ethernet interfaces. Equipped with a 10" TFT panoramic LCD touch screen for easy operation.
Includes a rechargeable lithium-ion battery with up to 9 hours runtime. Onboard memory capacity of 32000 MB to store extensive data sets. Operational temperature range from 0°C to 40°C for robust performance. Compact dimensions: 295 mm length, 210 mm width, and 105 mm height.
Lightweight at 2.5 kg suitable for handheld or portable use. Manufactured in France with industrial-grade quality standards.
Sefram Data Acquisition Systems are trusted in industrial, laboratory, and field applications worldwide. Explore more data acquisition and logging instruments on EnvMart to find the perfect match for your measurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a 14-bit resolution for precise data acquisition.
The system supports a maximum sampling rate of 1 Msps across its 4 analog channels.
It offers connectivity through USB and Ethernet interfaces for data transfer.
It is equipped with a 10" TFT panoramic LCD touch screen for easy operation.
The DAS50PTZ has an onboard memory capacity of 32000 MB (32 GB) for extensive data storage.
It operates within a temperature range of 0°C to 40°C.
The rechargeable lithium-ion battery provides up to 9 hours of runtime.
It measures 295 mm in length, 210 mm in width, and 105 mm in height.
The unit weighs 2.5 kg, making it suitable for handheld or portable use.
It is suitable for maintenance and failure diagnostics on electrical systems, power analysis, and monitoring voltage, current, and temperature parameters.
Yes, optional accessories include WiFi modules, external isolated logical channel adapters, and special cords for logic inputs.
It is manufactured in France, adhering to industrial-grade quality standards.
