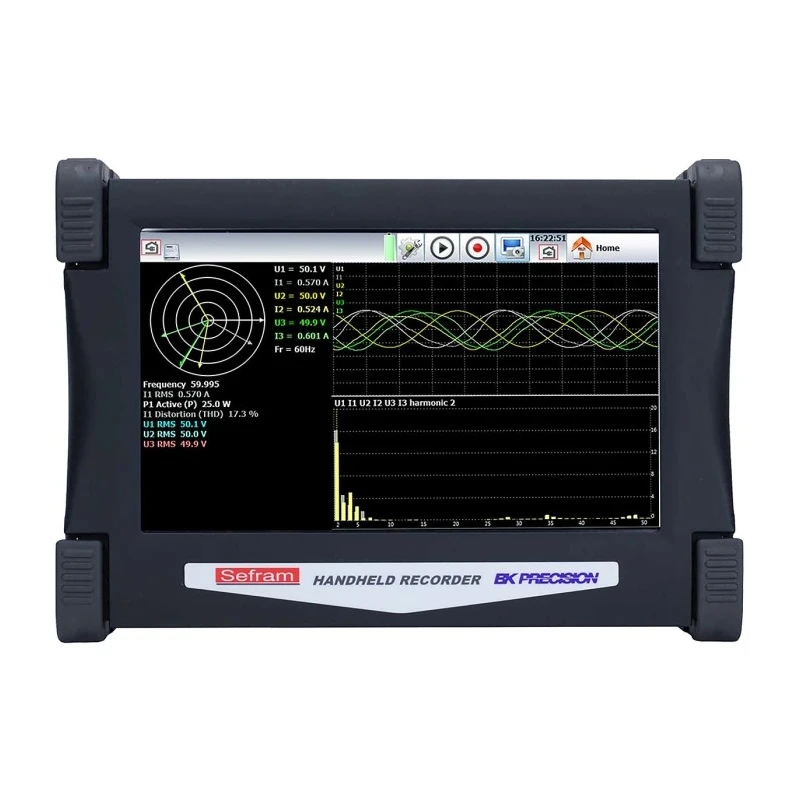

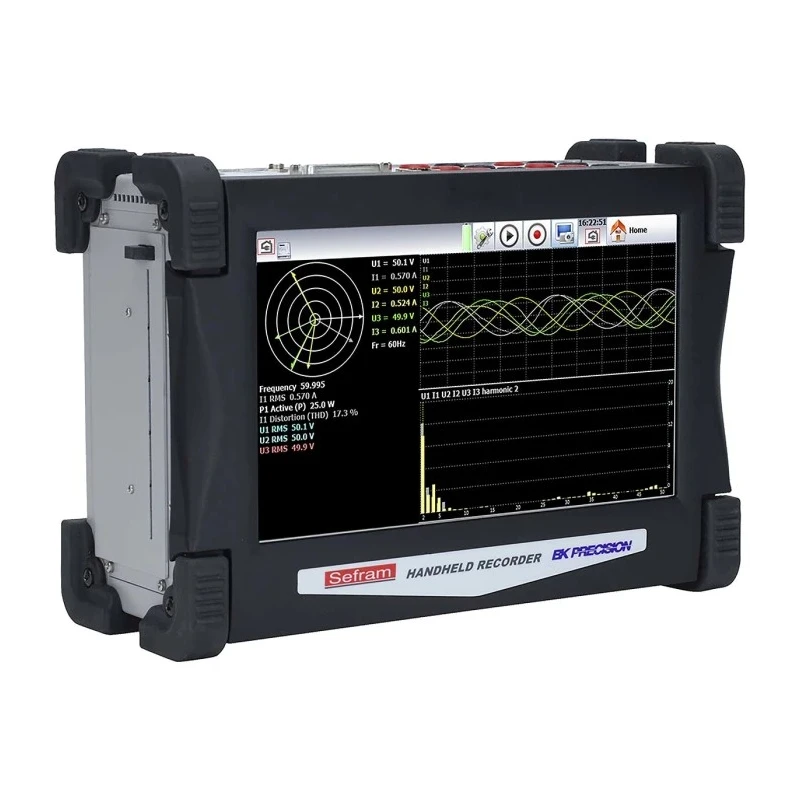

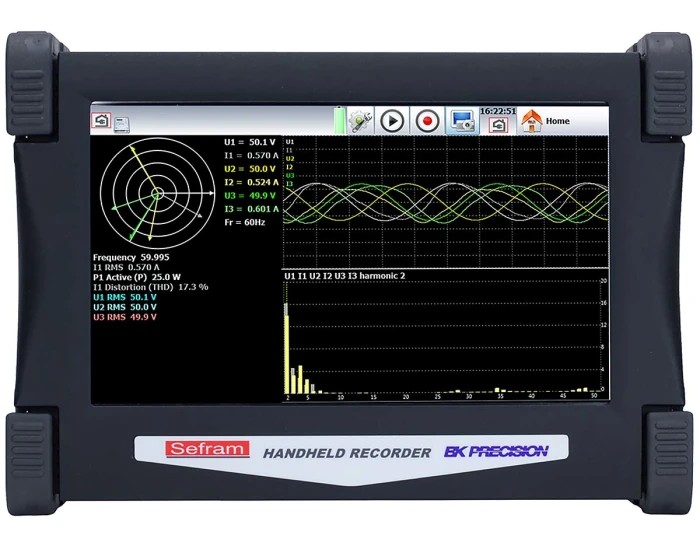

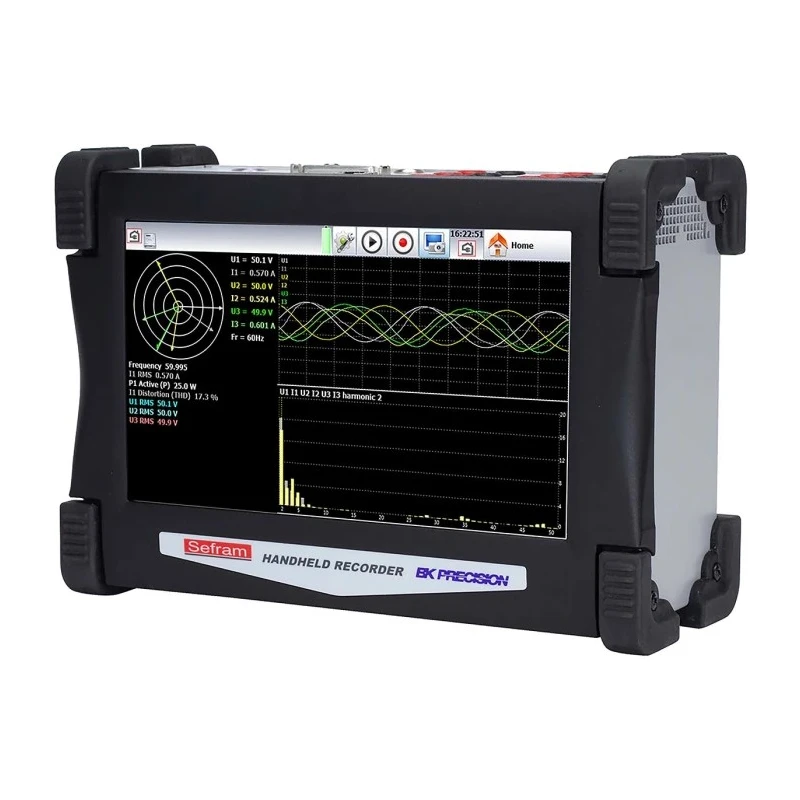

Sefram Data Acquisition System 6-Channel, USB, Ethernet, 1 Msps, 14 bit DAS60

Sefram DAS60 data acquisition system combines precision and flexibility with a 1 Msps sampling rate and 14-bit resolution across 6 isolated channels. It offers advanced connectivity through USB and Ethernet interfaces, making it ideal for a range of industrial and laboratory applications.

The system features a 10-inch TFT panoramic LCD touch screen for intuitive control and data visualization. It supports up to 64GB internal memory, ensuring sufficient storage for extensive measurement recordings. Powered by a lithium-ion battery, the device delivers up to 9.5 hours of autonomous operation, suitable for field and on-site testing conditions.

Its robust design measures 295mm in length, 210mm in width, and 105mm in height, weighing 2.5 kg, allowing portability without compromising durability. The DAS60 is engineered to function reliably within a temperature range of 0°C to 40°C, supporting effective monitoring and diagnostics.

Applications include maintenance and failure diagnostics on electrical systems, power analysis for single-phase and three-phase networks up to 400Hz, as well as voltage, current, and temperature recording and monitoring. The device supports special functions such as power analysis and accommodates optional accessories including WiFi modules, external logical channel adapters, and special cords for logic inputs.

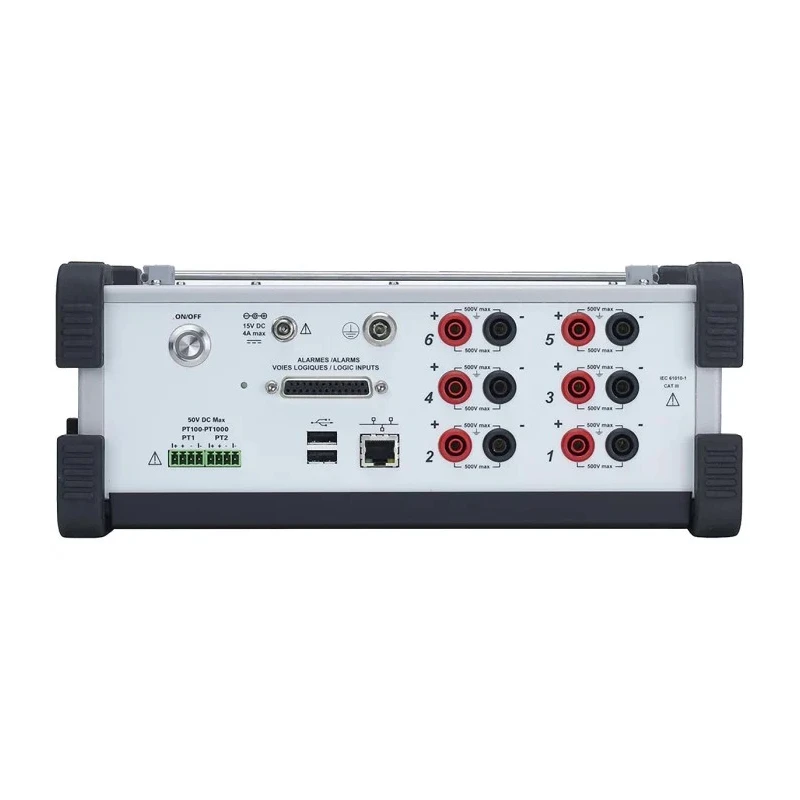

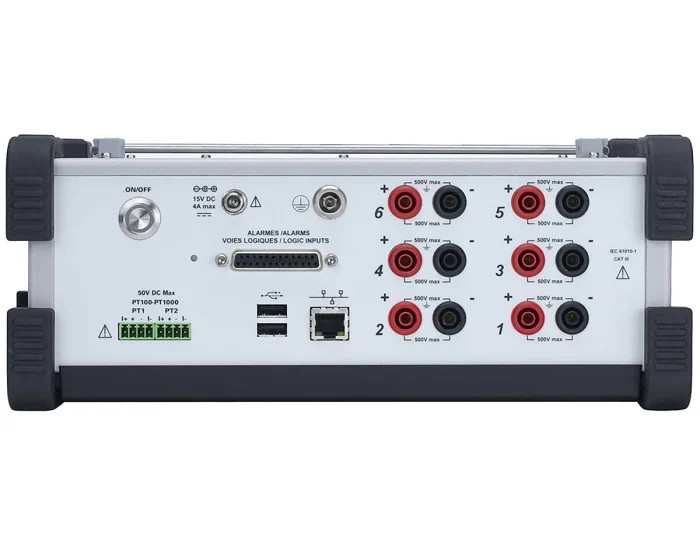

Equipped with 6 isolated measurement channels. Provided interfaces include USB and Ethernet connectivity. Features a 10-inch panoramic LCD touch screen for easy operation. Operates on lithium-ion battery with up to 9.5 hours autonomy.

Compact and portable design weighing 2.5 kg with rugged carrying case. Capable of power analysis on single-phase and three-phase electrical systems. Includes main adaptor, manual in CD format, cables, alligator clips, and banana plugs.

Manufactured in France, the Sefram DAS60 is recommended for industries requiring reliable data acquisition solutions in electrical testing, maintenance, and monitoring. Explore more high-performance Data Acquisition Systems on EnvMart for industrial, laboratory, and commercial applications.
