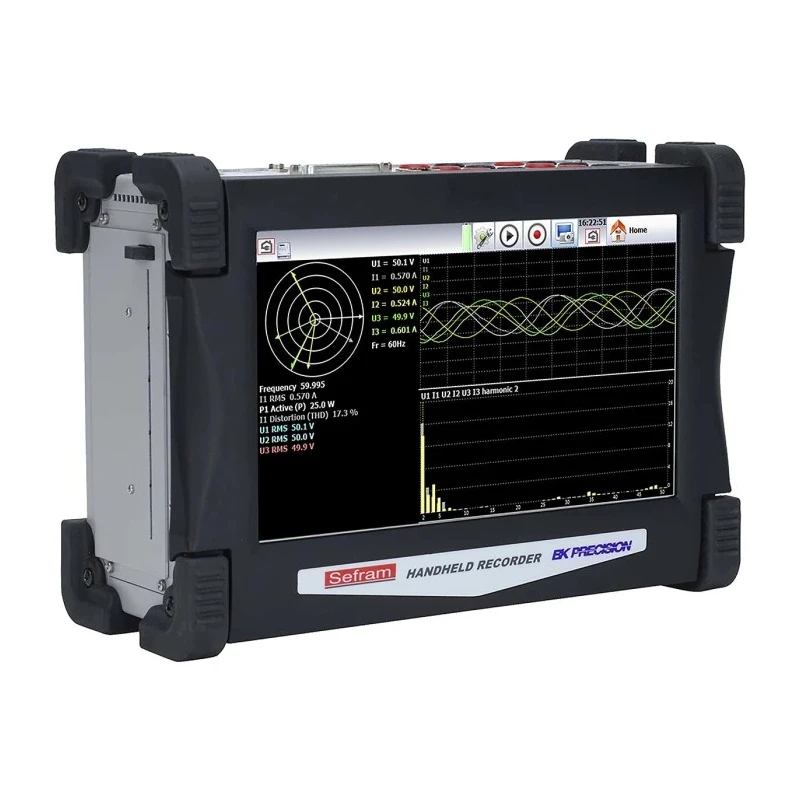

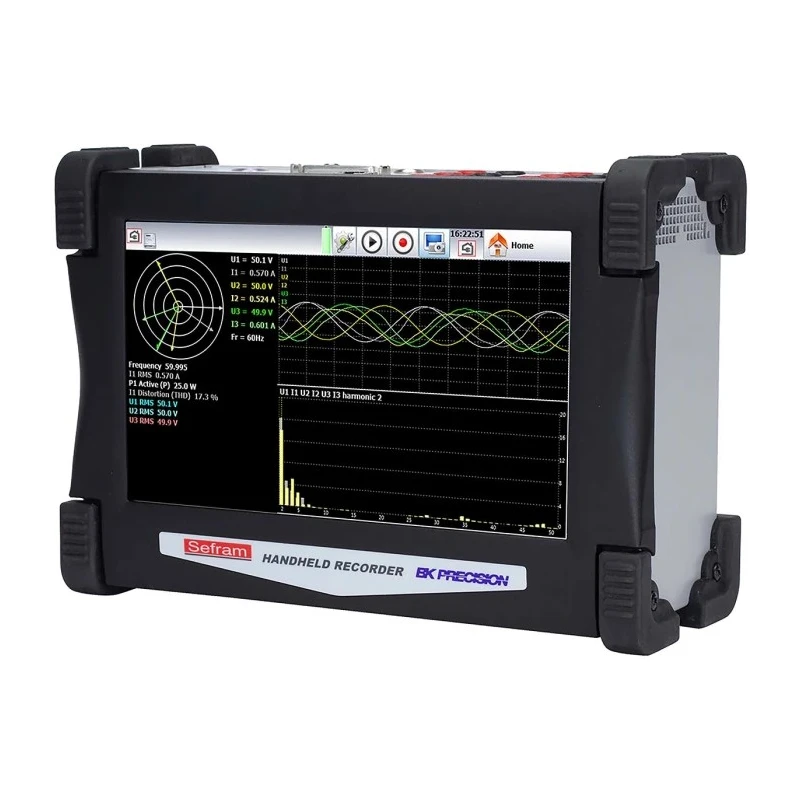

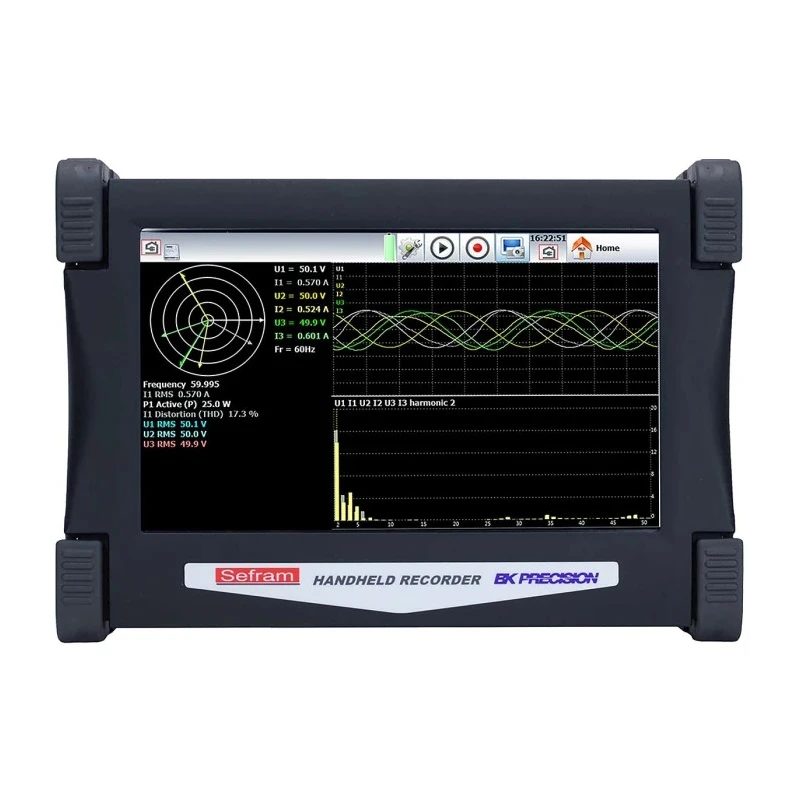

Sefram Data Acquisition System 6-Channel USB Ethernet 1 Msps 14 bit DAS60
Specifications
| Country of Origin | France |
|---|---|
| Resolution | 14 bit |
| Brand | Sefram |
| Battery Life | 9.5h |
| Battery type | Lithium-ion |
| Height | 105mm |
| Length | 295mm |
| Connectivity | USB, Ethernet |
| Model | DAS60 |
| Gross Weight | 2.5kg |
| Temperature | thermocouple, Pt100/Pt1000 (2 separate channels) |
| Width | 210mm |
| Sampling rate | 1Msps |
| Included | main adaptor 100/240V, manual (CD-ROM), rugged carrying case, set of red and black cables, aligator clips, quick banana plug |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 6 |
| Onboard Memory | 64000MB |
| 2320453 | WiFi option |
| 7918071 | External 16 isolated logical channel adapter |
| 1259523 | Special cord for logic inputs (banana) |
| DAS60 | 1752549 - Impedance 1MΩ |
| DAS60P | 2506419 - Printer and Impedance 1MΩ |
| DAS60Z | 1752550 - High Impedance 10MΩ |
| DAS60PZ | 1752552 - Printer and High Impedance 10MΩ |
Key Features
- This system features 6 isolated analog channels for versatile measurement.
- Supports 1 Msps sampling rate with 14-bit resolution for precise data capture.
- Includes universal inputs supporting DC, AC+DC RMS, frequency, and temperature sensors.
- Equipped with 64 GB internal memory and 32 Mword onboard memory for extended logging.
- Battery powered with Lithium-ion battery offering 9.5 hours operation for portability.
- Operates within a temperature range of 0°C to 40°C to suit various environments.
- Special power analysis function for single-phase and three-phase networks up to 400 Hz.
- Includes accessories such as main adaptor, rugged carrying case, cables, and clips for ease of use.
Product Description
Sefram DAS60 Data Acquisition System 6-Channel model DAS60 delivers a high-performance data acquisition solution with a sampling rate of 1 Msps and 14-bit resolution, suitable for industrial, laboratory, and R&D use. The device is battery operated with a Lithium-ion battery providing 9.5 hours autonomy and supports USB and Ethernet connectivity for flexible data transfer.

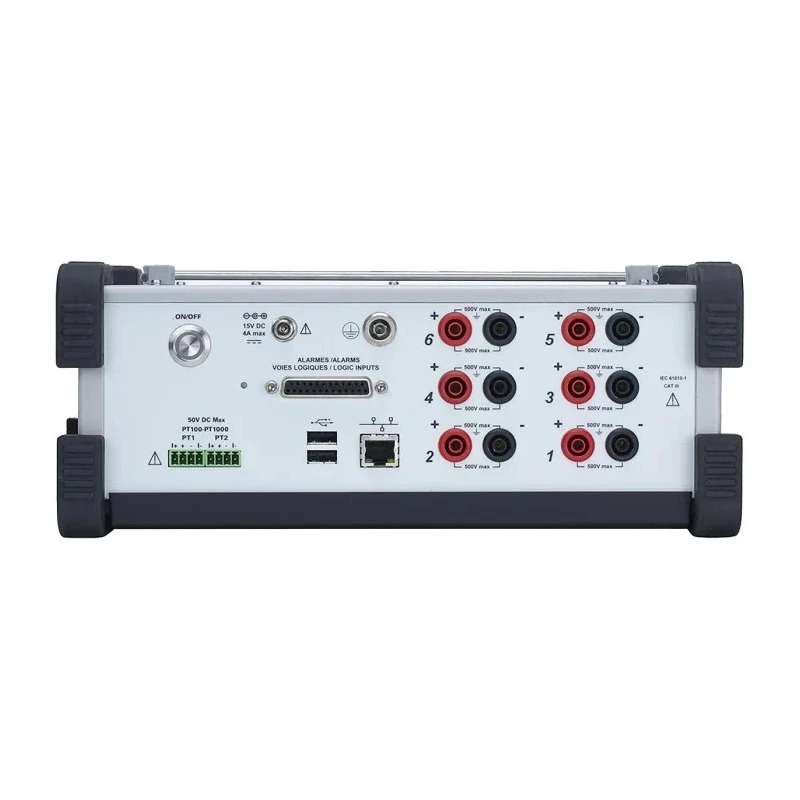

The compact and portable instrument features 6 analog isolated channels, 16 logical inputs, and 2 Pt100/Pt1000 inputs dedicated to accurate and isolated measurements. It supports various input types including DC voltage, AC+DC RMS voltage, frequency, counters, and temperature sensors such as thermocouples and Pt100/Pt1000 sensors.
A special network and power analysis function enables recording parameters on single-phase and three-phase electrical networks up to 400 Hz, including inrush current and PWM measurements. The device also offers options such as WiFi connectivity, external 16 isolated logical channel adapter, and special cords for logic inputs to extend functionality.
The system includes a large 64 GB internal hard disk and 32 Mword onboard memory, ensuring ample data storage for prolonged monitoring and diagnostics. Its industrial-grade construction with rugged carrying case and comprehensive accessories makes it ideal for use in manufacturing, water treatment, HVAC, and maintenance sectors.
This device supports high-impedance 10 MΩ input for improved signal accuracy and noise reduction. Dimensions are 295 mm length, 210 mm width, and 105 mm height with a gross weight of 2.5 kg. Included items: main adaptor 100/240 V, manual (CD-ROM), rugged carrying case, set of red and black cables, alligator clips, and quick banana plug.
The Sefram DAS60 model is made in France and is designed to meet the demanding requirements of high-speed recording and multi-parameter analysis in professional environments. For specialized applications and extended setups, optional accessories are available. Explore the full range of Data Acquisition Systems at EnvMart for reliable precision instruments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 1 Msps (million samples per second).
This data acquisition system features 6 isolated analog channels for versatile measurement.
It supports universal inputs including DC voltage, AC+DC RMS voltage, frequency, counters, and temperature sensors like thermocouples and Pt100/Pt1000.
The resolution of this unit is 14 bits, allowing for precise data capture.
It operates on a Lithium-ion battery with a life of 9.5 hours.
The dimensions of this model are 295 mm in length, 210 mm in width, and 105 mm in height.
This data acquisition system supports USB and Ethernet connectivity for flexible data transfer.
The operating temperature range for this unit is from 0°C to 40°C.
Included accessories are a main adaptor (100/240V), manual (CD-ROM), rugged carrying case, red and black cables, alligator clips, and a quick banana plug.
The onboard memory of this model is 32 Mword, equivalent to 64 GB.
Yes, it includes a special power analysis function for single-phase and three-phase networks up to 400 Hz.
The Sefram DAS60 is made in France.
