Keithley Data Acquisition System DAQ6510, Lithium Battery, Operating Temp 0°C to 50°C, 4.5kg DAQ6510

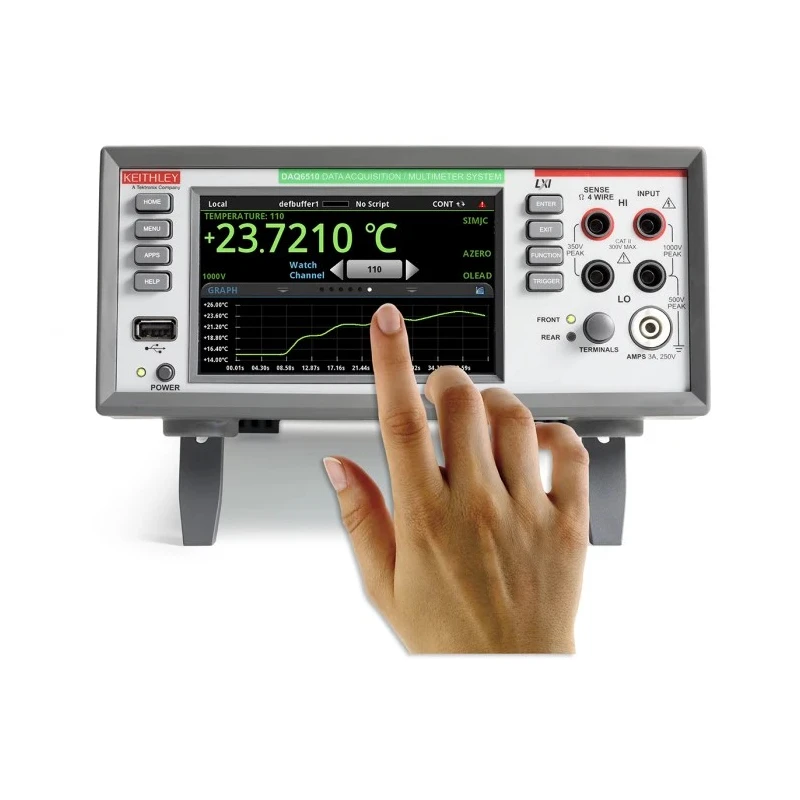

Keithley DAQ6510 Data Acquisition System is a highly capable and versatile data acquisition and logging system incorporated with the latest 6-digit multimeter technology to ensure precision and accuracy. The system includes a 5-inch (12.7 cm) multi-touch capacitive touchscreen, providing an intuitive user interface for setup, data visualization, and analysis without reliance on a PC. However, for applications that require PC usage, comprehensive IVI and LabVIEW drivers are available alongside Keithley's KickStart Instrument Control Software.

Designed to handle complex test configurations, the DAQ6510 supports up to 12 plug-in switching, RF, and control modules, allowing measurements and control of up to 80 devices under test (DUTs) simultaneously. Advanced multiplexing and scanning speeds of up to 800 channels per second enable efficient high-volume production testing. The device supports cold junction compensation and temperature monitoring for environmental testing, making it suitable for automotive HALT and HASS applications.

The system operates on lithium battery power providing up to 3 years battery life and functions within operating temperatures of 0°C to 50°C. Standard communication interfaces include LAN/LXI and USB-TMC, with optional connectivity via GPIB, RS-232, and TSP-Link® Technology. The DAQ6510 features a maximum measurement range of 3A ac/dc and 750V ac max, suited for complex industrial and laboratory measurements.

Accessories and plug-in modules extend functionality further, including multiplexer modules, solid state relay modules, and RF modules for high-frequency switching operations. The device's weight is approximately 4.5 kg, and its physical dimensions are 387.4 mm width, 224 mm length, and 107.2 mm height.

Large, 5-inch multi-touch capacitive touchscreen with intuitive graphical interface. 12 different switch, RF, and control plug-in modules available to expand measurement capability. Precision 6-digit multimeter technology with 2-year accuracy specification.

Supports up to 80 two-pole channels for temperature measurements via thermocouples, RTDs, or thermistors. Standard LAN/LXI and USB-TMC communication interfaces with optional additional interfaces. Scanning speed of up to 800 channels per second with solid state relay modules.

Rugged design suitable for industrial, laboratory, and environmental testing environments. Battery operated with lithium battery providing up to 3 years life span. Includes Keithley KickStart full-feature instrument control software for enhanced testing.

This Keithley DAQ6510 system is ideal for industries requiring precise data acquisition and control such as laboratory testing, manufacturing, environmental testing, and quality control. Its versatility and expandability make it a valuable instrument for electrical test and measurement applications.
