Sefram Data Acquisition System 4-Channel, Ethernet, USB, 1 Msps, 14 bit DAS50
Specifications
| Country of Origin | France |
|---|---|
| Resolution | 14 bit |
| Display | 10" TFT LCD screen |
| Brand | Sefram |
| Interface | USB and Ethernet |
| Battery Life | 9h |
| Battery type | Lithium-ion |
| Height | 105mm |
| Length | 295mm |
| Connectivity | Ethernet, USB |
| Model | DAS50 |
| Gross Weight | 2.5kg |
| Width | 210mm |
| Bandwidth | 100kHz |
| Sampling rate | 1Msps |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 4 |
| Standards/Approvals | IEC 61010, CE |
| Onboard Memory | 32000MB |
| Lithium-ion battery | 10h continuous operation |
| High safety level for industrial application | CEI 1010 CAT III 600V |
| Optional Printer | 110 mm paper width (factory option) |
Key Features
- The system supports a 1 Msps sampling rate and 14-bit resolution for precise data capturing.
- Connectivity options include Ethernet and USB interfaces for versatile data transfer.
- Equipped with a 32GB internal memory and onboard 32000MB storage for extensive data logging.
- Operates with a lithium-ion battery providing approximately 9 hours of battery life for field use.
- Robust design supports operating temperatures from 0°C to 40°C with IEC 61010 and CE safety approvals.
- Features a 10-inch TFT LCD screen for clear data visualization and control.
- Includes 16 logical inputs and optional Pt100/Pt1000 inputs for temperature measurements.
- Supports power analysis for single-phase and three-phase networks, ideal for R&D and maintenance applications.
Product Description
Sefram DAS50 is a high-performance Data Acquisition System model DAS50 designed for industrial and laboratory use. This 4-channel, portable, battery-powered device provides precise data recording with a 1 Msps sampling rate and 14-bit resolution. It is ideal for applications including R&D, diagnostics, maintenance, and power network analysis.

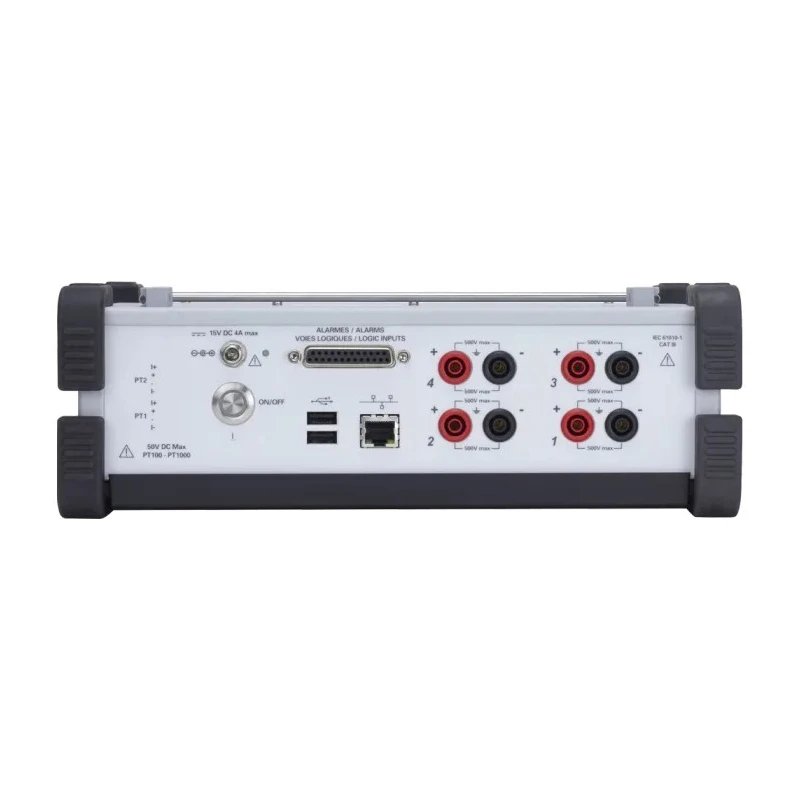

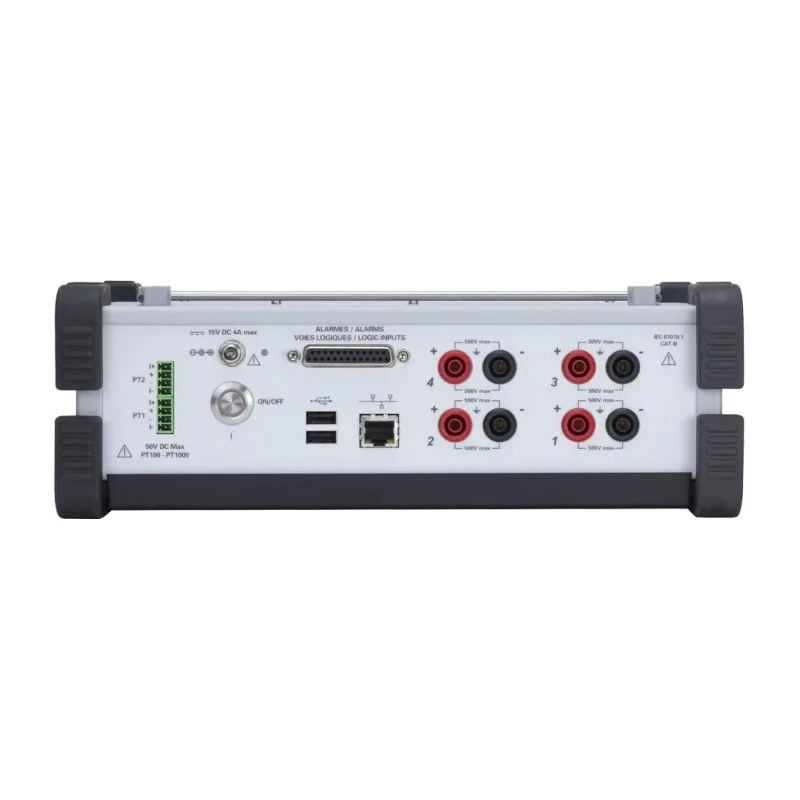

The DAS50 features universal inputs ranging from 1mV to 425V RMS, supports DC and AC+DC RMS voltage measurements, and includes 16 logical channels along with optional inputs for Pt100/Pt1000 temperature sensors. Connectivity is versatile, offering USB and Ethernet interfaces, with optional Wi-Fi.

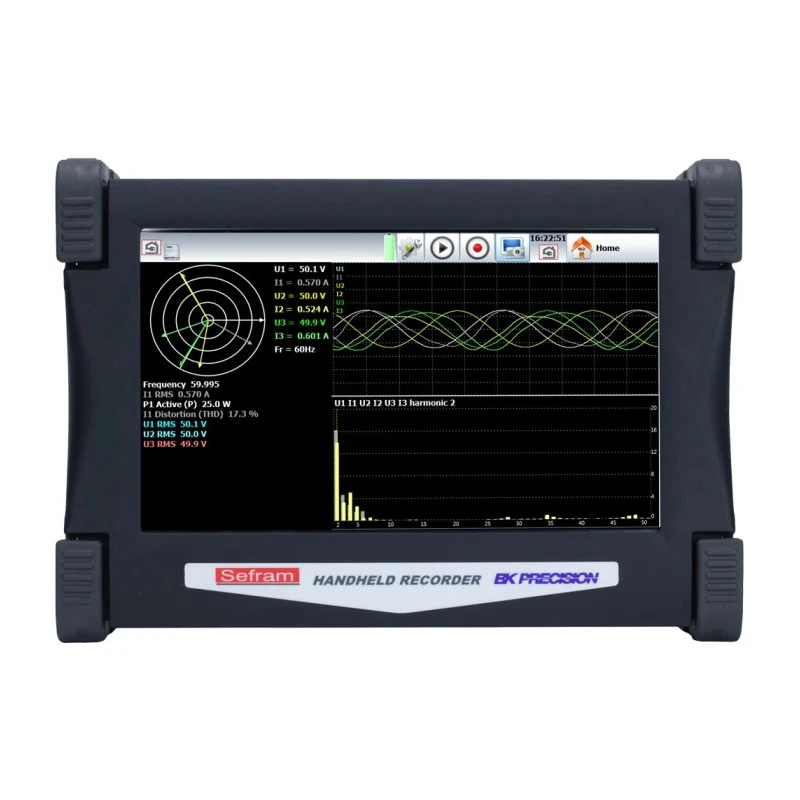

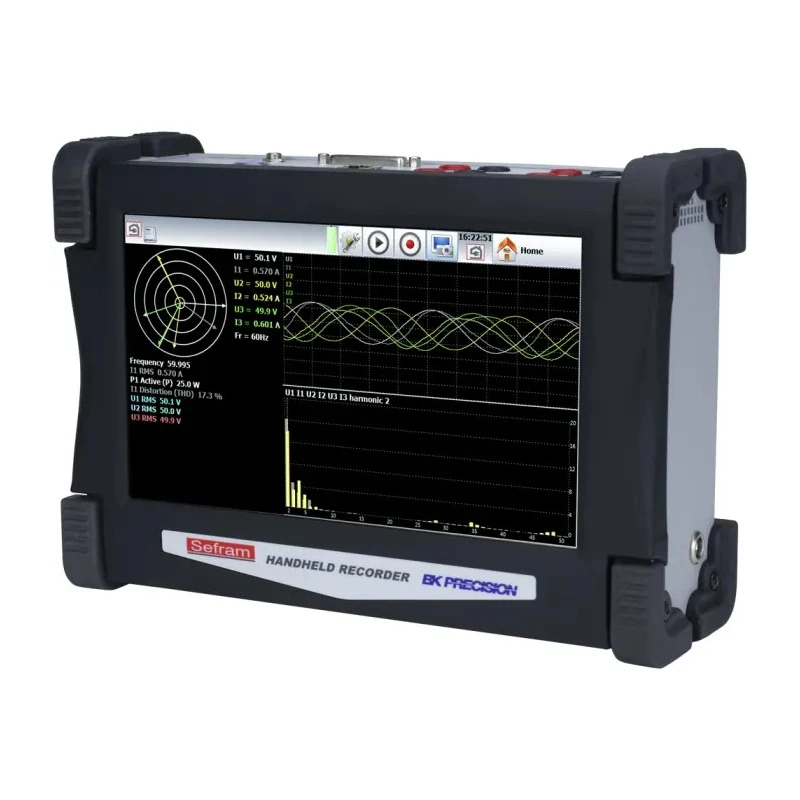

Its 10-inch TFT LCD screen ensures easy data monitoring, while a robust lithium-ion battery provides more than 9 hours of continuous operation, suitable for fieldwork. The system includes a 32GB internal hard disk and onboard memory of 32000MB, permitting extensive and autonomous data logging sessions.
This model complies with IEC 61010 and CE standards, offering a high safety level of CEI 1010 CAT III 600V for industrial applications. An optional factory-installed printer supports 110 mm paper width for on-site printouts.
The system supports a 1 Msps sampling rate and 14-bit resolution for high fidelity data capturing. Connectivity options include Ethernet and USB interfaces for flexible communication. Robust battery life and onboard memory enable long-duration, portable measurements.
Power analysis functionality supports measurements on single and three-phase electrical networks. Compact and rugged design allows use across industrial, laboratory, HVAC, and manufacturing environments. Optional Wi-Fi connectivity and printer enhance remote control and data handling capabilities.
Sefram DAS50 Data Acquisition System is a reliable and versatile solution for professionals needing precise and portable measurement instruments. Explore related products in the EnvMart Data Acquisition System category for additional instrumentation choices.
