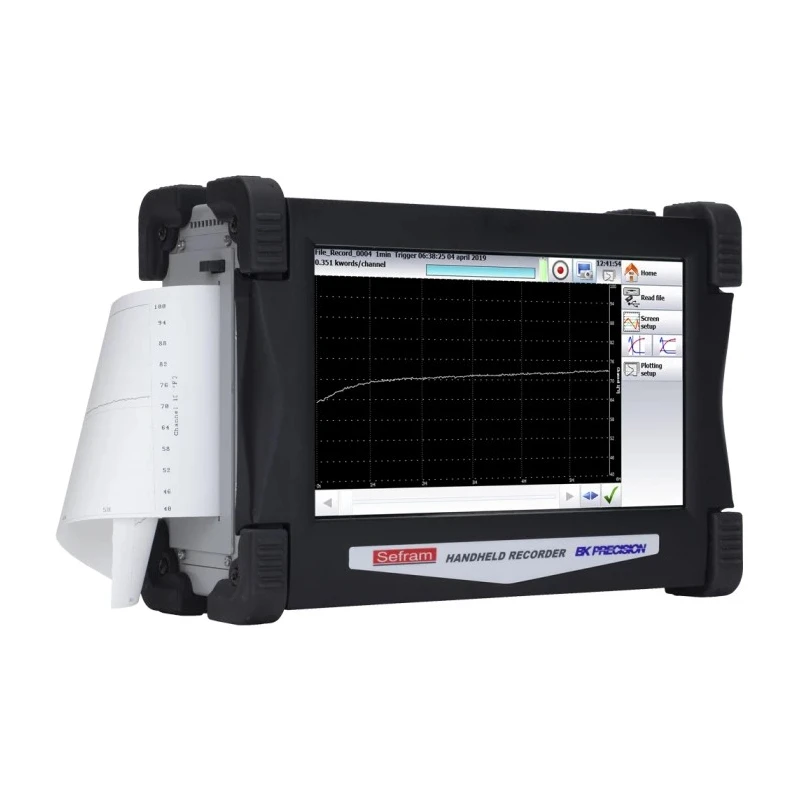

Sefram Data Acquisition System 4-Channel Ethernet USB 1 Msps 14 bit DAS50

Sefram DAS50 Data Acquisition System 4-Channel Ethernet USB 1 Msps 14 bit is a versatile portable data recorder designed for professional industrial, laboratory, and field measurement applications. It offers a user-friendly interface through its large 10-inch TFT panoramic LCD touch screen, facilitating easy control and monitoring of data acquisition.

This multifunctional system accommodates four analog input channels capable of measuring DC, AC+DC RMS voltage, frequency, counts, and temperature via thermocouple or Pt100/Pt1000 sensors. It supports various industrial monitoring needs including electrical system diagnostics, voltage/current/temperature recording, and power analysis for single-phase and three-phase power systems.

With a high sampling rate of 1 Msps and 14-bit resolution, it captures fast-changing signals accurately within a bandwidth of 100 kHz. The built-in 32 GB onboard memory stores large data sets, allowing extensive testing sessions without interruption. Connectivity options include Ethernet and USB ports for seamless data downloading and device control.

The DAS50 features a lithium-ion battery ensuring up to 9 hours of autonomous operation, complemented by mains power availability. Its compact dimensions (295 x 210 x 105 mm) and a weight of 2.5 kg make it convenient for handheld usage in diverse environments, operating reliably between 0°C and 40°C.

Additional options enhance functionality, such as WiFi connectivity, external 16 isolated logical channel adapter, and special cords for logic inputs. The instrument is manufactured in France and meets required industrial standards, although specific approvals are not listed.

This data acquisition system is ideal for industrial maintenance, electrical testing, HVAC monitoring, laboratory experiments, and power quality analysis, providing precise and reliable measurements for complex monitoring tasks.

Features 4 universal analog input channels for versatile signal acquisition. Supports measurement of voltage, frequency, temperature, and counters. High-performance 14-bit resolution with 1 Msps sampling rate. Intuitive 10-inch LCD touch screen interface for user-friendly operation.

Equipped with Ethernet and dual USB interfaces for connectivity. Powered by lithium-ion battery with up to 9 hours autonomy. 32 GB onboard memory for extensive data logging capacity. Compact and portable design weighing 2.5 kg.
