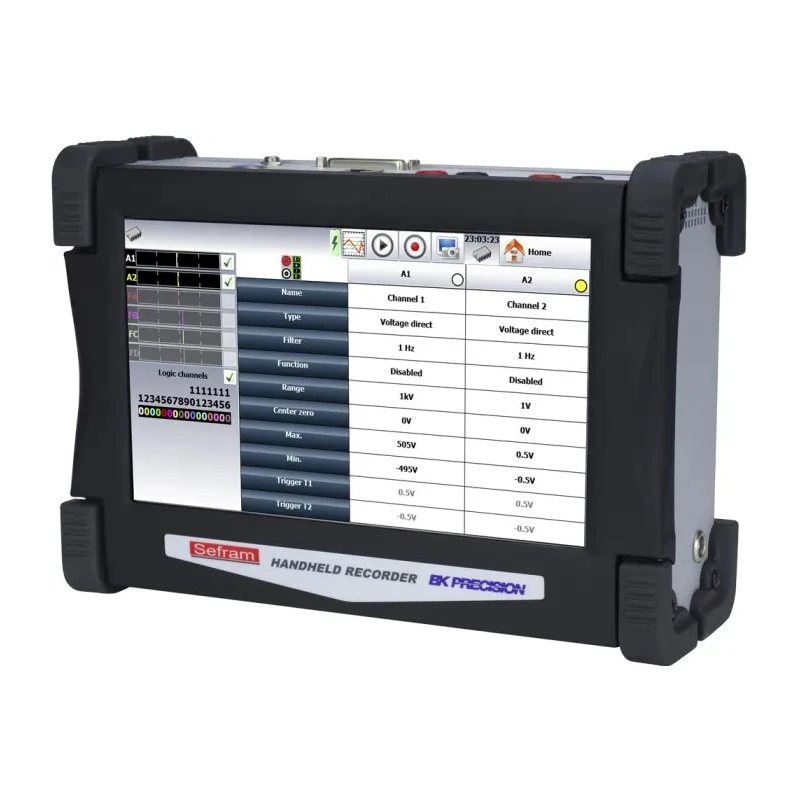

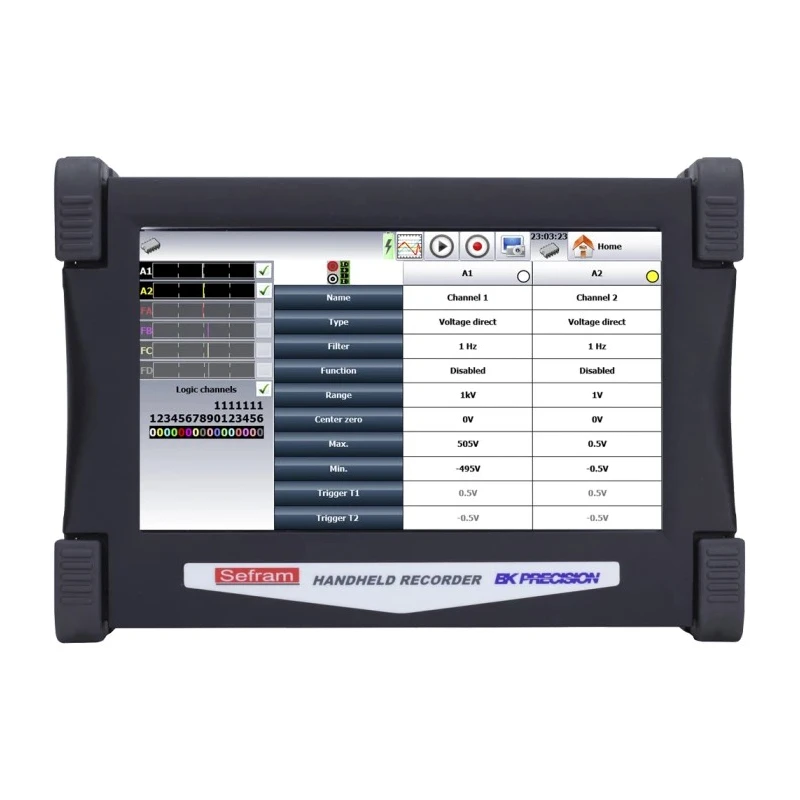

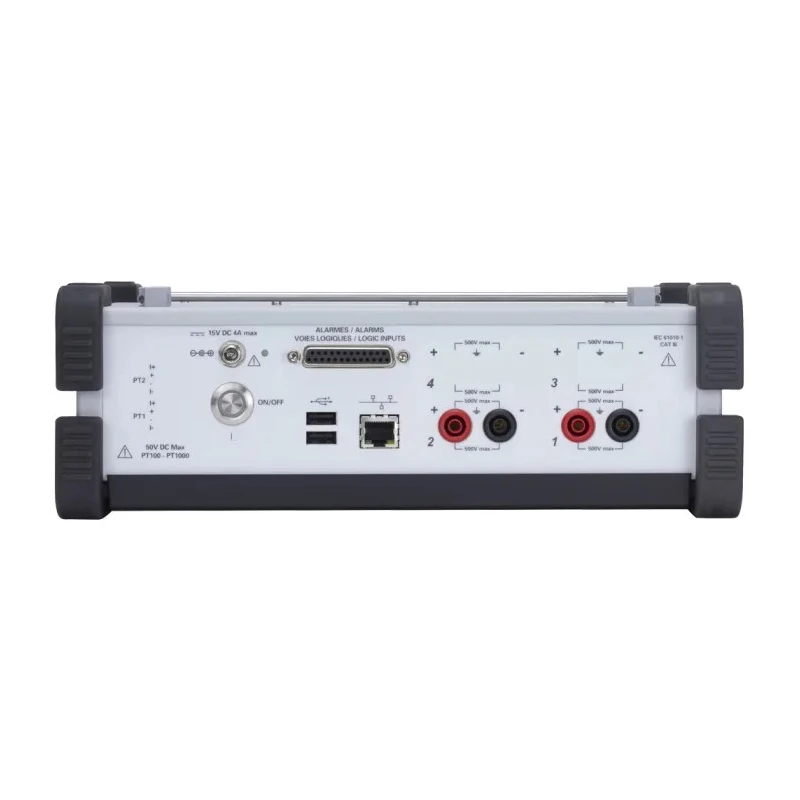

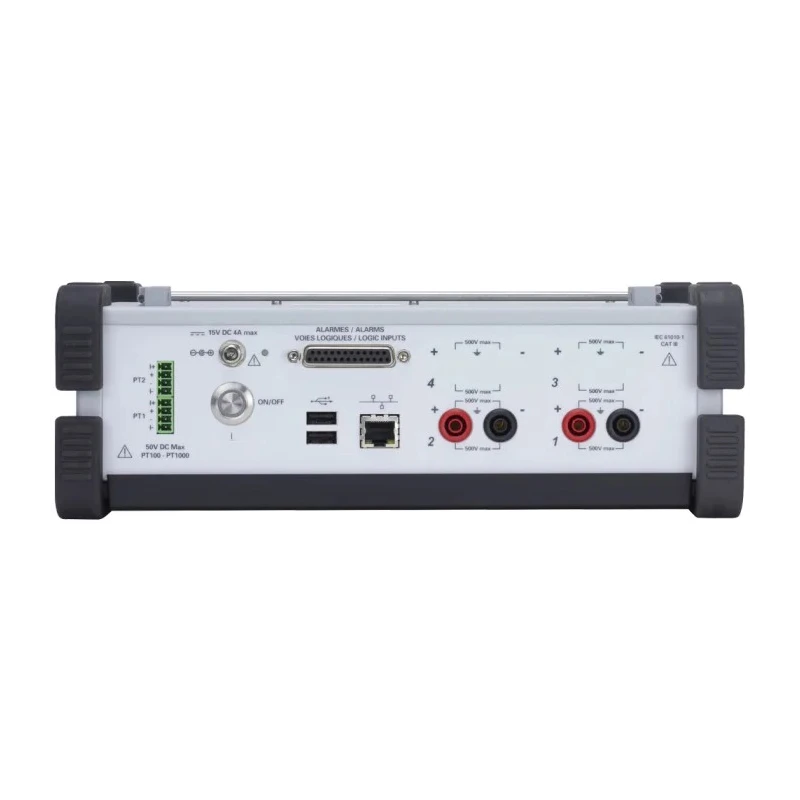

Sefram Data Acquisition System 2-Channel, 1 Msps Sampling Rate, 14 bit Resolution, Ethernet and USB Connectivity DAS30
Specifications
| Country of Origin | France |
|---|---|
| Resolution | 14 bit |
| Display | 10" TFT panoramic LCD touch screen |
| Brand | Sefram |
| Battery Life | 9h |
| Battery type | Lithium-ion |
| Height | 105mm |
| Length | 295mm |
| Connectivity | Ethernet, USB |
| Model | DAS30 |
| Gross Weight | 2.5kg |
| Temperature | thermocouple, Pt100/Pt1000 (option) |
| Width | 210mm |
| Bandwidth | 100kHz |
| Sampling rate | 1Msps |
| Maximum Operating Temperature | 40°C |
| Autonomy | up to 9,5 hours |
| Minimum Operating Temperature | 0°C |
| Interfaces | 2 x USB, Ethernet |
| Number Of Channels | 2 |
| Standards/Approvals | CE, IEC 61010 |
| Onboard Memory | 32000MB |
Key Features
- Equipped with 2 isolated analogue channels and 16 logical inputs for versatile data capture.
- Compatible with Ethernet and USB connectivity for remote control and data transfer.
- Powered by a lithium-ion battery providing up to 9.5 hours of operation for portability.
- Features a 10-inch TFT panoramic LCD touch screen for intuitive user interface.
- Includes 32 GB internal hard disk and 32 million words of onboard memory.
- Supports universal input types including DC, AC+DC RMS voltage, frequency, and temperature sensors with optional Pt100/Pt1000.
- Conforms to CE and IEC 61010 standards ensuring industrial safety and reliability.
- Compact dimensions with 295 mm length, 210 mm width, and 105 mm height while weighing 2.5 kg.
Product Description
Sefram DAS30 Data Acquisition System DAS30 is a highly accurate and portable 2-channel data logger designed for industrial, laboratory, and R&D applications. It features a 1 Msps sampling rate and 14-bit resolution enabling precise high-speed data recording across multiple parameters including voltage, frequency, and temperature.
This unit operates on a rechargeable lithium-ion battery offering up to 9.5 hours autonomy, making it ideal for on-site diagnostics and maintenance tasks. Connectivity options include Ethernet and USB interfaces for seamless remote control, data downloading, and integration with license-free software packages.
The DAS30 has 2 isolated analog channels, 16 logical inputs, and optional 2 Pt100/Pt1000 inputs supporting universal sensors such as thermocouples and resistance temperature detectors. Its 10-inch TFT panoramic LCD touch screen facilitates easy operation and real-time data visualization.
With an internal memory of 32 GB (32 million words), this device ensures extensive data logging capacity. The robust design complies with CE and IEC 61010 standards, suitable for high voltage CAT III 600V environments.
The compact size (295 x 210 x 105 mm) and lightweight (2.5 kg) make the DAS30 highly portable without sacrificing performance. Optional accessories include a thermal printer module for direct printouts in the field.
Equipped with 2 analogue channels and 16 logical inputs supporting a variety of measurement types. Sampling rate of 1 Msps and 14-bit resolution deliver precise data acquisition. Battery-powered with lithium-ion battery ensures portability with long operating time.
Multiple data interfaces including Ethernet and USB for versatile connectivity. Includes a 10-inch TFT panoramic LCD touch screen for user-friendly interaction. Large internal storage of 32 GB allows extensive recording sessions.
Robust compliance with CE and IEC 61010 standards for safe industrial applications. Compact and lightweight design for easy transport and deployment on-site.
The Sefram DAS30 is suitable for use in industrial test and measurement, laboratory experiments, power analysis, HVAC diagnostics, and maintenance operations. Its broad input compatibility and flexible interface options make it an essential instrument for precise data acquisition tasks.
Explore more data acquisition solutions and industrial instrumentation at EnvMart for comprehensive measurement and testing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAS30 features a sampling rate of 1 Msps and a resolution of 14 bits, allowing for precise data acquisition.
It supports Ethernet and USB connectivity for remote control and data transfer.
The maximum operating temperature for this model is 40°C.
The device is powered by a lithium-ion battery that provides up to 9.5 hours of operation.
This data acquisition system is equipped with 2 isolated analogue channels and 16 logical inputs.
It includes 32 GB of internal memory, which is equivalent to 32 million words for extensive data logging.
It is equipped with a 10-inch TFT panoramic LCD touch screen for an intuitive user interface.
The DAS30 supports universal input types including thermocouples and optional Pt100/Pt1000 sensors for temperature measurements.
The device has compact dimensions of 295 mm in length, 210 mm in width, and 105 mm in height, weighing 2.5 kg.
It conforms to CE and IEC 61010 standards, ensuring safety and reliability for industrial applications.
The bandwidth of this model is 100 kHz, allowing it to capture a wide range of signals.
It is suitable for industrial test and measurement, laboratory experiments, power analysis, HVAC diagnostics, and maintenance operations.
