Sefram Data Acquisition System 2-Channel, USB, Ethernet, 1 Msps Sampling Rate, 14 bit Resolution DAS30

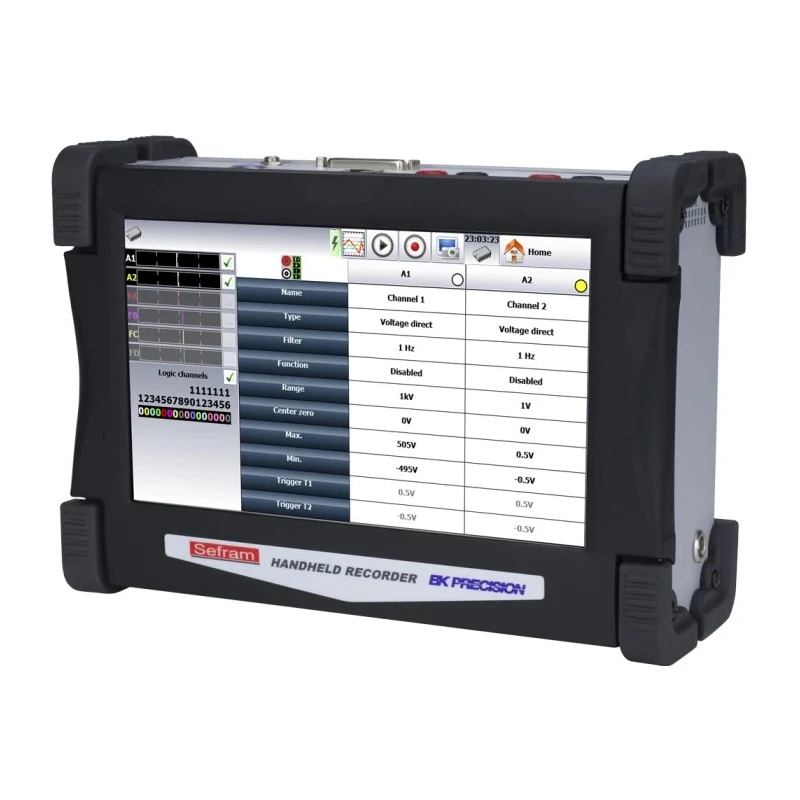

Sefram DAS30 Data Acquisition System 2-Channel is a portable, standalone instrument ideal for R&D, diagnostics, and maintenance tasks. It features a 1 Msps sampling rate with 14-bit resolution, ensuring precise measurement of various electrical and thermal parameters.

The device includes two isolated analogue channels and 16 logical inputs, allowing versatile measurement configurations. Optional Pt100/Pt1000 temperature inputs extend its applications to environmental and process monitoring.

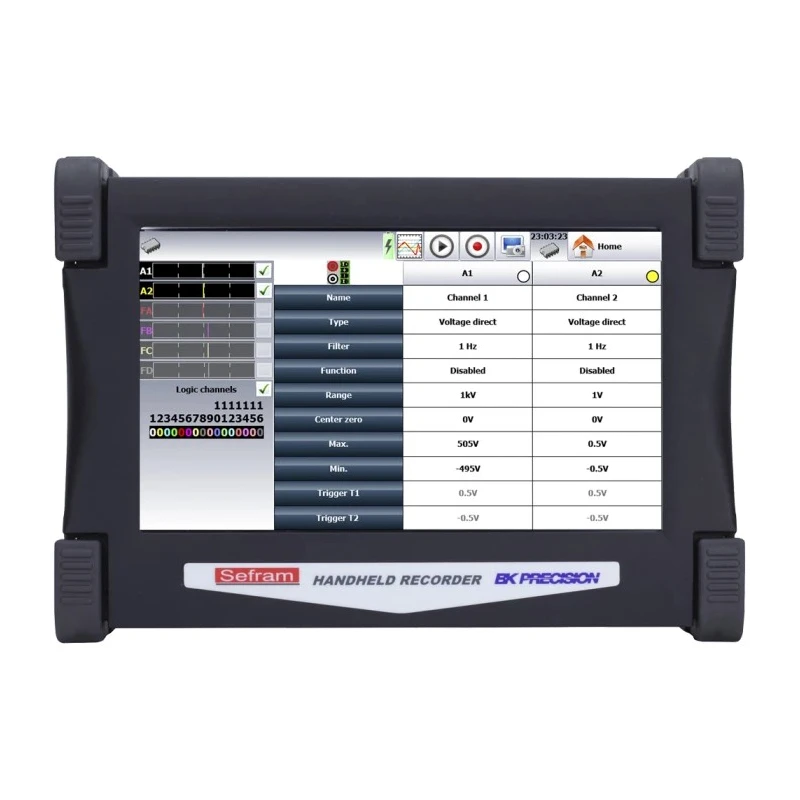

Connectivity is comprehensive, providing USB and Ethernet interfaces as standard, with Wi-Fi as an option for remote control and data download. The 10-inch TFT panoramic LCD touch screen offers intuitive operation and clear data visualization.

The DAS30 features a large internal memory of 32 GB (32,000 MB) capable of storing extensive measurement data, supported by a lithium-ion battery providing autonomy of up to 9.5 hours to facilitate field use. It supports advanced functionalities such as power analysis, frequency and counter measurements, and RMS voltage.

Optimal working conditions range from 0°C to 40°C. The unit complies with CE and IEC 61010 safety standards and is rated for IEC 1010 CAT III 600V environments, ensuring operator and equipment protection.

With dimensions of 295 mm length, 210 mm width, and 105 mm height, and a weight of 2.5 kg, the DAS30 strikes a balance between ruggedness and portability. An optional 110 mm thermal printer module is available to complement the system for on-site printouts.

This data acquisition system is suited for industrial manufacturing, laboratory measurements, power quality analysis, and process automation, making it a versatile tool for technicians and engineers.

Features two isolated analogue channels compatible with multiple input types. Includes USB and Ethernet interfaces for data transfer and remote control. Equipped with a 10-inch TFT panoramic LCD touch screen for real-time monitoring.

Offers 32 GB onboard memory with data logarithm capability. Supports thermocouple, Pt100, and Pt1000 temperature measurement options. Powered by a rechargeable lithium-ion battery with up to 9.5 hours of autonomy. Designed for industrial, laboratory, and research applications.
