Sefram Data Acquisition System 4-Channel, Ethernet, USB, 1 Msps, 14 bit DAS50TZ

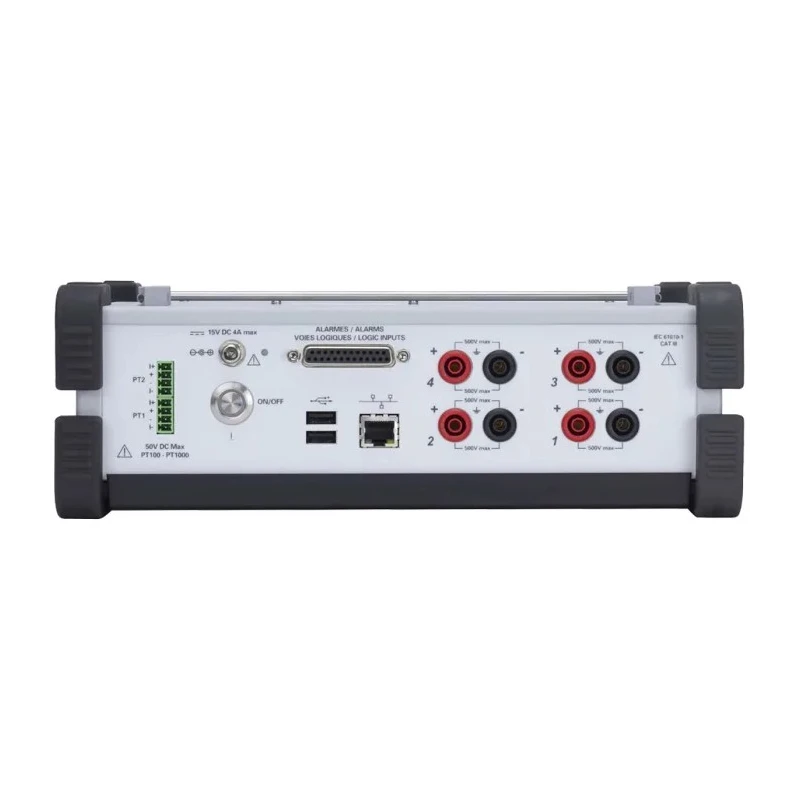

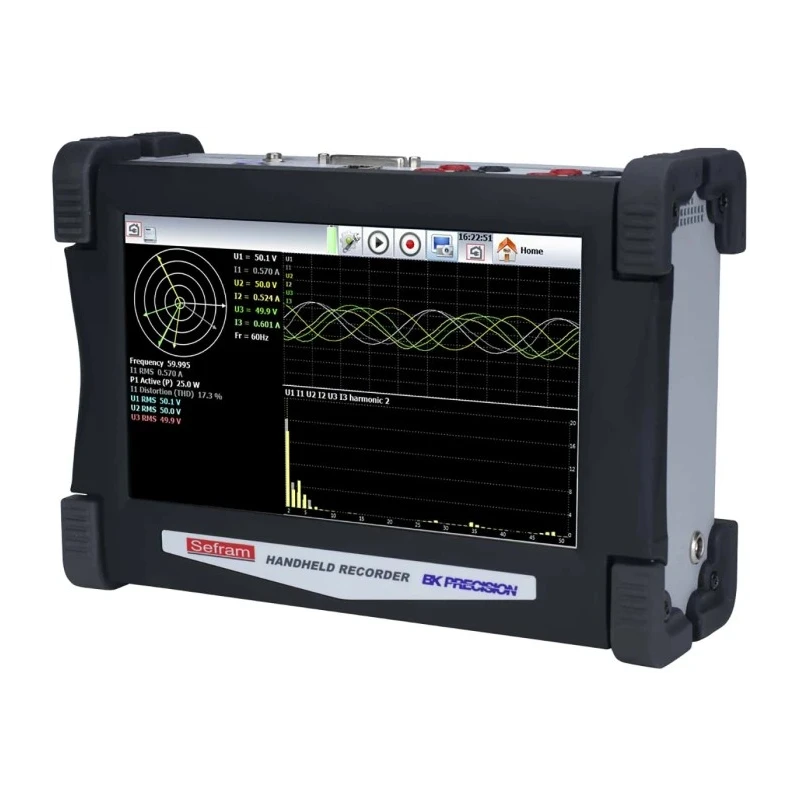

Sefram DAS50TZ Data Acquisition System 4-Channel integrates advanced 14-bit resolution with a 1 Msps sampling rate, providing precise and reliable data acquisition for industrial and laboratory applications. Featuring 4 analog channels and Ethernet and USB connectivity, it ensures versatile and efficient data communication.

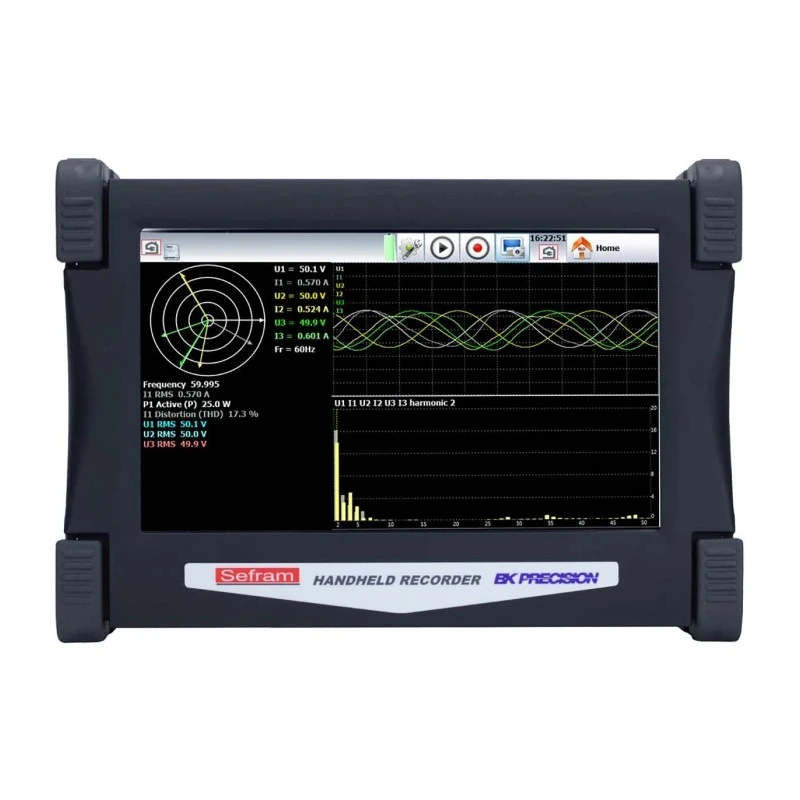

The system operates on a lithium-ion battery with a lifespan of up to 9 hours, making it suitable for portable and long-duration use. Its 10-inch TFT panoramic LCD touch screen offers clear visualization and easy user interaction.

With a substantial 32,000 MB onboard memory, the DAS50TZ accommodates large volumes of recorded data, facilitating extensive testing and analysis. It operates effectively within a temperature range of 0°C to 40°C, ensuring stability in various environments.

The compact design with dimensions 295mm x 210mm x 105mm and weight of 2.5 kg enables convenient handling and deployment in field or lab settings. The package includes a lithium-ion 10.8V 6.5Ah battery, a set of red and black cable accessories (including alligator clips and banana plugs), a carrying case, mains adapter, and a manual provided on CD-ROM.

Sefram DAS50TZ is ideal for multifunctional measurement tasks such as maintenance and failure diagnostics on electrical systems, voltage and current monitoring, temperature recording, and detailed power analysis for single-phase, dual-phase, and three-phase networks. It supports additional optional accessories including WiFi, external isolated logical channel adapters, and special cords for logic inputs.

Features 4 analog channels with a 14-bit resolution for accurate data capture. Supports Ethernet and USB connectivity for versatile data transfer. Operates with a lithium-ion battery providing up to 9 hours of operation.

Includes a 10-inch TFT panoramic LCD touch screen for easy interface and display. Equipped with 32,000 MB onboard memory to store extensive data samples. Designed to operate between 0°C and 40°C for reliable performance in various environments.

Compact dimensions of 295mm length, 210mm width, and 105mm height with a lightweight 2.5 kg build. Includes accessories: lithium-ion 10.8V 6.5Ah battery, red and black cable accessories, carrying case, mains adapter, and manual on CD-ROM.
