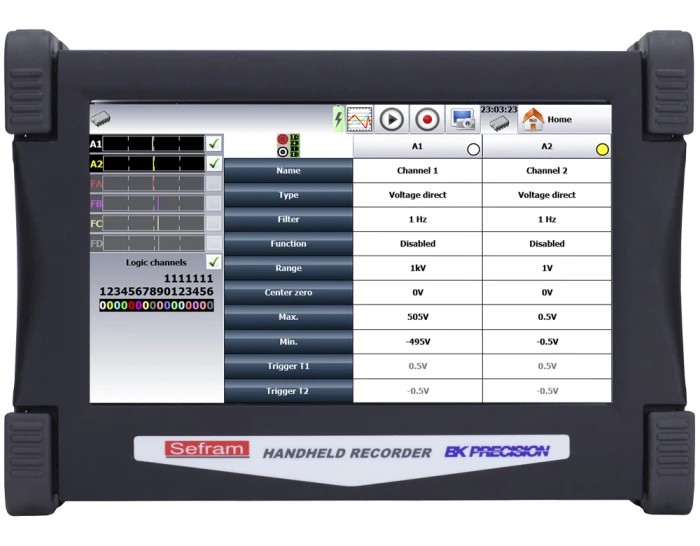

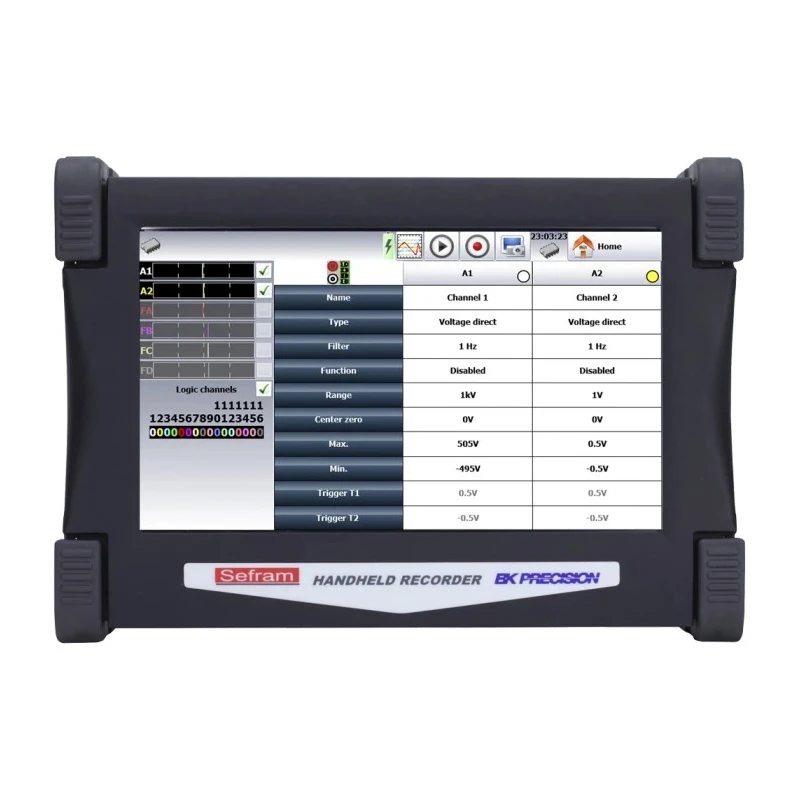

Sefram DAS30 Data Acquisition System 2-Channel, Ethernet, USB, 1 Msps Sampling Rate, 14 bit Resolution DAS30
Specifications
| Country of Origin | France |
|---|---|
| Resolution | 14 bit |
| Display | 10" TFT panoramic LCD touch screen |
| Brand | Sefram |
| Battery Life | 9h |
| Battery type | Lithium-ion |
| Height | 105mm |
| Length | 295mm |
| Connectivity | Ethernet, USB |
| Model | DAS30 |
| Gross Weight | 2.5kg |
| Temperature | thermocouple, Pt100/Pt1000 (option) |
| Width | 210mm |
| Bandwidth | 100kHz |
| Sampling rate | 1Msps |
| Maximum Operating Temperature | 40°C |
| Autonomy | up to 9,5 hours |
| Minimum Operating Temperature | 0°C |
| Interfaces | 2 x USB, Ethernet |
| Number Of Channels | 2 |
| Standards/Approvals | CE, IEC 61010 |
| Onboard Memory | 32000MB |
Key Features
- Operates with 2 isolated analog channels and 16 logical inputs.
- Supports universal input types including DC, AC+DC RMS voltage, frequency, and thermocouples.
- Equipped with 32 GB internal memory and 32,000 MB onboard memory for extensive data storage.
- Features a 10 inch TFT panoramic LCD touch screen for intuitive operation.
- Sampling rate of 1 Msps and 14-bit resolution capture high-fidelity signals.
- Powered by lithium-ion battery and mains with up to 9.5 hours autonomy.
- Connectivity includes Ethernet, 2 USB ports, and optional Wi-Fi interface.
- Includes power analysis functionality for single-phase systems.
Product Description
Sefram DAS30 data acquisition system DAS30 is a standalone, portable instrument dedicated to high-speed recording applications in industrial, laboratory, and R&D environments. Its 2 isolated analog channels and 16 logical inputs make it versatile for diagnostics, maintenance, and monitoring tasks.
The device supports universal input types including DC, AC+DC RMS voltage, frequency, counter, thermocouple, and optional Pt100/Pt1000 temperature sensors. Featuring a resolution of 14 bits and a sampling rate of 1 Msps, it captures high-fidelity data across a bandwidth of 100 kHz. Data storage is facilitated by a 32 GB internal hard disk and 32 M word memory.
The DAS30 allows power analysis on single-phase systems and comes with multiple interfaces such as Ethernet and USB for convenient remote control and data transfer. An optional Wi-Fi interface enhances wireless connectivity options. The 10" TFT panoramic LCD touch screen enables intuitive operation and clear data visualization.
This system is battery operated with a lithium-ion battery providing up to 9.5 hours of autonomy, and it can also be powered from mains. It is built to operate in ambient temperatures ranging from 0°C to 40°C. The instrument conforms to CE and IEC 61010 standards and has an IEC 1010 CAT III 600V safety rating.
Additional options include a 110mm thermal printer module for on-site printouts. The compact dimensions (295mm length, 210mm width, and 105mm height) and weight of 2.5 kg ensure portability.
The Sefram DAS30 Data Acquisition System is ideal for industrial monitoring, research laboratories, HVAC diagnostics, manufacturing testing, and power system analysis. Explore more Data Acquisition Systems from Sefram and other top brands on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The DAS30 features a sampling rate of 1 Msps and a resolution of 14 bits, allowing for high-fidelity data capture.
This model supports 2 isolated analog channels along with 16 logical inputs for versatile data acquisition.
It supports universal input types including DC, AC+DC RMS voltage, frequency, counter, thermocouple, and optional Pt100/Pt1000 temperature sensors.
The bandwidth of this data acquisition system is 100 kHz, suitable for capturing a wide range of signals.
The dimensions of the DAS30 are 295mm in length, 210mm in width, and 105mm in height, with a gross weight of 2.5 kg.
It includes Ethernet and 2 USB ports for connectivity, with an optional Wi-Fi interface for enhanced wireless capabilities.
The DAS30 is powered by a lithium-ion battery that provides up to 9.5 hours of autonomy.
It is equipped with a 10-inch TFT panoramic LCD touch screen that enables intuitive operation and clear data visualization.
The operating temperature range for this unit is from 0°C to 40°C.
The DAS30 conforms to CE and IEC 61010 standards, ensuring it meets safety and performance regulations.
It features a 32 GB internal hard disk and 32,000 MB of onboard memory for extensive data storage capabilities.
This model is ideal for industrial monitoring, research laboratories, HVAC diagnostics, manufacturing testing, and power system analysis.
