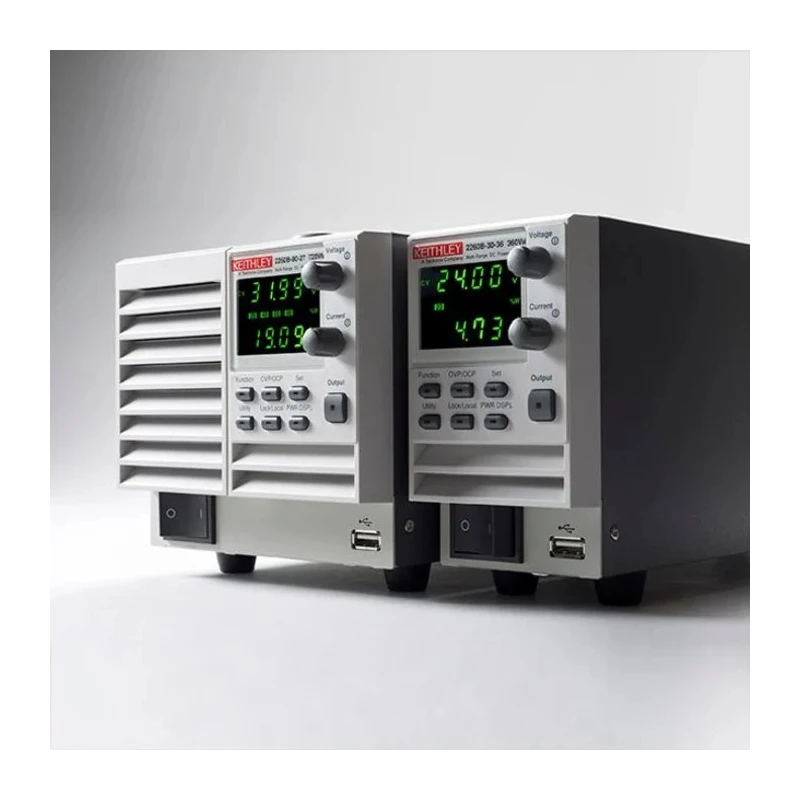

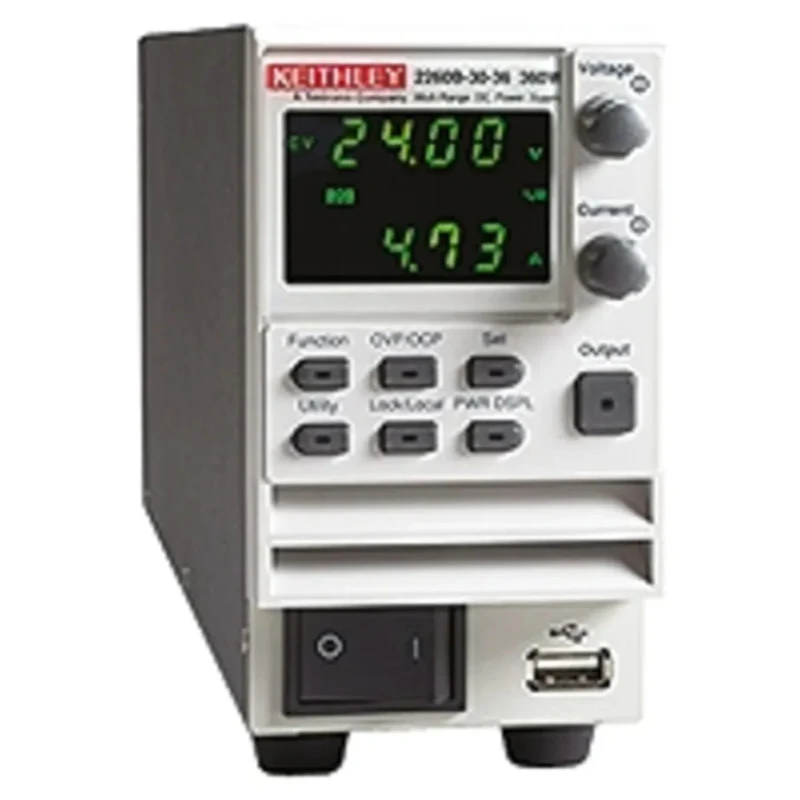

Keithley Digital Bench Power Supply 1 Output 0 to 30 V ac, 360 W, 36 A Max 2260B-30-36

Keithley 2260B-30-36 Digital Bench Power Supply is a high-performance programmable DC power supply offering 360 watts of power from a single output port delivering 0 to 30 volts at up to 36 amperes. This Bench Power Supply provides digital control for accurate and flexible voltage and current output with multiple connectivity options including USB and LAN, with optional GPIB interface for automated test environments.

Designed for industrial and laboratory use cases such as environmental testing, stress tests, accelerated life testing, LED component and high power device testing, automotive component testing, battery research, and production testing. The unit supports combining multiple units in series or parallel configurations to expand voltage or current capacity, controlled by a master-slave configuration that displays aggregate voltage and current.

Key features include programmable voltage/current rise and fall times to avoid damage from inrush currents to sensitive components, constant current priority to reduce overshoot, and the ability to simulate battery outputs via programmable output resistance. Its compact width of 71 mm allows efficient rack mounting, saving bench space and enabling multi-unit configurations in standard racks.

The 2260B-30-36 is RoHS compliant and manufactured in Taiwan, Province of China. It operates within an ambient temperature range of 0°C to 50°C and includes an IEC 320 plug type for connection to a 240 V AC supply. The product is designed for users requiring reliable, programmable, and high-current DC power supply solutions in test, measurement, and industrial environments.

Single output, 360 W programmable DC power supply with 0-30 V and 0-36 A output. Supports USB and LAN interfaces with optional GPIB for automated control. Configurable programmable voltage and current rise/fall times to protect devices.

Compact design fits up to six units in a standard rack width to save bench space. Constant current priority setting minimizes voltage and current overshoot when powering LEDs. Programmable output resistance allows battery simulation during testing.

Suitable for applications including environmental, LED, automotive, and battery testing. Operates in ambient temperature range from 0 to 50°C with RoHS certification.

For additional accessories, software updates and application notes, users are advised to consult the official Keithley product resources and datasheets. Suitable for industrial, laboratory, manufacturing, and R&D test applications. Browse more products in the Bench Power Supplies category on EnvMart.
