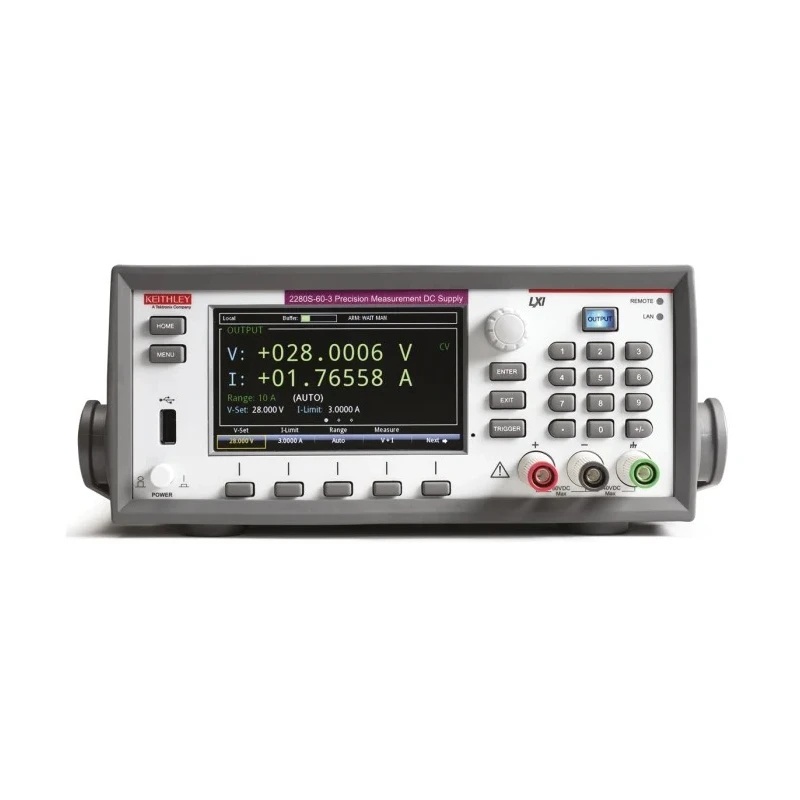

Keithley Digital Bench Power Supply 1-Output 0 to 60 V AC, 192 W, 3.2 A Max 2280S-60-3

Free Delivery in India | Lowest Global Shipping Charges

Keithley Digital Bench Power Supply 1-Output 0 to 60 V AC, 192 W, 3.2 A Max 2280S-60-3

Name: Keithley Digital Bench Power Supply 1-Output 0 to 60 V AC, 192 W, 3.2 A Max 2280S-60-3
Brand: Keithley
SKU: 378604
Price: 20.22 USD
Availability: InStock



Category Bench Power Supplies Brand Keithley Condition New

Specifications

Country of Origin	China
Brand	Keithley
Power	192W
Height	107mm
Model	2280S-60-3
Depth	415mm
Width	255mm
Output type	Digital
Maximum Operating Temperature	40°C
Minimum Operating Temperature	0°C
Plug Type	IEC 320
Interfaces	USB-TO-GPIB Interface Adapter)
Number of outputs	1
Maximum Output Current	3.2A
Standards/Approvals	RoHS
Maximum Output Voltage	60V
Minimum Supply Voltage	0V
Digital/Analogue	Digital
Supported Number of Displays	1
Minimum Output Voltage	0V ac
Minimum Output Current	0A

Key Features

High-precision output with 0.02% voltage programming and readback accuracy.
TFT LCD display for easy monitoring and control.
Supports a single output channel for versatile bench use.
Low output noise power ideal for sensitive measurements.
Four load current measurement ranges for accurate current characterization.
Built-in plotting functions to monitor trends such as drift.
Operating temperature range from 0°C to 40°C ensures reliable performance.
Equipped with USB-TO-GPIB interface adapter for connectivity.

Product Description

Keithley 2280S-60-3 digital bench power supply is designed for industrial and laboratory use offering 1 output channel with voltage from 0 V to 60 V AC, delivering up to 192 W of power and a maximum current of 3.2 A. It features a high-precision output with 0.02% voltage programming and readback accuracy combined with remote sensing to ensure the desired voltage is precisely applied to the load.

This compact power supply is equipped with a TFT LCD display which provides clear visualization of output voltage and current parameters, making it suitable for precision testing and measurement applications. The device supports four load current measurement ranges allowing detailed characterization of devices from full load currents to small sleep mode currents with DMM-quality accuracy.

With built-in plotting functions, users can monitor trends such as voltage or current drift over time, enhancing diagnostics capabilities during research and development or quality control processes.

The 2280S-60-3 is suitable for a wide range of industrial, laboratory, and manufacturing applications requiring precise power control with clean output power. It is compliant with RoHS standards ensuring environmental and safety requirements are met.

Operating within temperatures from 0°C to 40°C, it boasts compact dimensions (255mm width, 415mm depth, and 107mm height), allowing easy integration into testing benches or limited spaces. The unit includes an IEC 320 plug type and supports connection through a USB-TO-GPIB interface adapter, enabling communication with automated test equipment setups.

Country of origin: China. Product is new. High-precision output with 0.02% voltage programming and readback accuracy. TFT LCD display for monitoring output parameters. Single output channel with variable voltage up to 60 V AC.

Multiple load current measurement ranges for detailed characterization. Built-in plotting for trend analysis such as drift. Low output noise for sensitive measurement environments. Operates between 0°C and 40°C ambient temperatures.

Compact footprint for ease of bench placement. Included USB-TO-GPIB interface adapter for connectivity. RoHS compliance ensuring environmental safety. Explore more premium Bench Power Supplies at EnvMart for reliable industrial and laboratory power solutions.
