BK Precision Analogue Bench Power Supply 3-Output 0 V to 5 V 375 W 3 A Max BK9132C
Specifications
| Country of Origin | China |
|---|---|
| Brand | BK Precision |
| Power | 375W |
| Height | 88.2mm |
| Model | BK9132C |
| Depth | 445mm |
| Width | 214.5mm |
| Output type | Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | Standard USB (USBTMC-compliant), RS232 supporting SCPI commands for remote control |
| Number of outputs | 3 |
| Maximum Output Current | 3A |
| Standards/Approvals | ISO 16750 |
| Calibrated | UKAS |
| Maximum Output Voltage | 5V |
| Maximum Supply Voltage | 80V |
| Minimum Supply Voltage | 0V |
| Digital/Analogue | Analogue |
| Minimum Output Current | 0A |
Key Features
- Three isolated and programmable linear DC outputs for versatile use.
- Output voltage range from 0 V to 5 V with a max current of 3 A per channel.
- Power rating of 375 W for stable supply during demanding applications.
- Features USB and RS232 interfaces supporting SCPI commands for remote control.
- Operating temperature range from 0°C to 40°C suitable for laboratory environments.
- Low noise output with high resolution controls at 1 mV and 1 mA increments.
- Includes UKAS calibration ensuring high measurement accuracy and reliability.
- Compact 19-inch half-rack size enables convenient side-by-side mounting in test setups.
Product Description
BK Precision BK9132C analogue bench power supply is a reliable 3-output linear programmable DC power supply designed for industrial, laboratory, and test measurement applications. It offers three isolated outputs that can be independently controlled or combined in series or parallel to supply higher voltages or currents up to 5 V at 3 A maximum.

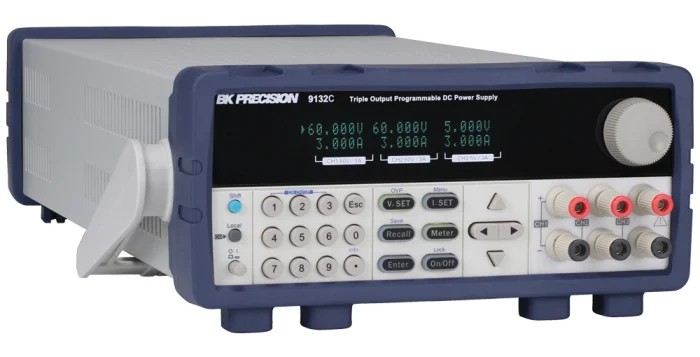

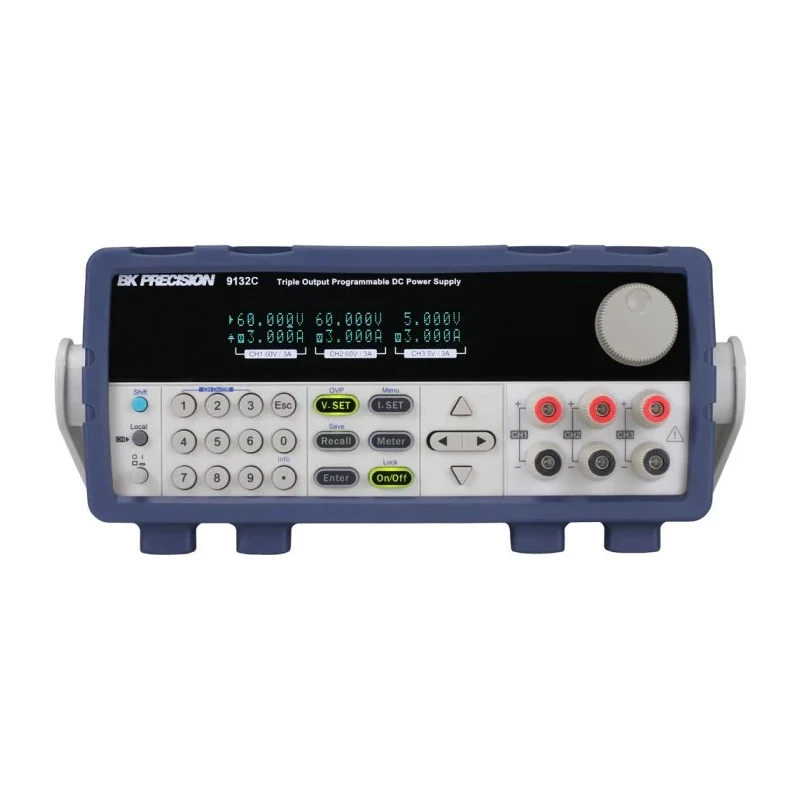

The device features low noise linear regulation and high resolution voltage and current adjustments with 1 mV and 1 mA increments, ideal for sensitive electronics testing. The front panel provides intuitive rotary knobs and pushbuttons for easy programming and fast setting recall, with the ability to store up to 36 configurations.
Remote control is facilitated via standard USB (USBTMC compliant) and RS232 interfaces with SCPI command support, compatible with NI LabVIEW driver and softpanel software for advanced test automation and data logging. Safety features include built-in overvoltage and overtemperature protection as well as a keylock function.
Its compact 19-inch half-rack chassis allows flexible installation in instrumentation racks, making it suitable for research laboratories, production testing, and educational settings. Calibration certified to UKAS standards ensures trustworthy measurement accuracy and traceability.
Three electrically isolated programmable outputs with adjustable voltage and current. Interface options include USB and RS232 for PC remote control and monitoring. Comprehensive safety protections including OVP, OTP, and keylock.
Programming modes support series, parallel, and tracking output configurations. Provides 375 W maximum power output for varied testing needs. Calibrated to UKAS standard for high-precision measurements. Compact design with dimensions 214.5 mm width, 88.2 mm height, and 445 mm depth.
Standards compliant with ISO 16750 ensuring quality and reliability. Suitable for use in industrial, laboratory, construction, HVAC, manufacturing, and electronics test environments. Explore comprehensive power supply options at EnvMart for your industrial and laboratory measurement needs.
Explore more products in our Bench Power Supplies category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output voltage of this model is 5 V.
This unit features three isolated outputs that can be independently controlled.
It provides a maximum current of 3 A per channel.
It includes a standard USB interface that is USBTMC-compliant and supports SCPI commands for remote control.
The power rating of this model is 375 W, suitable for demanding applications.
The operating temperature range is from 0°C to 40°C.
This model has dimensions of 214.5 mm in width, 88.2 mm in height, and 445 mm in depth.
It includes built-in overvoltage protection (OVP), overtemperature protection (OTP), and a keylock function.
Yes, it is calibrated to UKAS standards, ensuring high measurement accuracy and reliability.
It is suitable for industrial, laboratory, construction, HVAC, manufacturing, and electronics testing environments.
The voltage and current adjustments have a resolution of 1 mV and 1 mA increments, respectively.
It complies with ISO 16750 standards, ensuring quality and reliability.
