BK Precision Dual Channel Arbitrary Waveform Generator 10 MHz Frequency 1 Hz Min, 14-bit 150 MSa/s LCD Display BK4053B
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 1 μHz |
| Display Type | LCD |
| Brand | BK Precision |
| Height | 96mm |
| Length | 263mm |
| Model | BK4053B |
| Connector Type | USB, LAN |
| Gross Weight | 3.3kg |
| Width | 295mm |
| Maximum Operating Temperature | 40°C |
| Inputs | 1 |
| Minimum Operating Temperature | 0°C |
| Interfaces | LAN, USB device port (USBTMC-compliant), and front panel |
| Number Of Channels | 2 |
| Sweep | Linear, Logarithmic |
| Interface Type | LAN, GPIB, USB, USB Host |
| Maximum Output Amplitude | 10V Pk-Pk |
| Standards/Approvals | CE |
| Maximum Frequency | 10MHz |
| Minimum Frequency | 1Hz |
| Minimum Pulse Width | 32.6ns |
| Maximum Frequency Triangle Ramps | 500kHz |
| Maximum Pulse Width | 1000000 s |
| Maximum Storage | 1000 |
| Rise - Fall Time | 16.8ns |
| Waveform Memory/Channel | 2 |
Key Features
- Equipped with a high performance 14-bit, 150 MSa/s arbitrary waveform generator.
- Features a large 4.3-inch color LCD display for intuitive operation.
- Supports linear and logarithmic sweep modes for flexible signal generation.
- Two independent channels with individual output control and synchronization capability.
- Includes extensive modulation functions such as AM, DSB-AM, ASK, FM, FSK, PM, PSK, and PWM.
- High resolution frequency counter and 196 built-in predefined arbitrary waveforms included.
- Offers multiple interfaces including USB, LAN, GPIB, and USB host for versatile connectivity.
- Robust design includes short circuit output protection and supports built-in counter and triggering modes.
Product Description
BK Precision BK4053B is a dual channel Arbitrary Waveform Generator designed for precision and stability in generating sine, square, triangle, pulse, and arbitrary waveforms. It supports operation over a frequency range from 1 Hz minimum to 10 MHz maximum, with 14-bit resolution and a 150 MSa/s sampling rate.
This generator features a clear and user-friendly 4.3-inch LCD color display and numeric keypad interface, enabling easy navigation through its multiple functions including linear and logarithmic sweep, modulation and triggering capabilities.
Its two channels can be individually turned on or off, synchronized for phase alignment, and used for low-jitter square wave clock simulation or serial data validation. Users benefit from extensive modulation options such as AM, FM, PM, and PWM, as well as a built-in frequency counter and 196 predefined waveforms stored in memory.

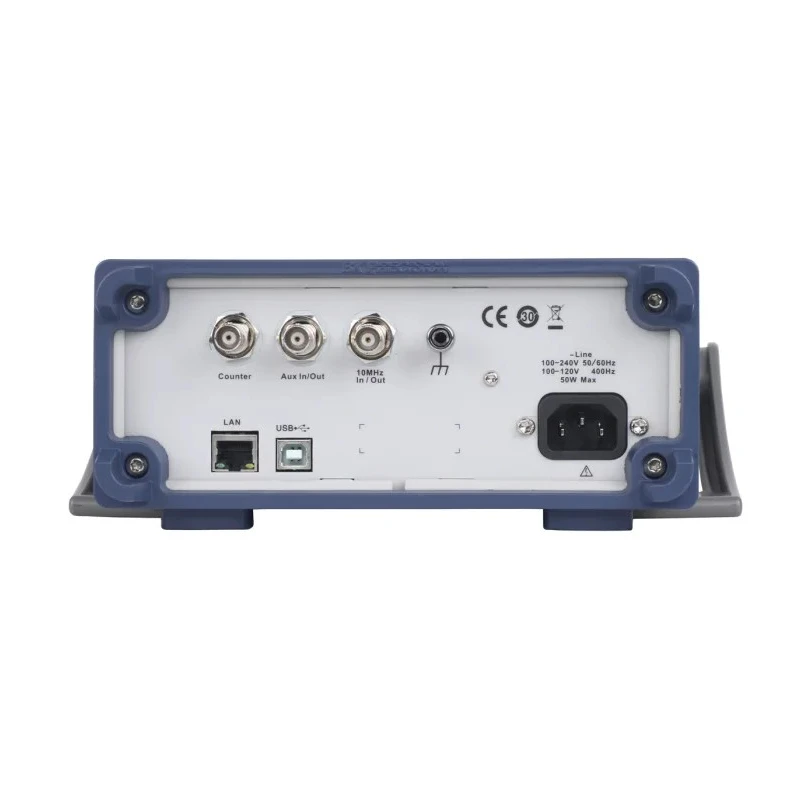

The device connects via USB, LAN, GPIB (with optional adapter), and offers a USB host port, ensuring wide compatibility with external devices and computers. Its internal short circuit output protection enhances operational safety.
Commonly used in industrial, laboratory, manufacturing, and electronic testing environments, this waveform generator suits applications requiring precise signal generation, modulation, and waveform shaping.
High performance 14-bit, 150 MSa/s arbitrary waveform generation. Two independent output channels with flexible control and synchronization. Wide modulation options including AM, FM, ASK, and PWM modes. Comprehensive connectivity with USB, LAN, GPIB, and USB host ports.
User-friendly LCD display and keypad interface. Built-in frequency counter and extensive waveform library. Short circuit output protection for safe operation.
This BK Precision 4050B series Arbitrary Waveform Generator is manufactured in China and carries CE approval standards. Its dimension measures 263 mm in length, 295 mm in width, and 96 mm in height, weighing 3.3 kg. Package contents and accessories vary and should be confirmed at purchase.
Explore a wide range of precision test and measurement instruments at EnvMart to enhance your electronics testing capabilities.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The BK Precision BK4053B operates over a frequency range from 1 Hz to 10 MHz.
This unit features two independent output channels, allowing for individual control and synchronization.
The maximum output amplitude of this waveform generator is 10V peak-to-peak.
It supports various modulation types including AM, DSB-AM, ASK, FM, FSK, PM, PSK, and PWM.
The BK4053B has a resolution of 14 bits, with a minimum frequency resolution of 1 μHz.
This model includes USB, LAN, GPIB, and a USB host port for versatile connectivity options.
It features a 4.3-inch color LCD display for intuitive operation.
The dimensions are 263 mm in length, 295 mm in width, and 96 mm in height, with a gross weight of 3.3 kg.
The operating temperature range for the BK4053B is from 0°C to 40°C.
This generator can produce sine, square, triangle, pulse, and arbitrary waveforms, with 196 predefined waveforms stored in memory.
Yes, it includes short circuit output protection to enhance operational safety.
The minimum pulse width for this model is 32.6 ns.
