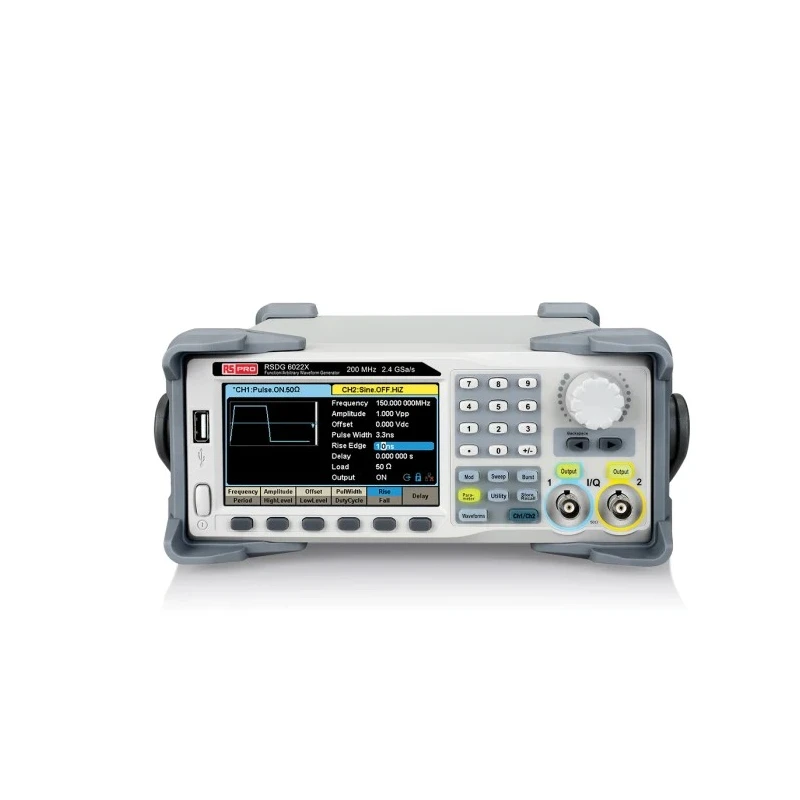

RS PRO Arbitrary Waveform Generator 200 MHz Max Bandwidth, 2-Channel, 1 μHz Resolution SDG6022X

RS PRO SDG6022X Arbitrary Waveform Generator is a precision 2-channel device designed for advanced signal generation, providing a maximum frequency of 200 MHz and a minimum frequency resolution of 1 μHz. This high-fidelity instrument integrates TrueArb and EasyPulse technologies to deliver clean and accurate arbitrary waveforms, surpassing traditional DDS generators.

The generator features a 4.3" touchscreen LCD display enhancing usability with clear visibility and intuitive operation. Its connectivity supports USB host, USB device, and LAN, accommodating diverse interfacing needs in industrial, laboratory, education, and electronic repair environments.

With a 2.4GSa/s sampling rate and 16-bit vertical resolution, the device ensures high precision with 20 V peak-to-peak max output amplitude. It supports various functions such as sweep (linear and logarithmic), burst, harmonic generation, and waveform combining, making it suitable for research, development, electronic hobbyists, and medical device testing.

Built to operate within temperature ranges of 0°C to 40°C, the instrument is RoHS certified, ensuring compliance with environmental standards. The unit measures 260.3 mm in length, 295.7 mm wide, and 107.2 mm in height, with a gross weight of 3.5 kg for easy portability within test labs or on-site testing.

Package contents include one quick start guide, power cord, USB cable, calibration certificate, and BNC coaxial cable, supporting quick setup and calibration. Dual-channel output with 200 MHz maximum bandwidth and 20V peak-to-peak amplitude.

High fidelity 2.4GSa/s sampling rate and 16-bit vertical resolution. TrueArb and EasyPulse technology for superior waveform generation. 4.3" touch screen LCD for user-friendly operation. USB host, USB device, and LAN interface connections.

Sweep, burst, harmonic, and waveform combining capabilities. 196 built-in arbitrary waveforms for versatile applications. RoHS compliant and operates from 0°C to 40°C. Compact and portable design with 3.5 kg weight.

Ideal for industrial, laboratory, educational, electronic repair, and hobbyist applications, this RS PRO model SDG6022X Arbitrary Waveform Generator delivers precision and versatility. Explore additional products in Electrical Test & Measurement for complementary testing equipment through EnvMart.
