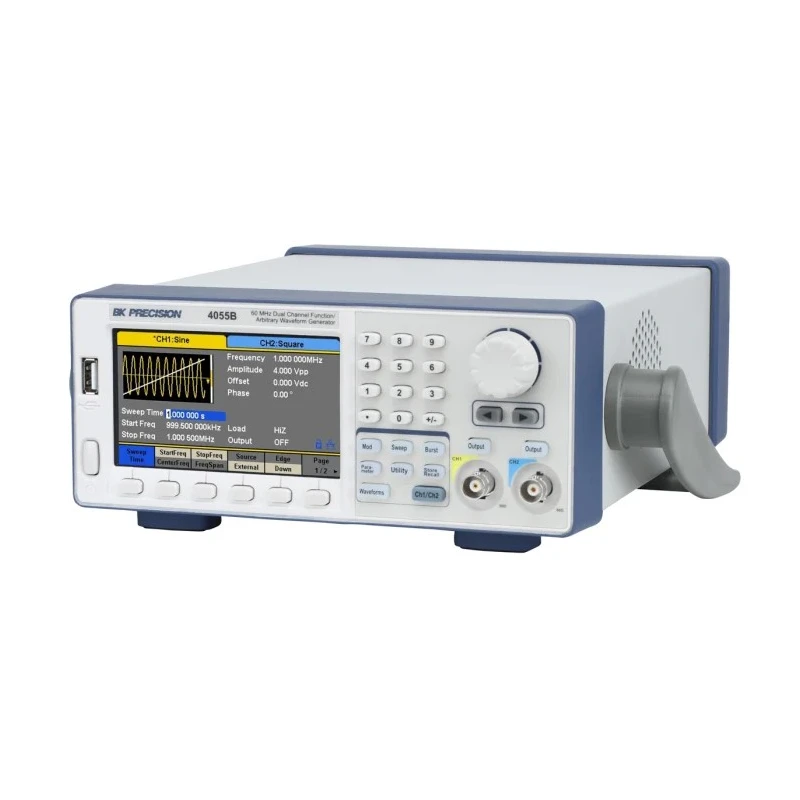

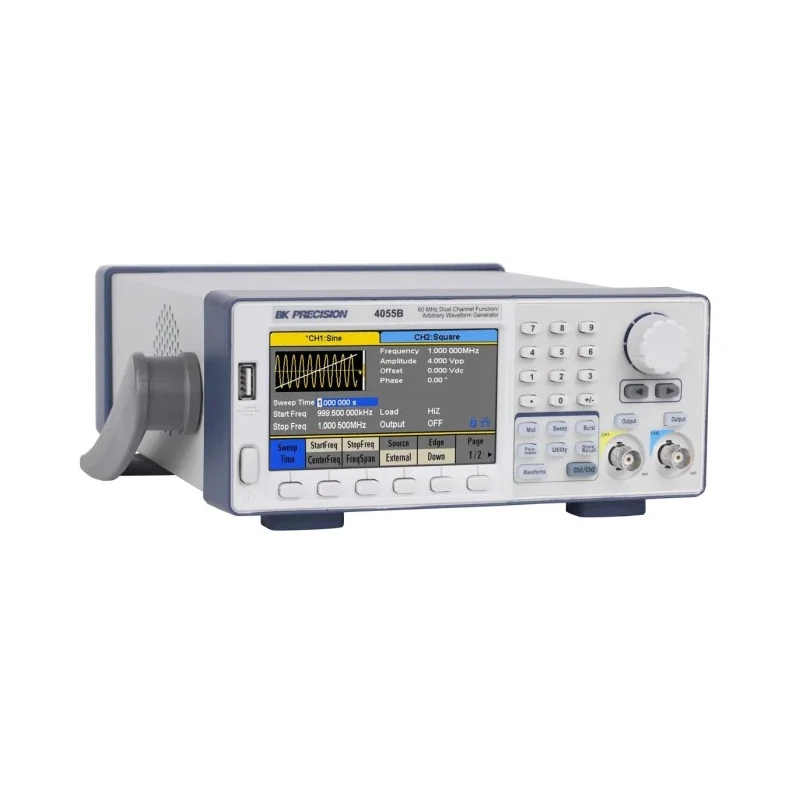

BK Precision 4054 Dual Channel Arbitrary Waveform Generator 25 MHz Max, 1 Hz Min, TFT LCD, USB GPIB Interface BK4054B
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 4 Digits |
| Display Type | TFT LCD |
| Brand | BK Precision |
| Height | 89mm |
| Length | 213mm |
| Model | BK4054B |
| Connector Type | BNC |
| Gross Weight | 2.6kg |
| Width | 281mm |
| Maximum Operating Temperature | 40°C |
| Inputs | Modulation In |
| Minimum Operating Temperature | 0°C |
| Interfaces | USB device port (USBTMC-compliant) with front panel USB host port |
| Number Of Channels | 2 |
| Sweep | Linear, Up or Down, Logarithmic |
| Interface Type | USB, GPIB |
| Standards/Approvals | CE |
| Maximum Frequency | 25MHz |
| Minimum Frequency | 1Hz |
| Minimum Pulse Width | 16ns |
| Maximum Frequency Triangle Ramps | 300kHz |
| Maximum Storage | 10 |
| Rise - Fall Time | 7ns |
| Pulse Resolution | 8ns |
| Waveform Memory/Channel | 16kpts |
| Maximum Pulse Train Repetition Rate | 1MHz |
Key Features
- Generates stable and precise sine, square, triangle, pulse, and arbitrary waveforms.
- Features a large 3.5-inch TFT LCD color display with waveform preview.
- Offers linear, logarithmic sweeps, and multiple modulation functions including AM, FM, PM, PWM.
- Equipped with 16k point waveform memory per channel and a sampling frequency of 125 MSa/s.
- Includes USB and GPIB interfaces for flexible connectivity and control.
- Has built-in short circuit protection on outputs for safety.
- Supports internal/external triggering with gate and burst modes.
- Variable DC offset and adjustable duty cycle for waveform customization.
Product Description
BK Precision BK4054B is a new, advanced dual channel Arbitrary Waveform Generator designed for precise signal generation in industrial, laboratory, and test & measurement applications. It delivers a maximum frequency output of 25 MHz and supports a minimum frequency of 1 Hz, making it versatile for a wide range of signal testing scenarios.

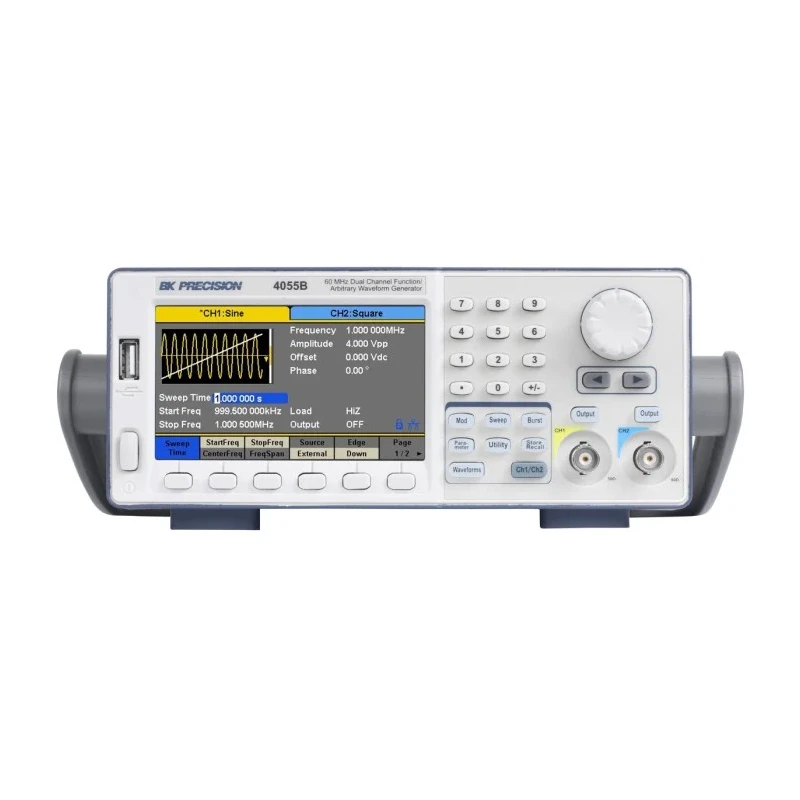

The instrument features a large 3.5-inch TFT LCD color display for clear waveform preview and intuitive user interface with keypad data entry. It is capable of generating stable sine, square, triangle, pulse, and arbitrary waveforms, with a 14-bit resolution and sampling rate of 125 MSa/s for high fidelity output.
With 16k points of waveform memory per channel and support for up to 10 stored instrument and waveform settings, this generator can handle complex modulation and sweeping functions including AM, DSB-AM, ASK, FM, FSK, PM, and PWM. Linear, logarithmic, and sweep modes provide flexible waveform control, along with variable DC offset and adjustable duty cycle.

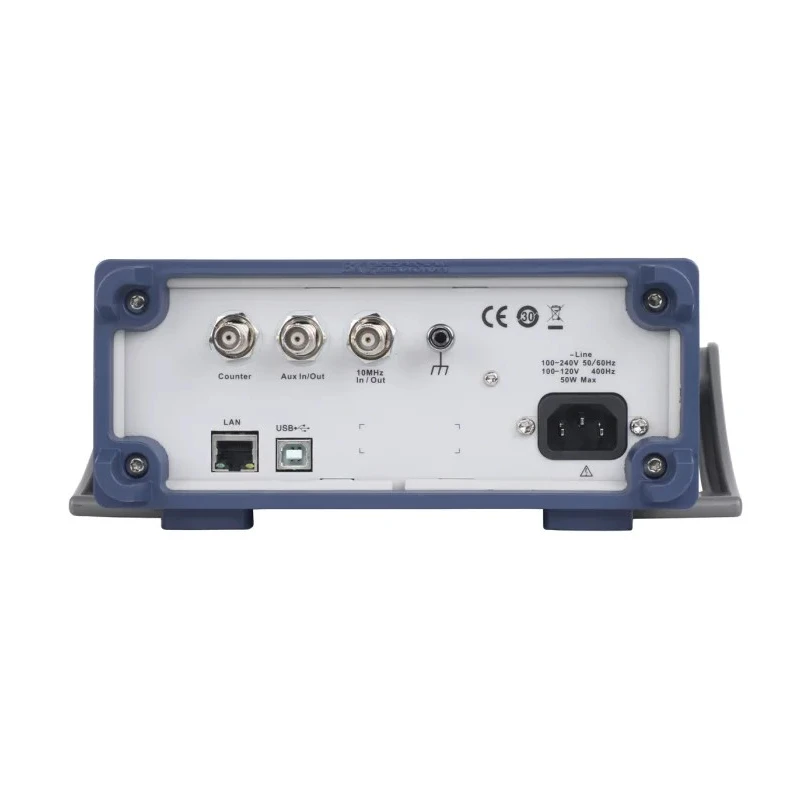

This model supports two independent channels with individual output On/Off control, internal/external triggering, gate, and burst modes. Outputs are protected against short circuits, enhancing durability and safety. Connectivity options include USB device port compliant with USBTMC standards, front panel USB host port, and GPIB interface, suitable for integration into automated test setups.
The BK4054B operates reliably over a temperature range of 0°C to 40°C and includes BNC connectors for output signals. It is ideal for electrical test labs, RF testing, education, and manufacturing environments.
Generates high-quality dual channel arbitrary waveforms with 14-bit resolution. Equipped with a 3.5-inch TFT color LCD and easy keypad control. Comprehensive modulation capabilities and sweeping options. Safe and protected outputs with short circuit protection.
Flexible connectivity with USB and GPIB interfaces.
The package includes the waveform generator unit, AC power cord, USB type A-to-B cable, full instruction manual on CD, and a certificate of calibration. This product is manufactured in China and certified CE compliant.
Explore BK Precision products and other test and measurement instruments on EnvMart for advanced industrial and laboratory applications.
