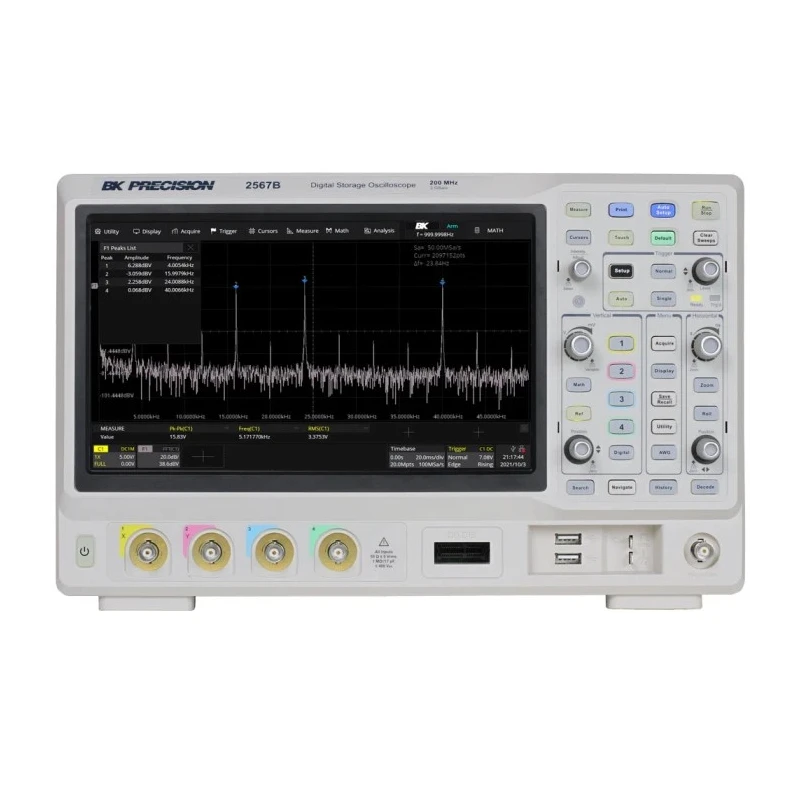

BK Precision 200 MHz 4-Channel Bench Oscilloscope with 10.1 inch Touchscreen BK2567B

BK Precision BK2567B is a 200 MHz Bench Oscilloscope with a high-resolution 10.1 inch TFT-LCD capacitive touchscreen, delivering 1024 x 600 pixels for clear and intuitive operation. This 4-channel oscilloscope supports a maximum sample rate of 2 GSa/s and a memory depth of 200 Mpts, making it suitable for detailed signal analysis in industrial, laboratory, and manufacturing environments.

The series includes advanced debugging capabilities such as zone triggers, Bode plots, and power analysis features that evaluate 11 different power supply parameters. Serial protocol decoding for I2C, SPI, UART, CAN, and LIN are standard, with optional upgrades for protocols like FlexRay and Manchester. DSO models can be upgraded with a logic probe set to become MSO units with 16 digital channels, enhancing signal debugging on mixed-signal systems.

The instrument supports segmented acquisition and history functions, enabling storage and inspection of up to 90,000 frames, and offers waveform update rates up to 120,000 wfm/s in normal mode for fast response. The built-in 50 MHz DDS waveform generator and Bode plot features assist signal testing and analysis. Advanced math capabilities include support for two traces, FFT computation, and a formula editor to create custom calculations.

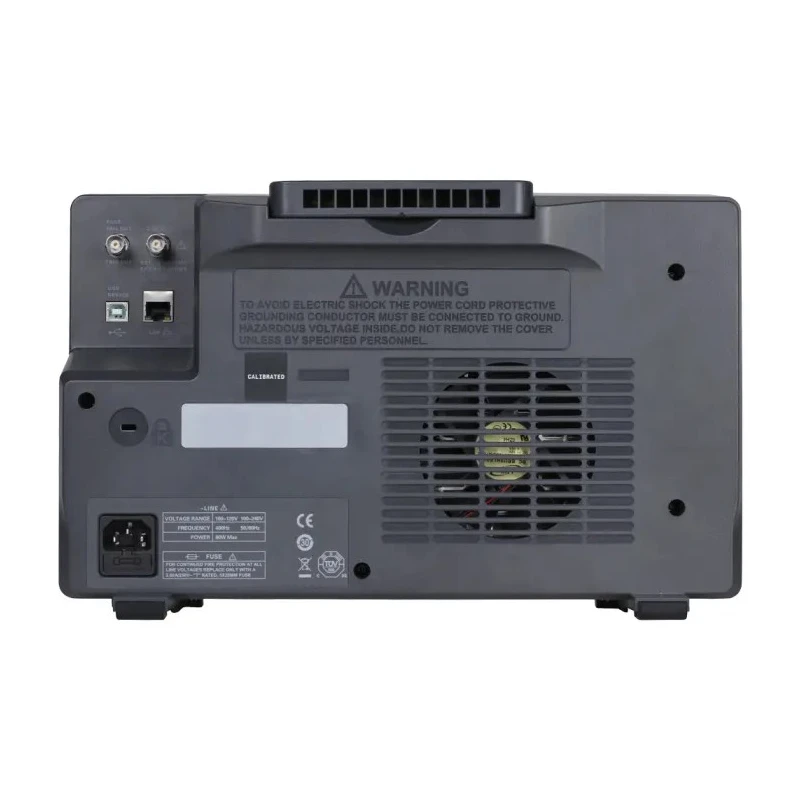

Connectivity is robust with a standard LAN interface, a USBTMC-compliant USB device port, and two USB host ports. Remote control is available through a built-in web server or PC software, enabling integration with test automation setups. Triggering options include Pass/Fail trigger output and external trigger input for versatile testing scenarios.

This bench oscilloscope is made in China and provides reliable, precise measurements for test and measurement applications in electronics, automotive diagnostics, power supply analysis, and research laboratories. Its large touchscreen interface improves user interaction and swift access to advanced features, making it suitable for engineering and development tasks.

Offers a maximum sample rate of 2 GSa/s for precise waveform capture. Equipped with 200 Mpts maximum memory depth to store detailed signals. Supports waveform update rates up to 120,000 waveforms per second in normal mode.

Includes serial bus decoding for I2C, SPI, UART, CAN, and LIN protocols standard. Features a 50 MHz arbitrary waveform generator and Bode plot functionality. Large 1024 x 600 resolution touchscreen display with intuitive gestures.

DSO models upgradeable to MSO with 16 digital channels using logic probe set. Provides power analysis evaluating 11 different power supply parameters. Includes segmented acquisition and history function with storage for 90,000 frames.

Offers advanced math features including FFT operations and formula editing.
