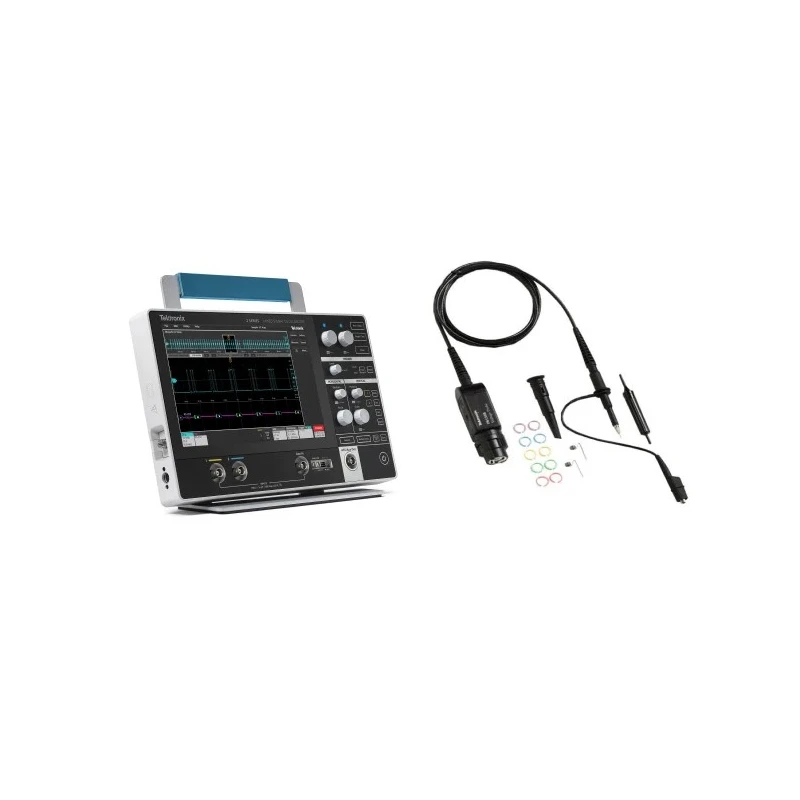

Tektronix MSO2 Series 350 MHz Portable Mixed Signal Oscilloscope 18 Channels MSO2
Specifications
| Country of Origin | China |
|---|---|
| Display Type | Capacitive Touch Display |
| Brand | Tektronix |
| Battery Life | 4h |
| Battery type | Lithium-ion |
| Height | 210mm |
| Model | MSO2 |
| Depth | 40.4mm |
| Width | 344mm |
| Bandwidth | 350MHz |
| Series | MSO2 |
| Screen Size | 10.1 in |
| Plug Type | Power Plug |
| Number Of Channels | 18 |
| Vertical Resolution | 8 bit |
| Interface Type | VESA |
| Oscilloscope Type | Portable |
| Digital Channels | 16 |
| Oscilloscope Form | Mixed Signal |
| Minimum Time Base | 1ns/div |
| Maximum Time Base | 1000s/div |
| Lightweight and Portable | Instrument only 1.8kg (4lbs), Instrument with battery pack one battery 3.2kg (7lbs), two batteries 3.6kg (8lbs) |
| Award Winning Touchscreen UI | Intuitive colour 10.1-inch touchscreen with simplified user Interface giving you easy access to any function |
| Compact | Instrument only H 210mm, W 344mm, D 40.4mm, Instrument with battery pack H 210mm, W 344mm, D 78mm |
| Battery Powered | Optional battery pack supports two hot-swappable batteries for hours of unplugged testing |
| Bench Space Saver | VESA mount compatible with many off-the shelf VESA accessories |
| Built-in VNC Server | View and control your oscilloscope from PC, Tablet or Phone |
| Optional Extras Includes | Protective Cases, Battery Pack, Battery Chargers, Probes, 16 Digital Channels, 50 MHz Afg, 4-bit pattern generator, Software (see accessories below) |
Key Features
- Features a compact and lightweight design suitable for portable use.
- Incorporates a 10.1-inch capacitive touch display for intuitive control.
- Supports a minimum time base of 1 ns/div and a maximum of 1000 s/div.
- Equipped with lithium-ion battery delivering up to 4 hours of operation.
- Includes VESA interface compatibility for flexible mounting options.
- Offers 8-bit vertical resolution for accurate signal representation.
- Comes with 16 digital channels and optional advanced digital test features.
- Equipped with built-in VNC server allowing remote control from PC or tablet.
Product Description
Tektronix MSO2 Series MSO2 is a portable mixed signal oscilloscope with 350 MHz bandwidth and 18 channels, designed for professional debugging and electronic testing applications.
Its compact form factor at just 210 mm height, 344 mm width, and 40.4 mm depth makes it ideal for bench or field work. The 10.1-inch capacitive touch display facilitates an intuitive user interface simplifying operation.
The oscilloscope supports a broad time base range from 1 ns/div to 1000 s/div, providing versatility for diverse signal analysis needs. Lithium-ion battery technology offers up to 4 hours of uninterrupted testing.
Equipped with VESA mount compatibility and a built-in VNC server, it allows convenient mounting and remote control from PC or tablets enhancing lab efficiency.
Additional features include 8-bit vertical resolution ensuring precise waveform representation, 16 digital channels, and optional accessories like digital pattern generators and protocol decoders to extend functionality.
The package includes TPP0200 200 MHz 10x probes for each channel, an instrument stand, external power supply, embedded help resources, and a calibration certificate traceable to national standards. The instrument carries a one-year warranty covering all parts and labor.
Features a compact and lightweight design suitable for portable use. Incorporates a 10.1-inch capacitive touch display for intuitive control. Supports a minimum time base of 1 ns/div and a maximum of 1000 s/div. Equipped with lithium-ion battery delivering up to 4 hours of operation.
Includes VESA interface compatibility for flexible mounting options. Offers 8-bit vertical resolution for accurate signal representation. Comes with 16 digital channels and optional advanced digital test features. Equipped with built-in VNC server allowing remote control from PC or tablet.
Compact dimensions of 210 mm height, 344 mm width, and 40.4 mm depth. Delivered with TPP0200 200 MHz, 10x probes, instrument stand, power supply, and calibration certificate.
This oscilloscope is an excellent choice for industrial, laboratory, manufacturing, and electronics research applications requiring high precision and portability. Explore more Oscilloscopes and test equipment options available at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix MSO2 Series has a bandwidth of 350 MHz, making it suitable for a variety of electronic testing applications.
This model supports a total of 18 channels, which includes 16 digital channels for mixed signal analysis.
It features a 10.1-inch capacitive touch display that provides an intuitive user interface for easy operation.
The dimensions of the oscilloscope are 210 mm in height, 344 mm in width, and 40.4 mm in depth, making it compact for portable use.
Yes, it is equipped with a built-in VNC server that allows remote control from a PC, tablet, or phone.
The package includes TPP0200 200 MHz 10x probes for each channel, an instrument stand, an external power supply, and a calibration certificate.
The oscilloscope has an 8-bit vertical resolution, which ensures accurate representation of waveforms.
Yes, it is designed to be lightweight and portable, weighing only 1.8 kg (4 lbs) without the battery pack.
It includes VESA interface compatibility, allowing for flexible mounting options with various off-the-shelf VESA accessories.
It is suitable for industrial, laboratory, manufacturing, and electronics research applications that require high precision and portability.
