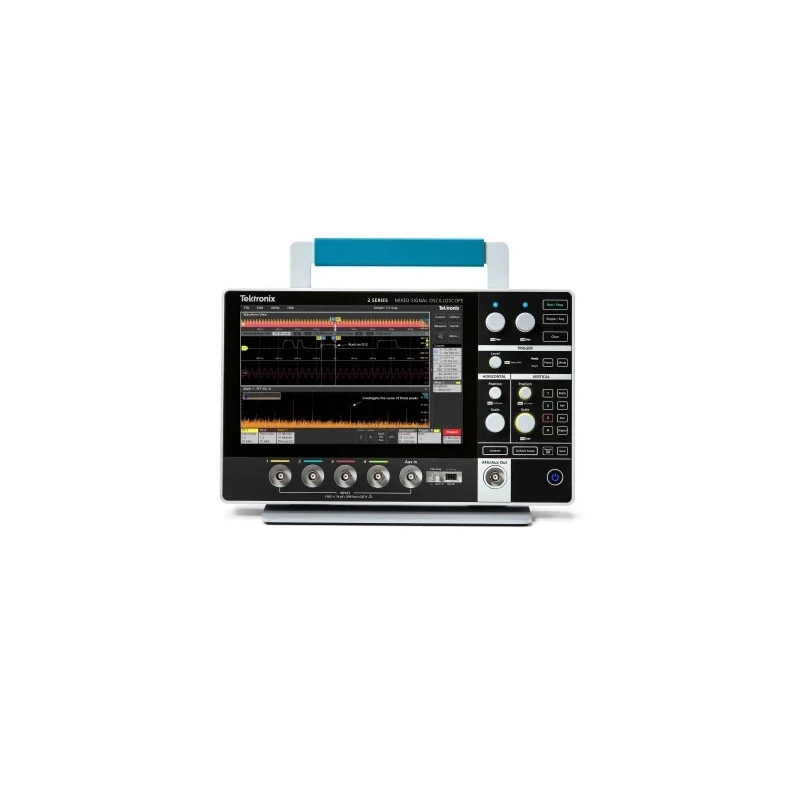

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 4 Channel 200 MHz Bandwidth MSO24 2-BW-200

Tektronix MSO24 2-BW-200, part of the 2 Series MSO family, is an ultra-compact mixed signal oscilloscope offering 4 analog channels with 200 MHz bandwidth and a 10.1-inch capacitive touchscreen display. Designed for electronics debug and test, it delivers high performance in a portable form factor measuring 210mm in height, 344mm in width, and 40.4mm in depth. The oscilloscope supports various communication interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB, making it versatile for a wide range of industrial and laboratory applications.

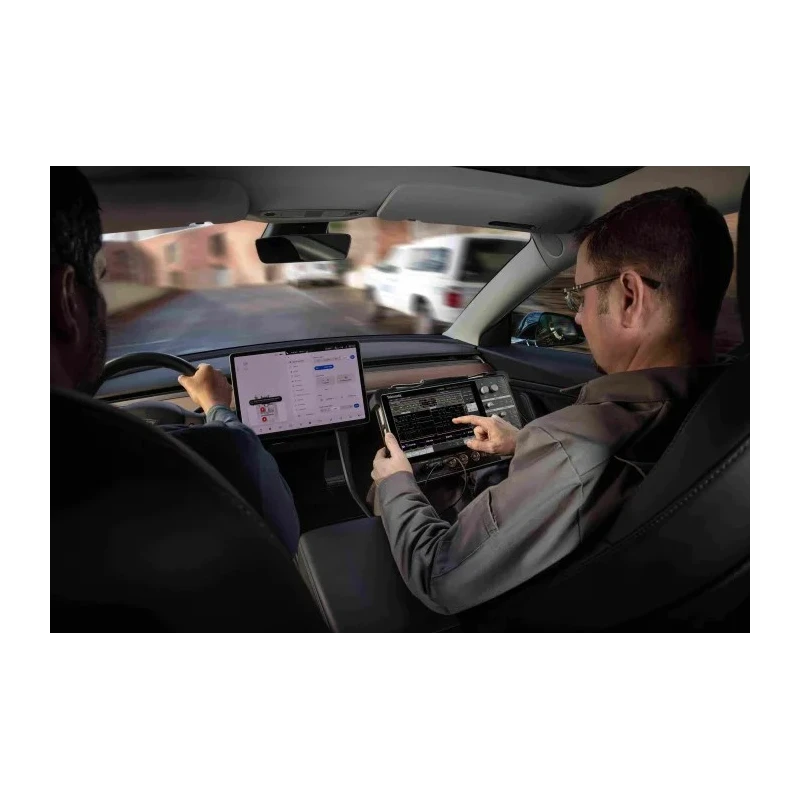

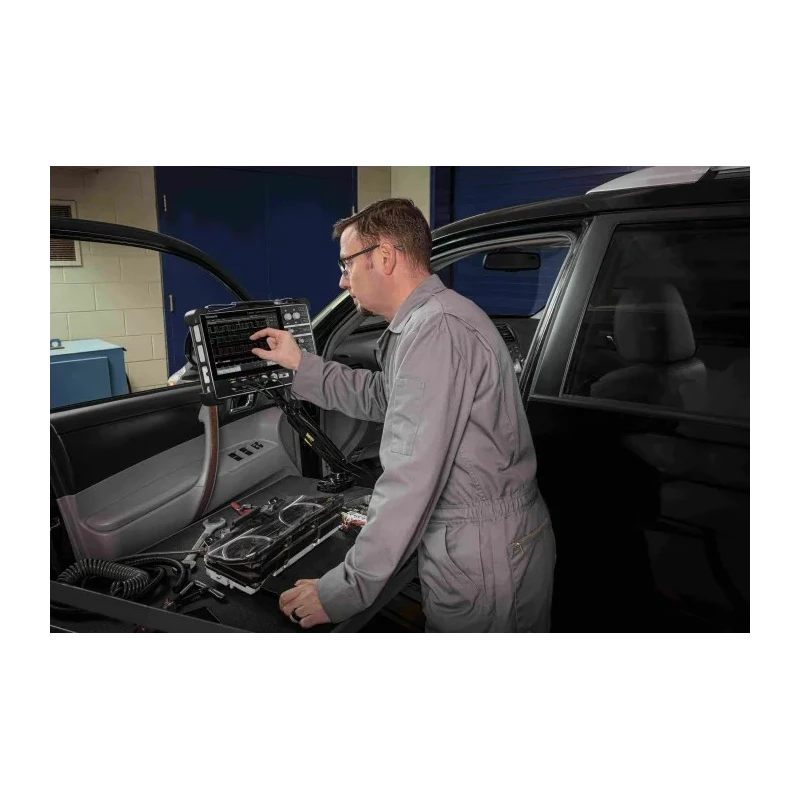

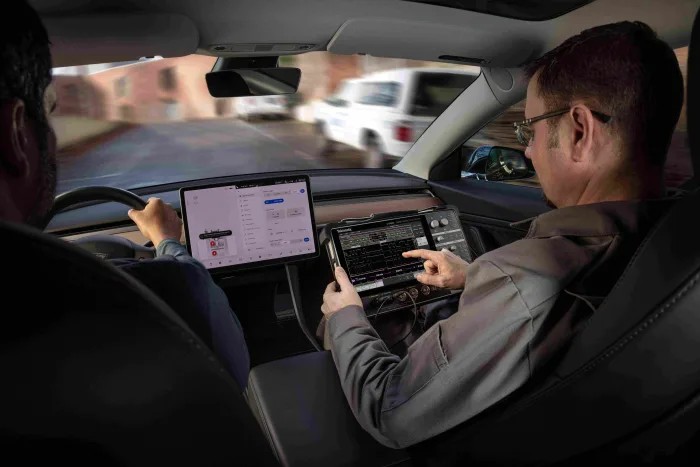

Powered by an optional lithium-ion battery with up to 8 hours of battery life and hot-swappable capabilities, this instrument is ideal for field measurements and mobile test setups. The Tektronix MSO24 2-BW-200 conforms to CE, RoHS, and UL safety standards and features a CAT II safety rating for safe operation in demanding environments. Its lightweight design (1.8 kg without battery, 3.6 kg with two batteries) ensures portability.

The oscilloscope includes key accessories such as four TPP0200 200 MHz 10x probes, an instrument stand, external power supply, embedded help, an installation and safety manual in multiple languages, and calibration documentation traceable to national metrology standards. The compact size and VESA mount compatibility save bench space and provide flexible mounting options.

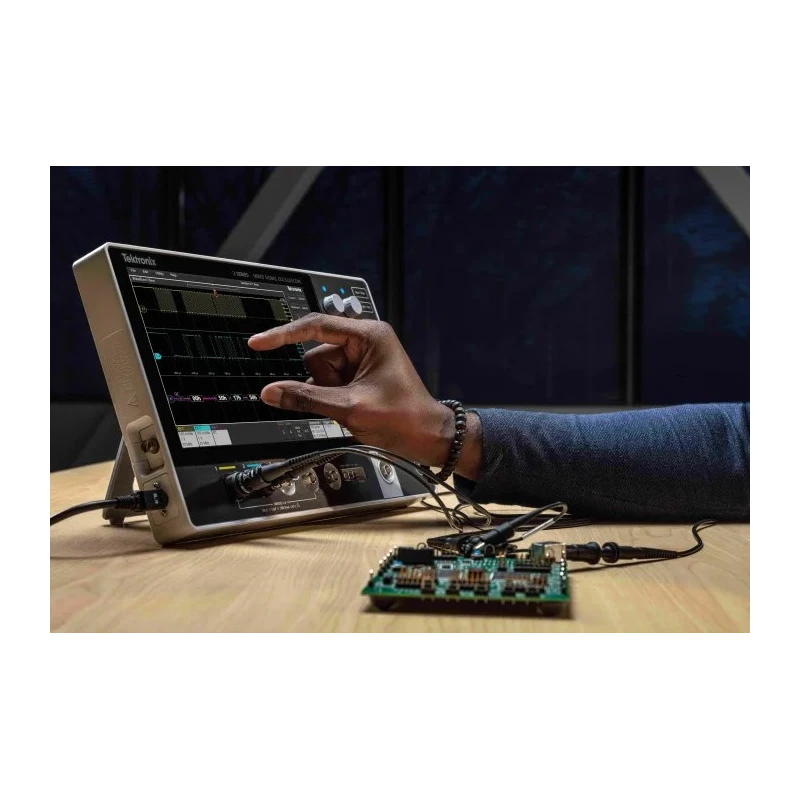

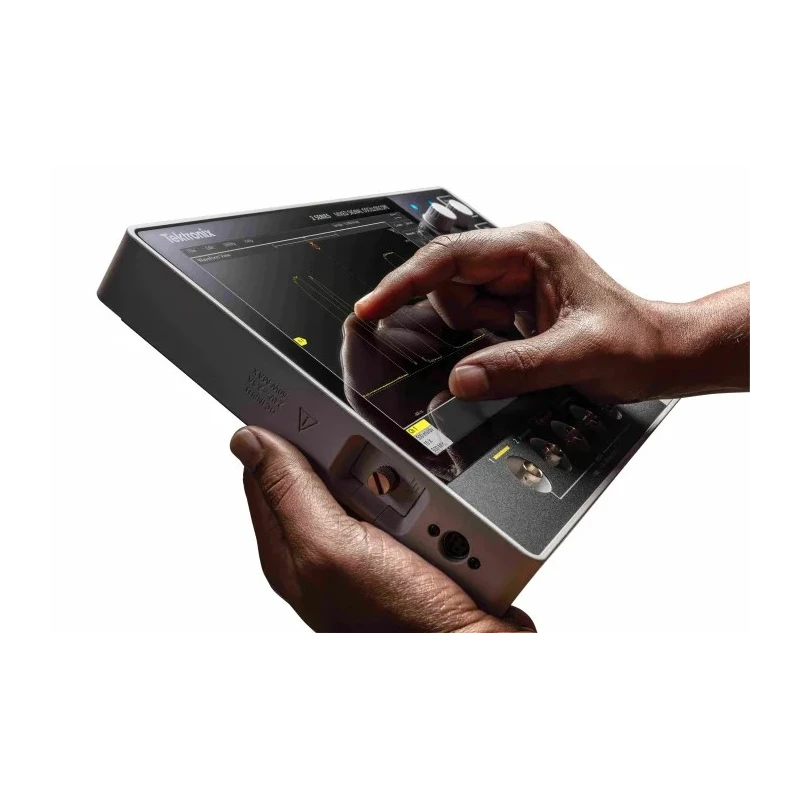

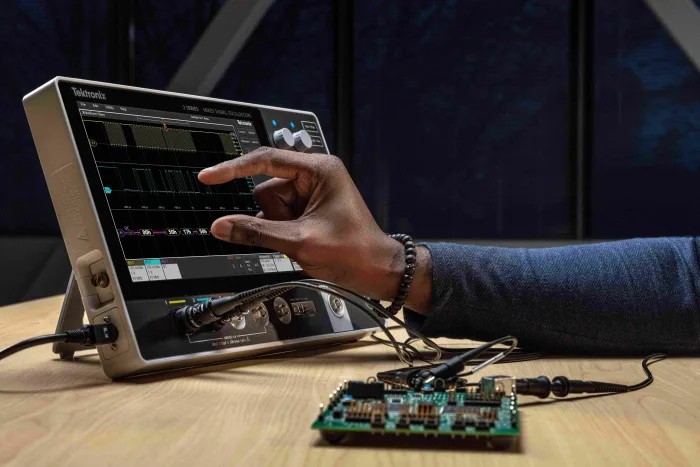

Compact instrument dimensions and lightweight design enhance portability. Large 10.1-inch touchscreen enables intuitive operation and quick access to functions. Supports multiple serial communication interfaces for diverse testing scenarios.

Battery-powered operation allows convenient field use with hot-swappable battery packs. Complies with international safety and quality standards including CE, RoHS, and UL. VESA-compatible mount frees up valuable bench space and allows ergonomic positioning.

Built-in VNC server offers remote access and control from multiple devices.

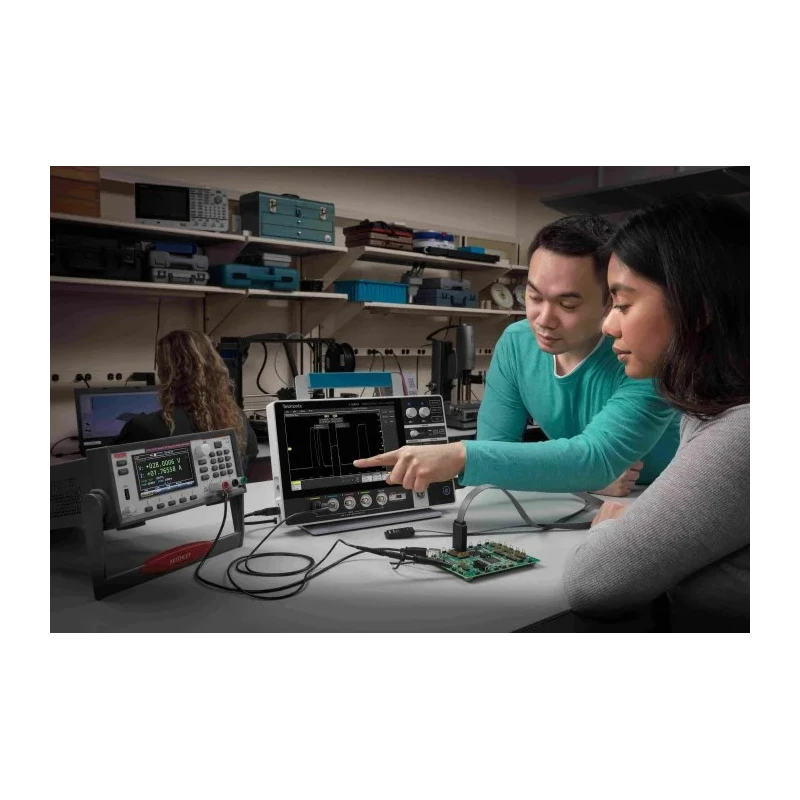

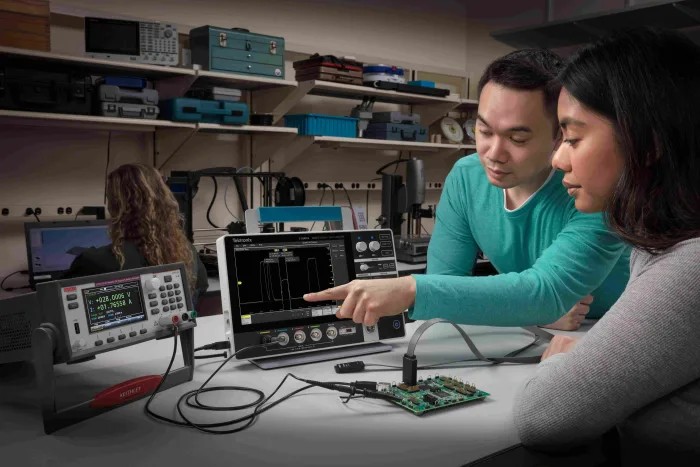

Suitable for industrial, laboratory, manufacturing, electronic design, and field service applications, the Tektronix MSO24 2-BW-200 oscilloscope combines compact form, versatile connectivity, and ease of use to support accurate and efficient signal measurement and analysis. Its comprehensive accessories and robust calibration make it a reliable instrument for professional environments.
