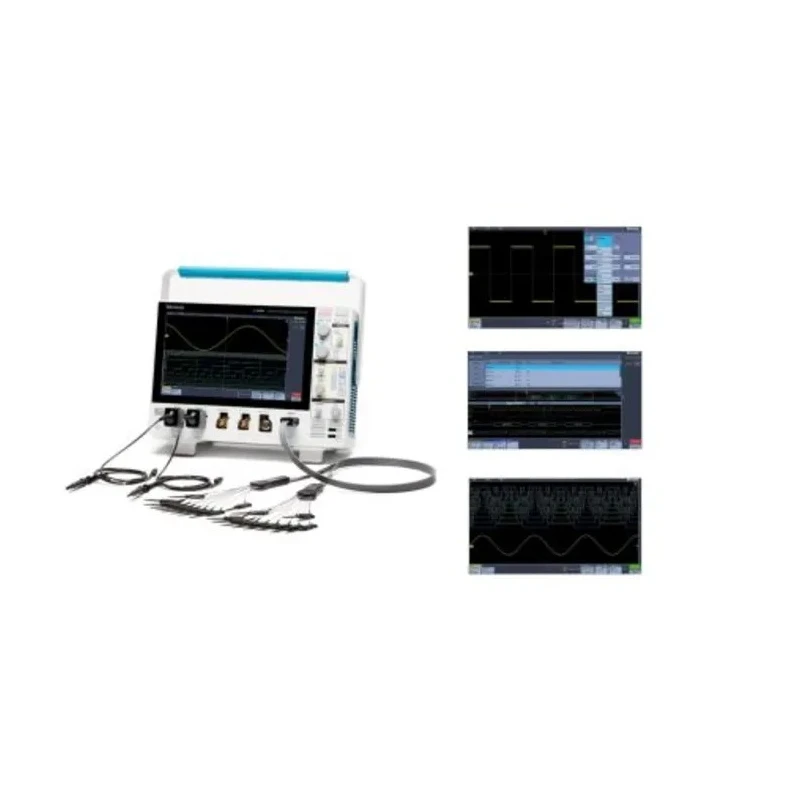

Tektronix MDO34 Series 500 MHz Bench Mixed Domain Oscilloscope 20 Channels MDO34 3-BW-500 + 3-AFG + 3-BND + 3-MSO

Tektronix MDO34 3-BW-500 + 3-AFG + 3-BND + 3-MSO Bench Mixed Domain Oscilloscope features a 500 MHz bandwidth and 20 channels, designed for precision measurement in industrial and laboratory environments. The device supports advanced RF and baseband testing with superior low-level signal accuracy improved by up to 40%.

This oscilloscope features an 11.6-inch HD capacitive touchscreen enabling intuitive interaction via pinch, tap, and swipe. The high sample rate of up to 5 GS/s on each analog channel provides detailed waveform capture. The integrated 1 GHz spectrum analyser and 16 digital channels with mixed-signal oscilloscope (MSO) capability extend testing versatility.

With over 125 trigger combinations and numerous automated measurements, the Tektronix MDO34 series facilitates complex signal analysis for IoT, automotive, aerospace, and communications applications. Upgrade options include bandwidth enhancements up to 3 GHz, a 50 MHz function/arbitrary waveform generator, and application-specific software covering power, security, and serial bus protocols.

The 11.6-inch HD capacitive touchscreen supports easy navigation and signal manipulation. Low-level signal measuring accuracy is enhanced by 40%, significantly improving test precision. High sample rate of 5 GS/s per analog channel captures fast signal details.

Includes a hardware-integrated 1 GHz spectrum analyser for RF signal analysis. 16 digital MSO channels and advanced triggering options enhance multi-domain testing. Upgradeable bandwidth to 3 GHz and available arbitrary/function generator options.

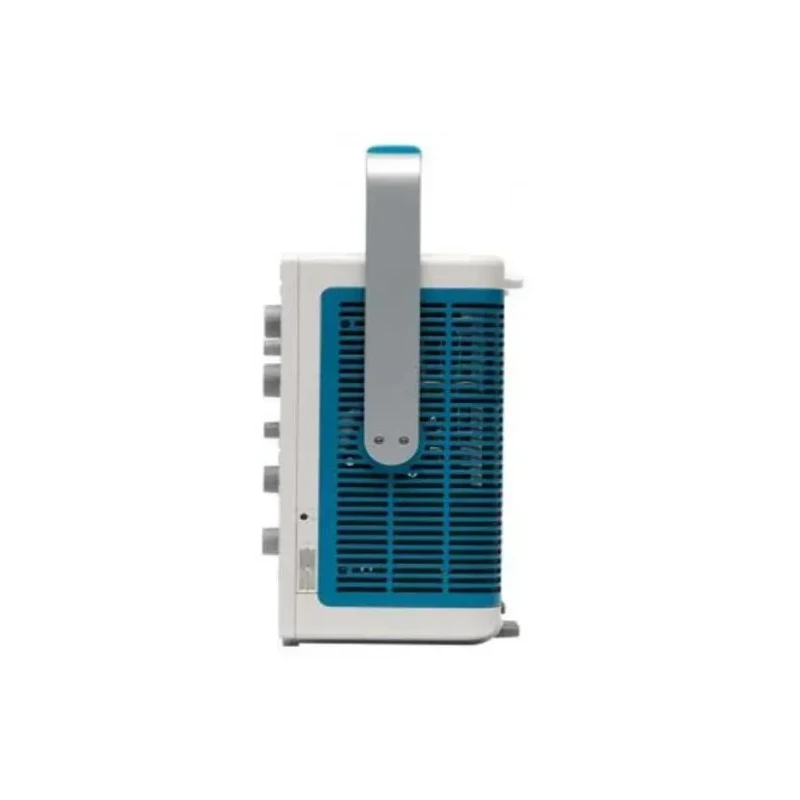

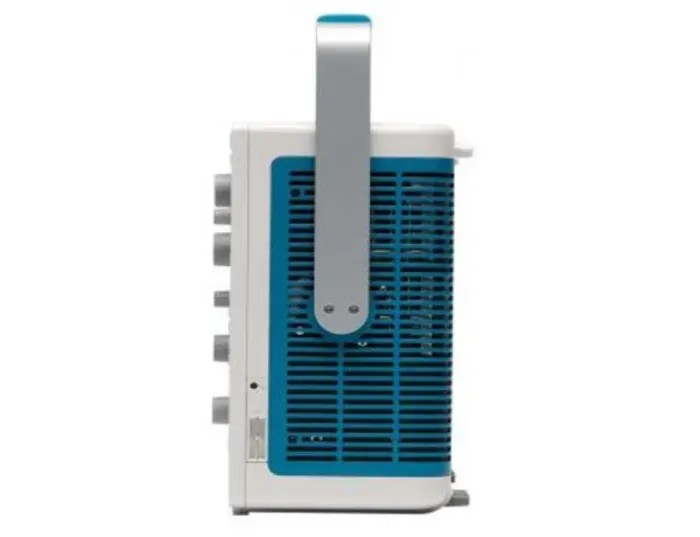

ISO 9001 standard ensuring high quality and performance consistency. Compact bench-size with dimensions 370 mm width, 148.6 mm depth, and 252 mm height fits various workspaces.

This mixed domain oscilloscope is suitable for industrial testing, telecommunications engineering, research laboratories, manufacturing quality control, and educational institutions. Its combination of digital and RF testing capabilities enables comprehensive signal characterization and problem-solving. For additional accessories and software options, users can choose from probes, GPIB to USB adapters, deskew pulse generators, and bundled software solutions to customize their instrument build.
