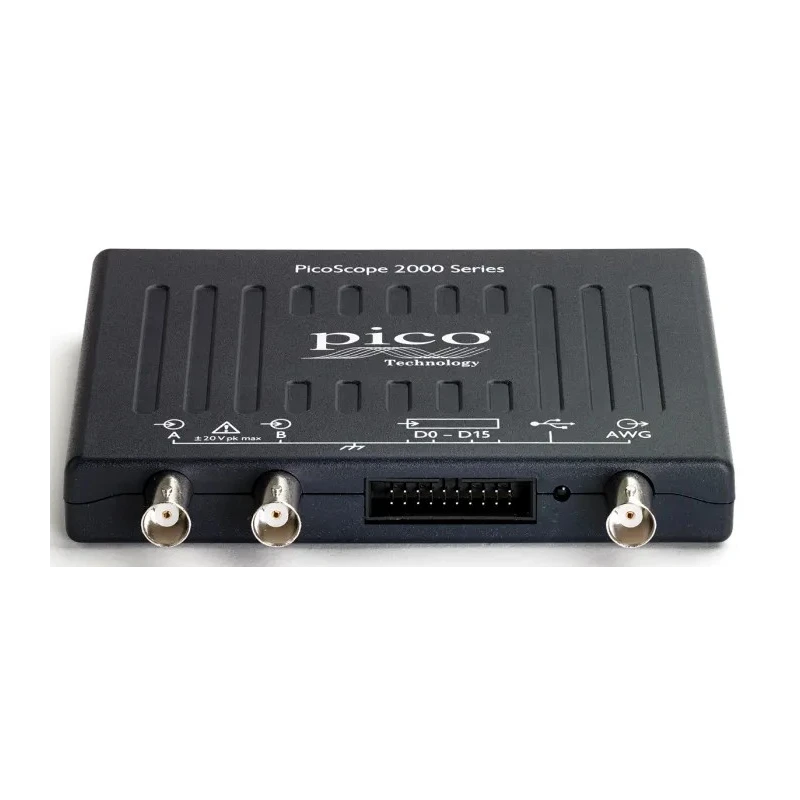

Pico Technology 100 MHz PC Based Mixed Signal Oscilloscope 16-Channel USB Powered PicoScope 2208B MSO

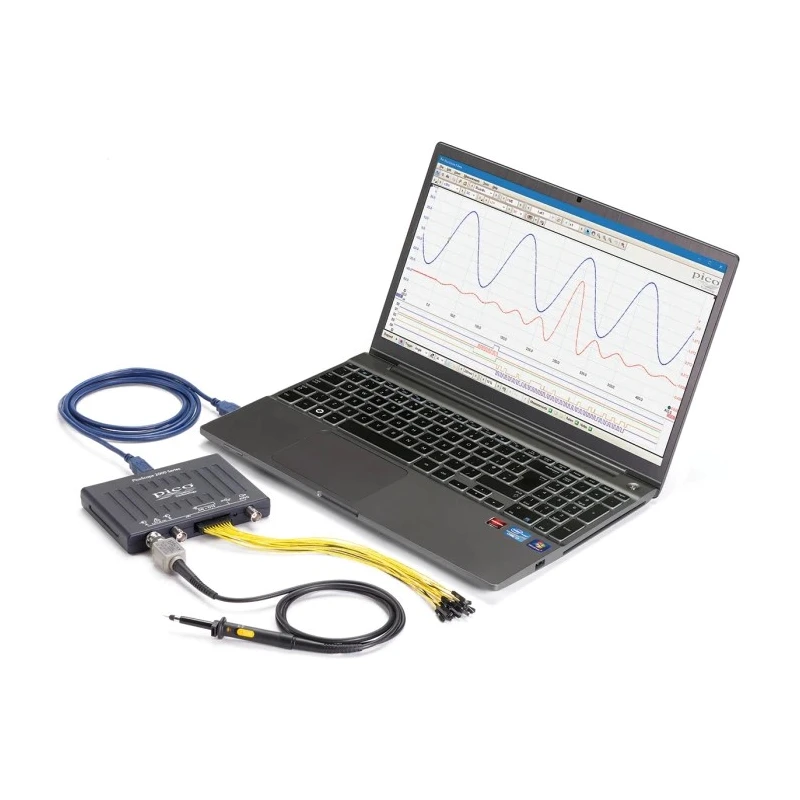

Pico Technology PicoScope 2208B MSO is a 100 MHz PC Based Mixed Signal Oscilloscope providing 16 digital and 2 analogue channels designed for comprehensive high-speed waveform visualisation and measurement. It is USB connected and powered for convenient operation.

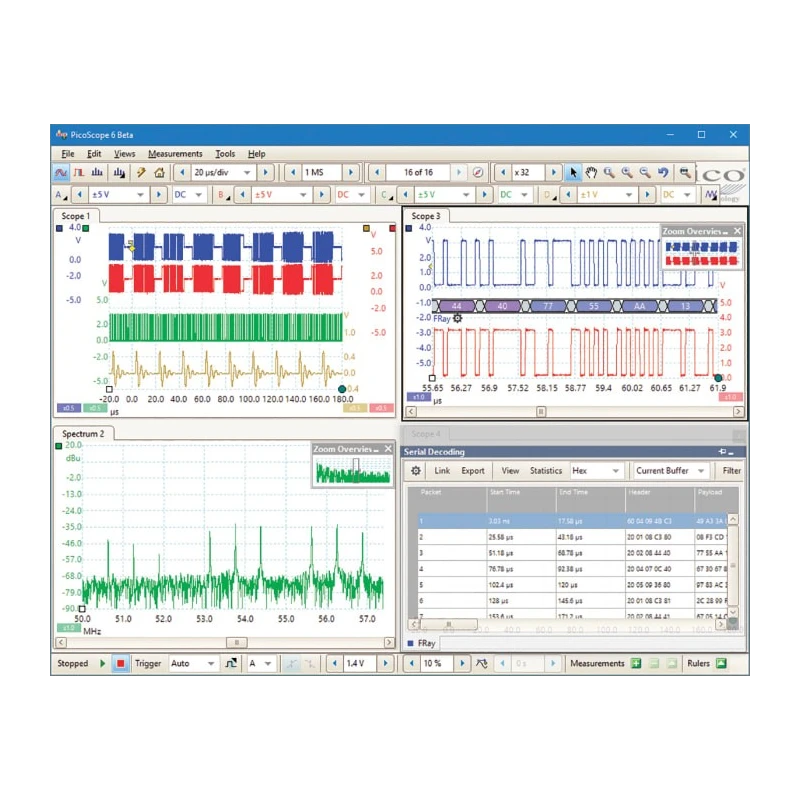

This oscilloscope features a bandwidth of 100 MHz with a sampling rate of up to 1 GSa/s and a large 128 MS buffer, enabling detailed captures of rapid signals with excellent resolution. The device supports advanced analysis capabilities including serial bus decoding, FFT spectrum analysis, and function/arbitrary waveform generation.

Compact in size (130 mm × 104 mm × 18.8 mm), the PicoScope 2208B MSO integrates input capacitance of 8 pF, 200 kohm input impedance, with minimum vertical sensitivity of 4 mV/div up to a maximum vertical sensitivity of 4 V/div. It has a vertical resolution of 8 bits and rise time of 3.5 ns, suitable for precise signal diagnostics.

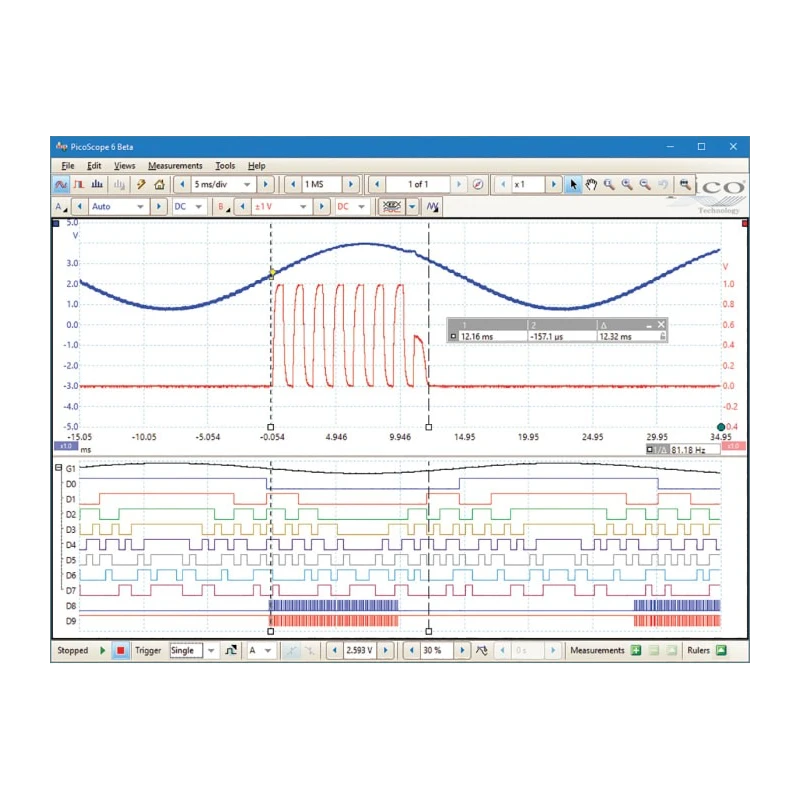

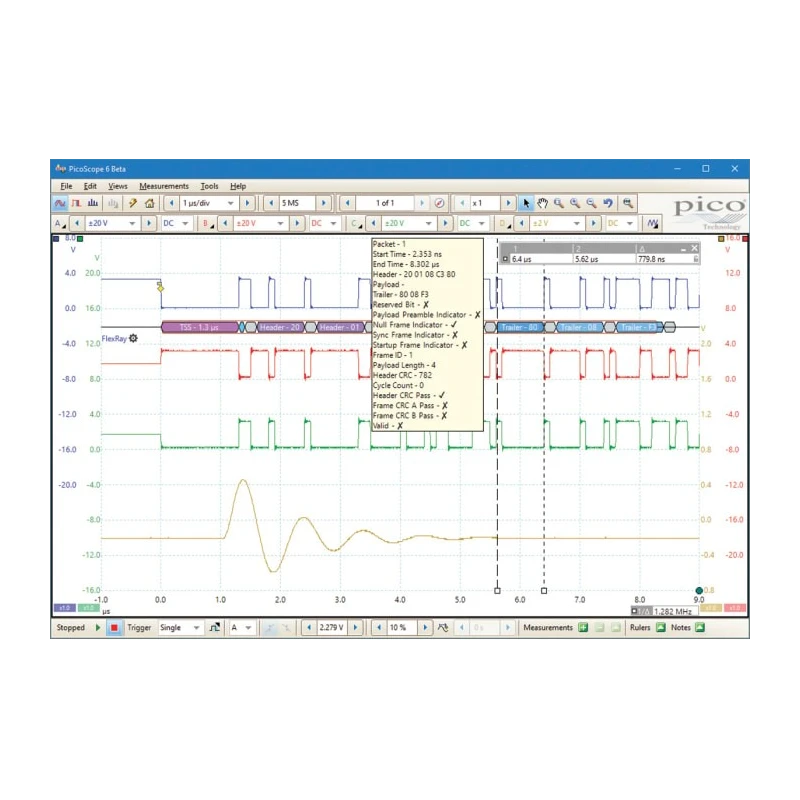

It includes a comprehensive software suite, PicoScope 6, compatible with Windows 7, 8, and 10, supporting 32-bit and 64-bit platforms, facilitating powerful measurement, monitoring, and serial decoding tasks in both industrial testing and educational environments. Several serial interfaces such as CAN, IIC, LIN, RS232, SPI, UART, and USB are supported, expanding its connectivity options.

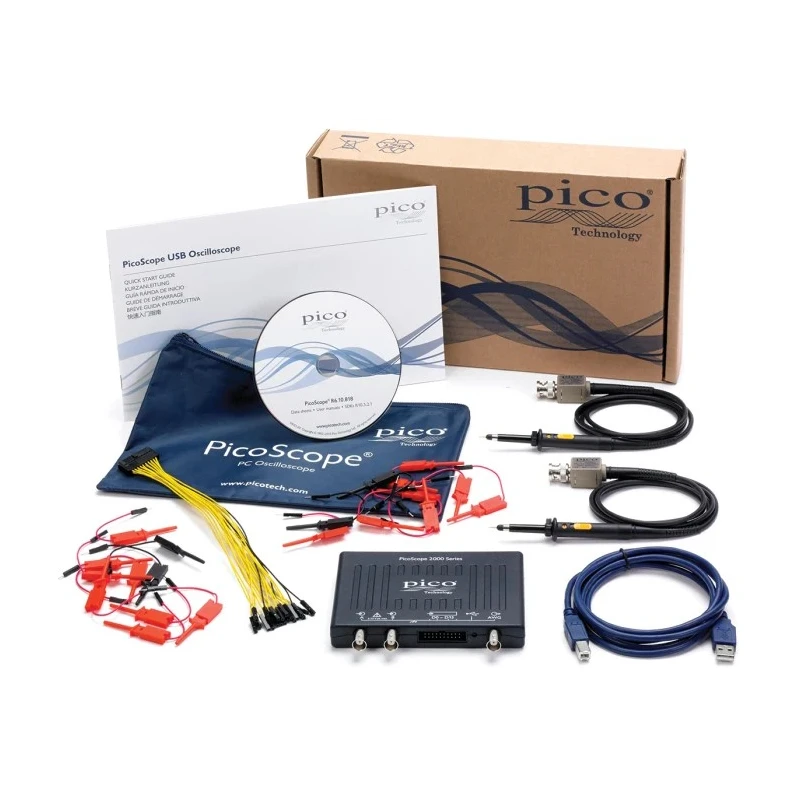

The product is supplied with USB 2.0 cable, two passive probes, a digital input cable, 20 logic test clips, a quick start guide, and software/reference CD. It is CE compliant to standard EN 61010-1:2010 and manufactured in the United Kingdom.

PicoScope 2208B MSO is suited for applications in design, test & measurement, servicing, fault finding, monitoring, and repairs across electrical, electronic, laboratory, and industrial sectors.

Explore more in the EnvMart Oscilloscope category for a wide range of test and measurement instruments. Features 16 digital channels and 2 analogue channels supporting mixed signal analysis. Bandwidth of 100 MHz with a high sampling rate of up to 1 GSa/s and 128 MS buffer memory.

Includes serial bus decoding and advanced waveform analysis with FFT and spectrum analysis. USB powered and connected for easy integration with PC systems. Compact dimensions of 130 mm length, 104 mm width, and 18.8 mm height for portability.

Input capacitance of 8 pF, input impedance of 200 kohm, and minimum vertical sensitivity of 4 mV/div. Software package includes PicoScope 6 compatible with Windows 7, 8, and 10 for 32-bit and 64-bit systems. Supports multiple serial interfaces including CAN, IIC, LIN, RS232, SPI, UART, and USB.

Ideal for design, testing, monitoring, repairs, and fault finding in industrial, educational, and servicing applications.
