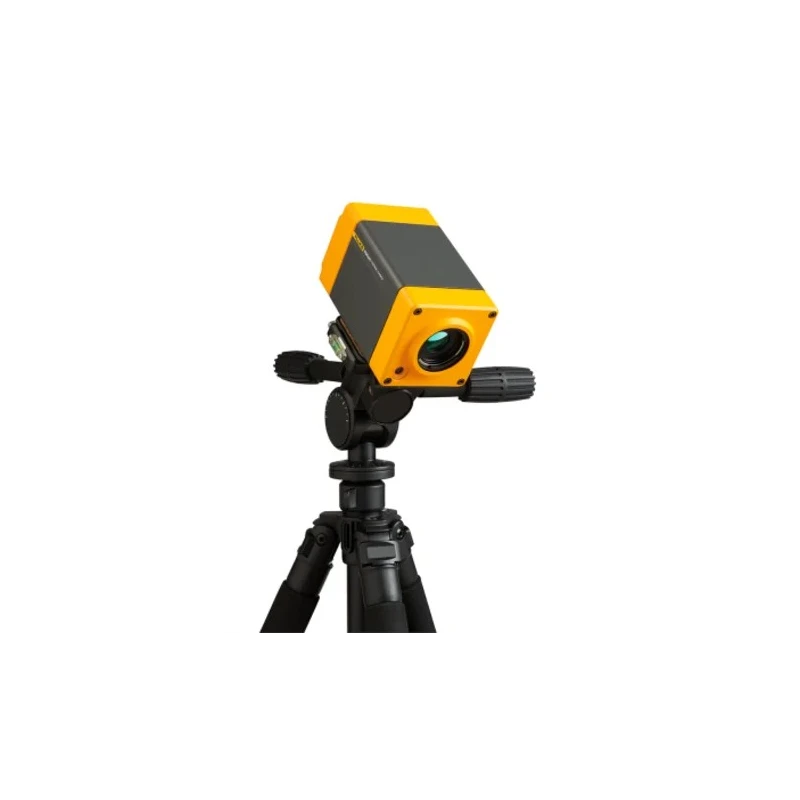

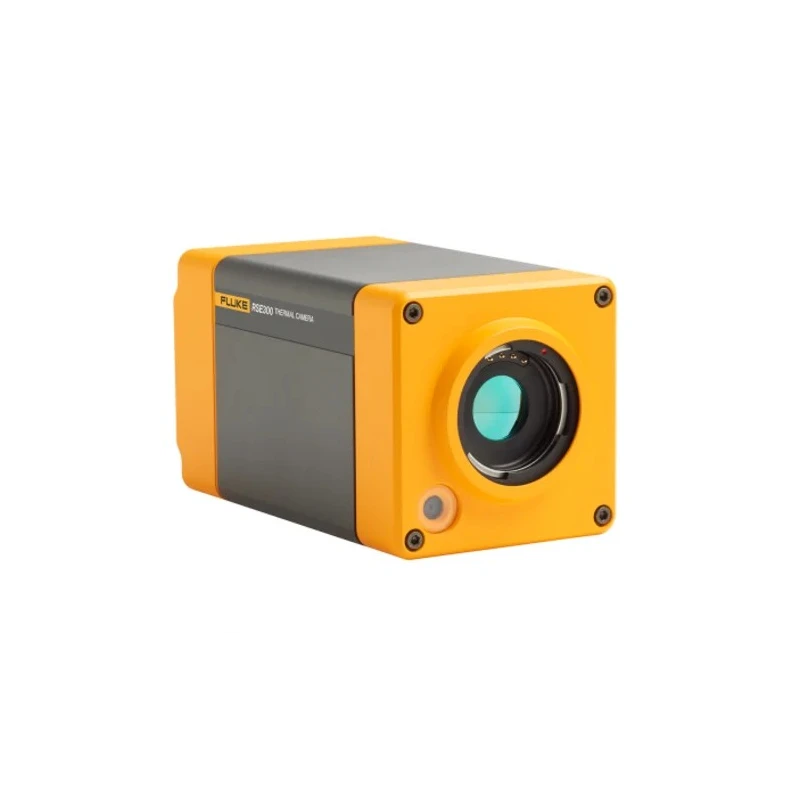

Fluke Thermal Imaging Camera with 320x240 Pixel Detector Resolution, 1200°C Maximum Temperature Measurement RSE300

Fluke RSE300 Thermal Imaging Camera combines advanced infrared sensing technology with a 320 x 240 pixel detector resolution, delivering precise thermal maps and enabling temperature monitoring up to 1200°C. This rugged instrument is designed for research, laboratory, industrial, and engineering environments requiring detailed thermal data capture and analysis.

The device features automatic multi-plane focus and a minimum focus distance of 15 cm, ensuring high accuracy (±2%) and sharp thermal images across various distances. With a 9Hz refresh rate, it accommodates applications where frame rate limitations exist. Spatial resolution of 1.85 mrad and thermal sensitivity of 30mK allow detection of subtle temperature gradients critical for condition monitoring and thermal characterization.

Equipped with a visible camera and multiple infrared/visual image combination modes including full IR and picture-in-picture, the RSE300 enhances contextual analysis. Images and data can be stored on the device, supporting efficient workflow in field inspections and laboratory investigations.

Connectivity options allow integration with desktop tools such as MATLAB and LabVIEW for automated data processing, as well as remote monitoring via Ethernet using GigE Vision standards. This camera is ideal for R&D thermal profiling, condition monitoring of electrical switchgear and motors, mechanical process development, and test rig integration.

Its ergonomic dimensions (165mm length, 83mm width and depth) and lightweight 1 kg design enable comfortable operation. The product is manufactured in the United States and meets stringent industrial quality standards, although no hazardous area certification applies.

The Fluke RSE300 is a versatile thermal imaging solution suited for industrial, laboratory, HVAC, manufacturing, and scientific thermal inspection tasks, providing reliable, high-resolution thermal data for advanced analysis and diagnostics.

Detects thermal variations with 320x240 pixel detector resolution providing detailed imagery. Measures maximum temperatures up to 1200 degrees Celsius for high-temperature monitoring. Features a 34° horizontal and 25.5° vertical angle of view for broad field imaging.

Automatic focus with minimum focus distance of 15 cm ensures sharp image clarity. 9Hz refresh rate suitable for applications with refresh constraints. Spatial resolution of 1.85 mrad with 30mK thermal sensitivity to detect subtle temperature differences.

Integrated visible camera and auto image capture enhance inspection capabilities. Supports image storage onboard for easy data management. Compact and lightweight design weighing 1 kg for ease of use in field and lab. Designed for industrial, laboratory, and engineering thermal analysis applications.
