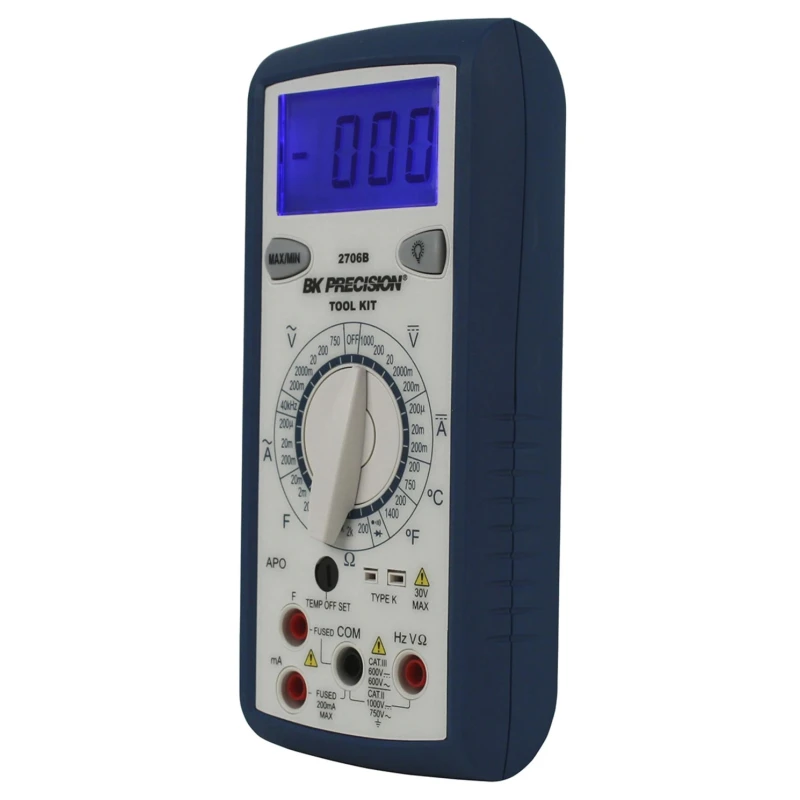

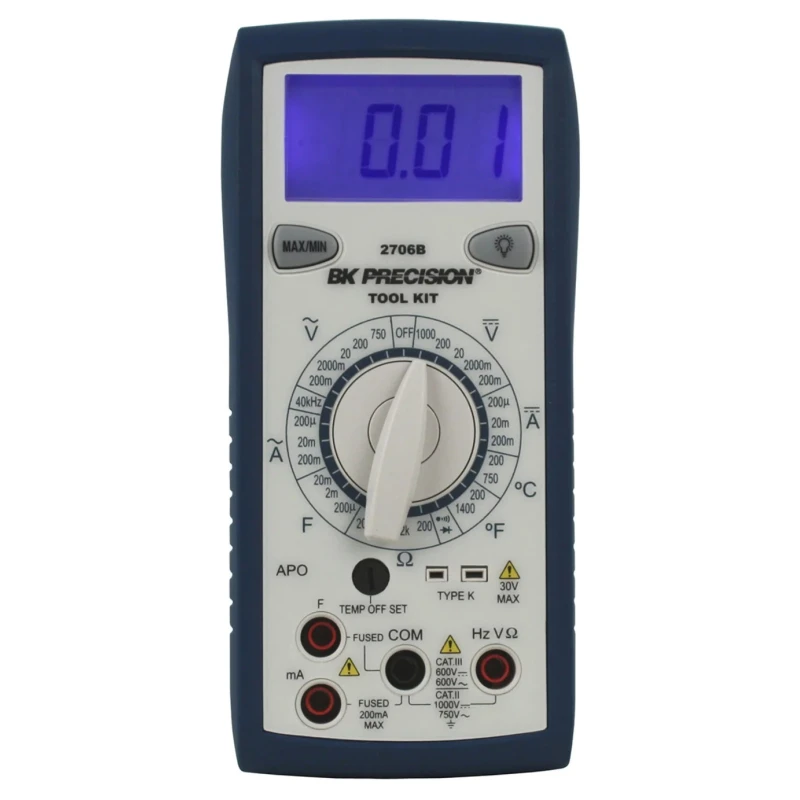

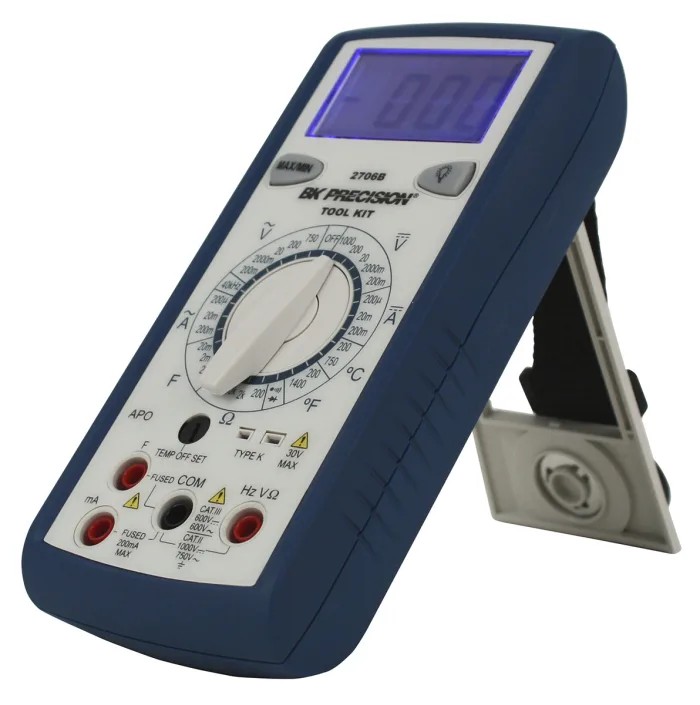

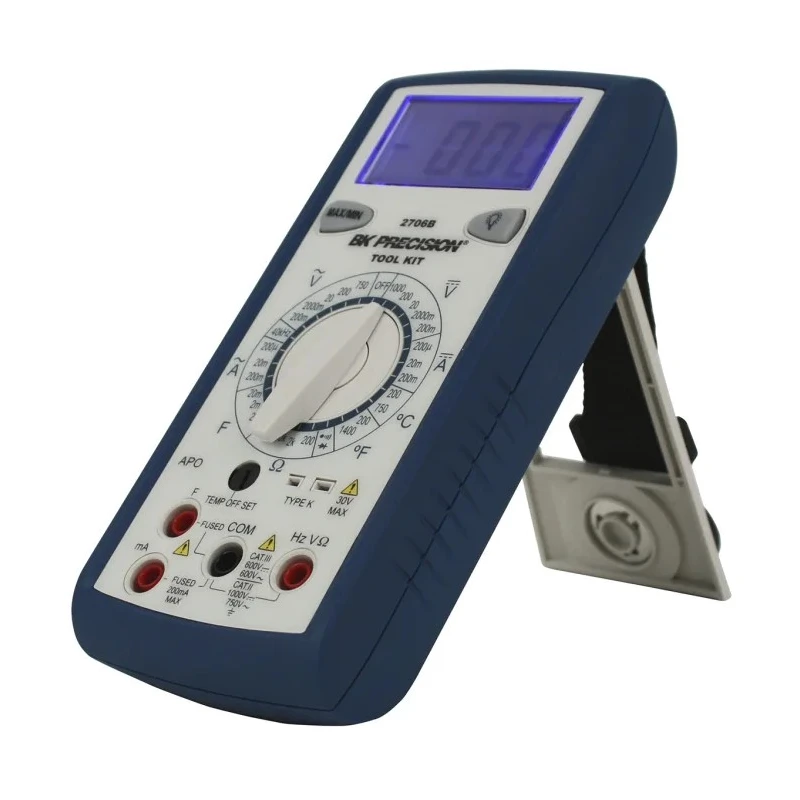

BK Precision Handheld Digital Multimeter 200mA AC/DC, 750V AC, 1kV DC BK2706B
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | BK Precision |
| Battery Life | 150h |
| Height | 165mm |
| Length | 78mm |
| Model | BK2706B |
| Gross Weight | 285g |
| Width | 42.5mm |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 0.1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | ±1 % rdg + 1 Digits |
| DC Voltage Resolution | 0.1 mV dc |
| Resistance Measurement Accuracy | ±2 % rdg + 4 Digits |
| AC Current Accuracy | ±1.5 % rdg + 5 Digits |
| Resistance Resolution | 100mΩ |
| DC Current Resolution | 0.1μA ac |
| Multimeter Type | Handheld |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode Test, Frequency, Resistance, Temperature |
| Maximum AC Current Measurement | 200mA ac |
| Maximum DC Voltage Measurement | 1kV dc |
| Maximum DC Current Measurement | 200mA dc |
| Maximum AC Voltage Measurement | 750V ac |
| Maximum Frequency | 500Hz |
| Safety Category Level | CAT II, CAT III |
| Safety Category Voltage | 1kV |
Key Features
- Measures AC current up to 200 mA and DC current up to 200 mA precisely.
- Maximum AC voltage capability of 750 V and DC voltage up to 1000 V for diverse applications.
- Includes capacitance, continuity, diode test, frequency, and temperature measurement features.
- Displays readings on a 2000 count LCD with bright blue backlight for low light environments.
- Offers auto power off to conserve battery life up to 150 hours of typical usage.
- Features one-handed operation and magnetic hanger for convenient use and placement.
- Safety ratings include CAT II and CAT III with a 1kV safety category voltage for safe industrial testing.
- Operates reliably between 0°C and 50°C ambient temperatures.
Product Description
BK Precision BK2706B handheld digital multimeter is a versatile manual-ranging instrument designed for professional and industrial electrical measurement applications. It supports measurement of AC current up to 200 mA and DC current up to 200 mA, AC voltage to 750 V, and DC voltage to 1000 V, suitable for a wide range of electrical testing and troubleshooting tasks.
The device includes multiple functions such as capacitance measurement up to 20 mF, continuity check, diode testing, frequency measurement up to 500 Hz, resistance measurement up to 20 Mohm, and temperature measurement. Its 2000 count LCD features a bright blue backlight for improved visibility in dim environments, ensuring accurate readings under varied lighting conditions.
Safety is ensured with CAT II and CAT III ratings and a 1 kV safety rating voltage, making it appropriate for industrial and laboratory use. The multimeter's construction allows for one-handed operation, and it includes a magnetic hanger for hands-free work. The instrument operates in ambient temperatures ranging from 0°C to 50°C and provides long battery life of approximately 150 hours with an auto power-off feature to prevent unnecessary battery drain.
Measures AC/DC current and voltage with high accuracy. Includes advanced electrical test functions for multimode usage. Bright backlit LCD enhances usability in all lighting conditions. Safety ratings suitable for industrial electrical environments.
User-friendly with ergonomic design for ease of operation. Robust performance in a wide temperature range. Compact and lightweight for portability.
The BK2706B multimeter is ideal for use in industrial machines, electrical maintenance, HVAC, manufacturing, and laboratory testing environments. Its comprehensive measurement capability and safety features make it a reliable tool for technicians and engineers.
Explore more digital Multimeters and related test instruments suitable for precision electrical measurement on EnvMart.
