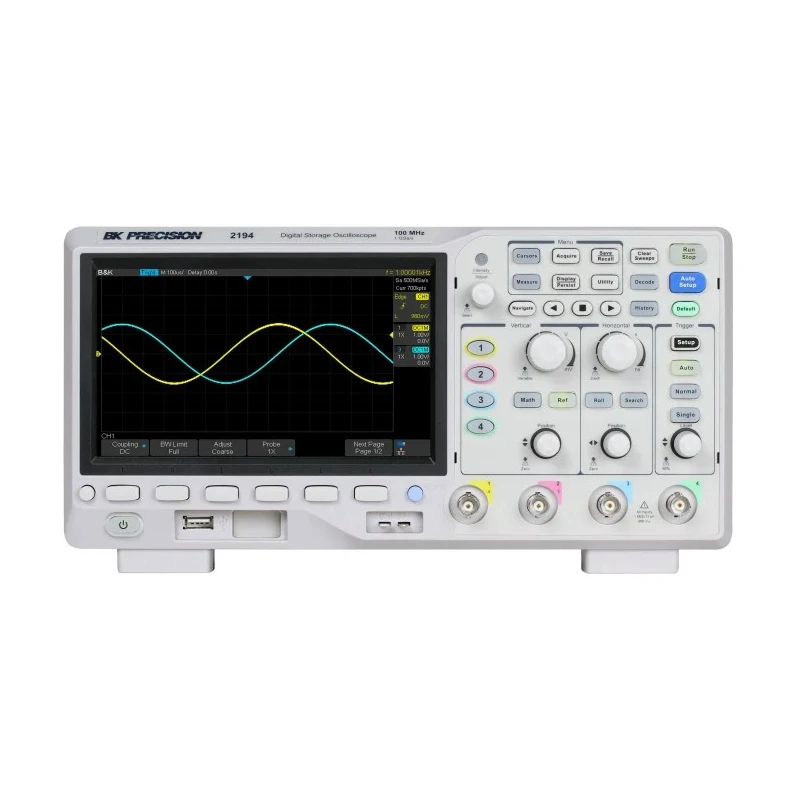

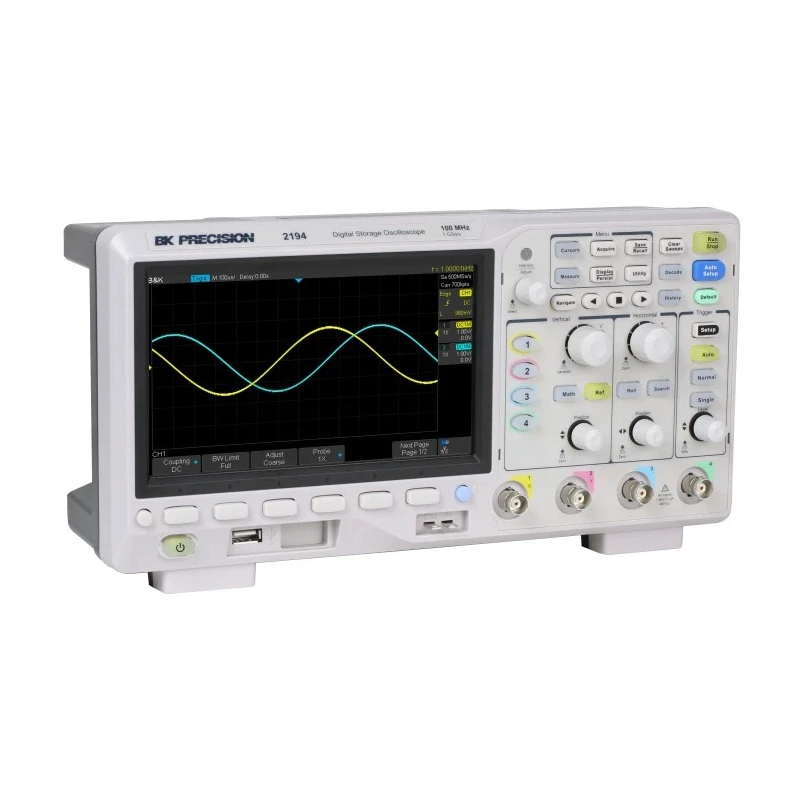

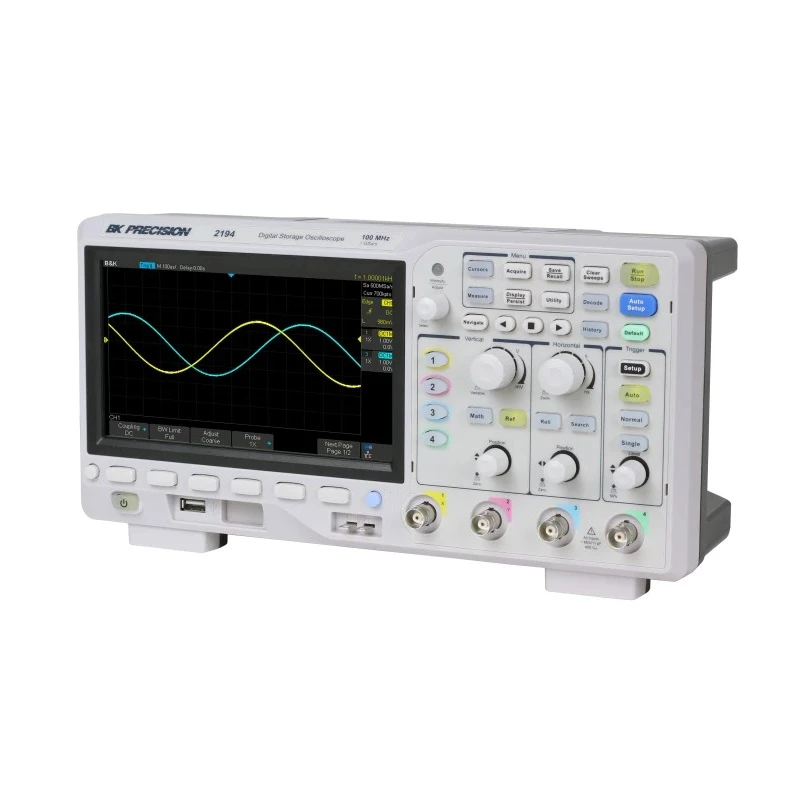

BK Precision 100 MHz 4-Channel Bench Digital Storage Oscilloscope BK2194

BK Precision BK2194 is a high-precision 100 MHz digital storage oscilloscope designed for detailed analysis and measurement of electrical signals. This 4-channel bench oscilloscope offers advanced features catering to electronics engineers, researchers, and hobbyists who require reliable and versatile signal diagnostics.

The instrument combines a wide 100 MHz bandwidth with a maximum sample rate of 1 GSa/s and a deep memory of 14 million points, enabling accurate capture of complex waveforms. Its large 7-inch TFT-LCD screen with an 800 x 480 pixel resolution allows clear visualization of signals with enhanced clarity.

This oscilloscope includes extensive triggering capabilities such as pulse width, line-selectable video, and serial triggering, making it ideal for detailed signal analysis. The segmented acquisition function stores up to 80,000 frames, allowing effective examination of intermittent events.

Serial decoding supports five popular communication protocols: I2C, SPI, UART, CAN, and LIN, making this model highly suitable for debugging embedded systems and automotive electronics. The built-in FFT feature enables frequency domain analysis alongside multiple math operations for advanced waveform manipulation.

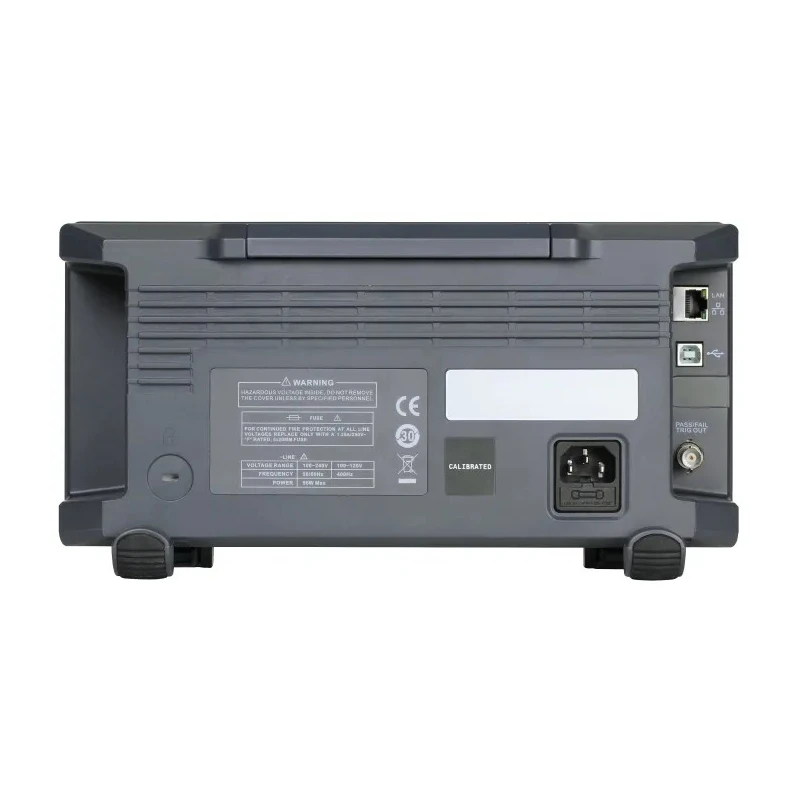

Connectivity is optimized with LAN and USBTMC compliant ports for easy integration with PC software, making waveform data management and reporting seamless. A USB host port allows saving and recalling waveform setups, data, and screenshots, enhancing workflow efficiency.

The BK2194 is calibrated to UKAS standards, ensuring consistent and accurate measurement performance. Compact physical dimensions (312 mm width by 151 mm height) provide a space-efficient footprint, suitable for laboratory benches, educational environments, and general industrial applications.

Typical applications include electronic circuit troubleshooting, design and testing of components, and general research and development work requiring accurate electrical signal evaluation.

This Oscilloscope represents a balanced combination of performance, value, and portability, making it a dependable instrument for professionals in test and measurement fields. Features 100 MHz bandwidth and 4 analog channels for comprehensive testing.

Maximum sample rate of 1 GSa/s with a memory depth of 14 Mpts ensures accurate waveform capture. 7-inch TFT-LCD display with 800 x 480 resolution provides clear signal visualization. Supports serial decoding for I2C, SPI, UART, CAN, and LIN communication protocols.

Equipped with segmented acquisition and FFT for advanced signal analysis. Includes LAN and USBTMC compliant device ports for seamless PC connectivity. Offers versatile triggering options including pulse width and serial triggering functions.

Calibrated to UKAS standards assuring measurement reliability. Compact bench design measuring 312mm width and 151mm height suited for laboratory and industrial use. Explore more measuring and test instruments in our Industrial category for reliable, precision-grade solutions.
