RIGOL DM858 Series Digital Multimeter | DM858 | DM858E
Model
Accuracy
DCV Yearly Accuracy
Fastest Measurement Speed
Connectivity
Specifications
| Country of Origin | India |
|---|---|
| DC Voltage Range | 100 mV to 1000 V |
| AC Voltage Range | 100 mV to 750 V |
| Capacitance Range | 1 nF to 10 mF |
| Resistance Range | 100 Ω to 50 MΩ |
| Display | 7-inch color touch screen |
| Frequency range | 20 Hz to 100 kHz |
| Brand | Rigol |
| Dimensions | 266×165×80 mm |
| Model | DM858 Series |
| Weight | 1.9 Kg |
| Display Resolution | 5½ digit, 120000 counts |
| DC Voltage Accuracy | ±0.03% per year |
| Interfaces | USB Host/Device, LAN LXI-C, Type-C power |
| Product Condition | New |
| MPN | DM858 Series |
| AC Voltage Frequency | 20 Hz to 8 kHz |
| Data Logging Memory | 500000 readings |
| Input Protection Voltage | 1000 V |
| True-RMS | Yes |
| Current Range (DC/AC) | 100 μA to 10 A |
| Max Reading Rate | 125 readings per second |
Key Features
Rigol DM858 Series Benchtop Digital Multimeter offers high-precision 5½ digit measurements for laboratory and industrial testing.
- Features a 5½ digit, 120000 counts resolution for precise measurements.
- Maximum reading rate up to 125 readings per second for fast testing.
- DC voltage accuracy up to ±0.03% per year for reliable results.
- True-RMS AC voltage and AC current measurements for broad application coverage.
- 750V AC and 1000V DC input range with advanced input protection.
- Measuring ranges: voltage (100 mV to 1000 V), current (100 μA to 10 A), resistance (100 Ω to 50 MΩ).
- Large 7-inch color touch screen with dual graphical display and data logging functions.

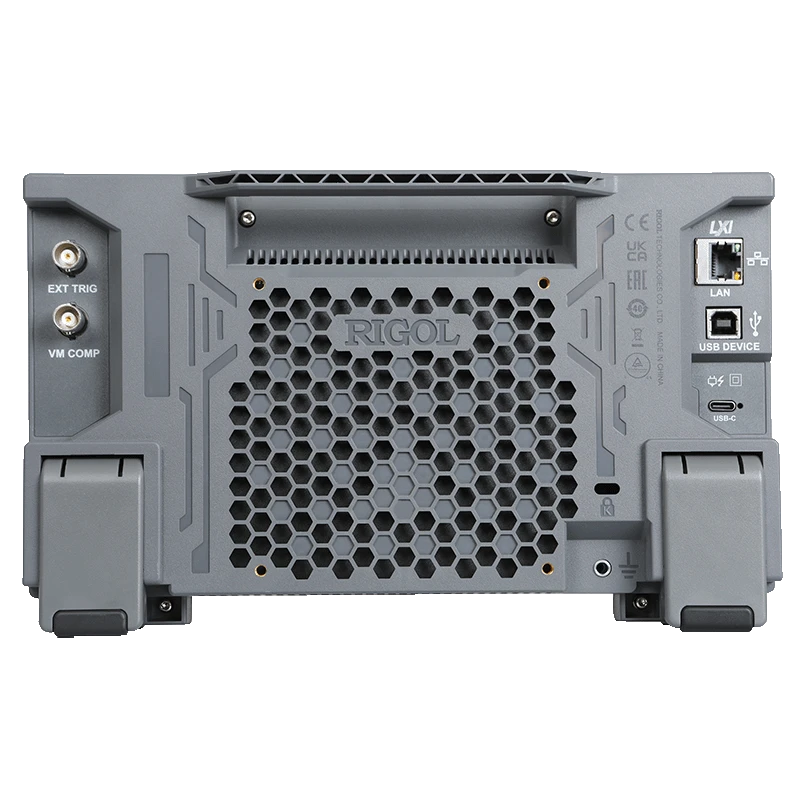

- Equipped with USB Host/Device, LAN LXI-C, and Type-C power interface.
- Data logging memory up to 500000 readings and built-in storage for setups.
- Comprehensive measurement functions with math operations and graphical modes (trend, histogram, bar chart).
Product Description

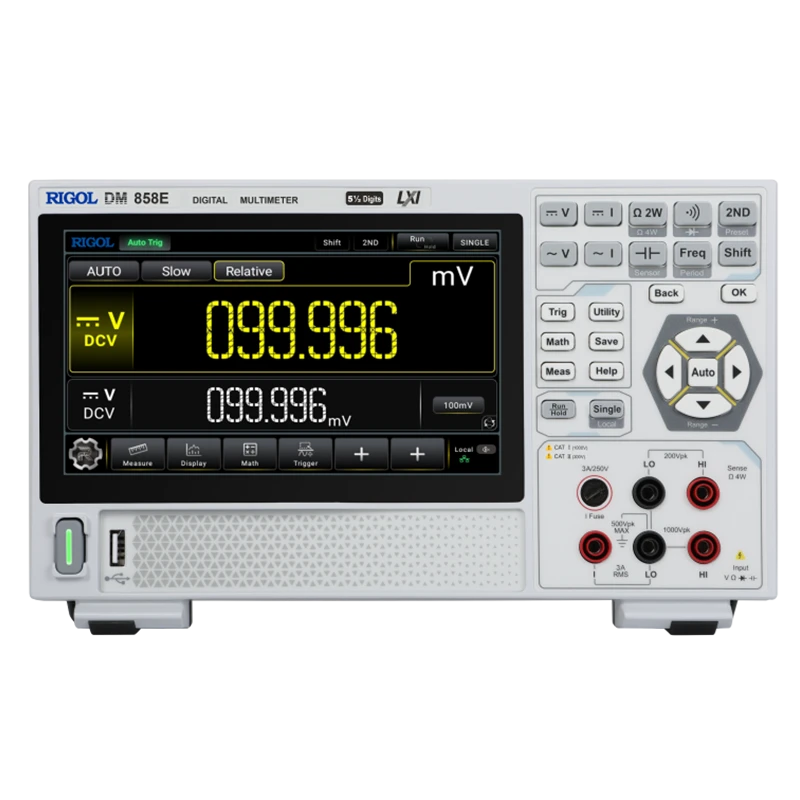

The RIGOL DM858 Series Digital Multimeter, available in DM858 and DM858E models, is a 5½-digit benchtop multimeter designed for high-precision electrical measurements in calibration laboratories, electronics development, production testing, research facilities, and educational institutions. With a 120,000-count display and measurement speeds of up to 125 readings per second, the series delivers fast, stable, and repeatable test results.
The RIGOL DM858 Series supports measurements of DC and AC voltage, DC and AC current, two-wire and four-wire resistance, capacitance, frequency, period, and temperature. True-RMS AC measurement improves accuracy when evaluating complex signals, while built-in mathematical and statistical functions help users analyse measurement data efficiently.
- 5½-digit resolution with a 120,000-count display
- Measurement speed up to 125 readings per second
- DC voltage measurement from 100 mV to 1,000 V
- DC voltage accuracy up to ±0.03% per year
- AC voltage measurement from 100 mV to 750 V
- AC frequency response from 20 Hz to 8 kHz
- DC and AC current measurement from 100 μA to 10 A
- Two-wire and four-wire resistance measurement from 100 Ω to 50 MΩ
- Capacitance measurement from 1 nF to 10 mF
- Frequency, period, continuity, and diode testing
- Temperature measurement using compatible thermocouple and RTD sensors
- True-RMS AC measurement for dependable signal evaluation
- Trend, histogram, and bar-chart display modes
- Data-logging memory for up to 500,000 readings
- Storage for measurement data and instrument configurations
- 7-inch colour touchscreen for convenient operation and data viewing
- USB Host, USB Device, LAN, and LXI-C connectivity
- USB Type-C power input for flexible benchtop operation
The compact instrument measures approximately 266 × 165 × 80 mm and weighs less than 2 kg, making it suitable for fixed laboratory benches and portable testing requirements. Typical applications include electronic circuit development, component inspection, product validation, equipment maintenance, calibration, manufacturing quality control, scientific research, and electronics education.
Available Models: DM858 | DM858E
Explore more RIGOL digital multimeters, benchtop measuring instruments, and professional testing equipment in the EnvMart Measuring & Testing Instruments category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Rigol DM858 Multimeter features a 5½ digit resolution with a display capable of showing up to 120,000 counts for highly accurate measurements.
The multimeter can measure DC voltages up to 1000V and AC voltages up to 750V. For current, it measures from 100 μA to 10 A.
The DC voltage accuracy of the Rigol DM858 is up to ±0.03% per year, ensuring reliable results over time.
Yes, the Rigol DM858 has a data logging memory that can store up to 500,000 readings, making it suitable for extensive data collection.
It can measure voltage, current, resistance, capacitance, and temperature, with advanced functions for frequency and period measurements.
The multimeter features a large 7-inch color touch screen that provides a dual graphical display for easy data visualization.
The Rigol DM858 includes USB Host/Device, LAN LXI-C, and a Type-C power interface for versatile connectivity options.
Yes, the multimeter is designed with advanced input protection, allowing for safe measurements up to 1000V.
The Rigol DM858 measures 266 mm × 165 mm × 80 mm and weighs less than 2 kg, making it portable for various applications.
The Rigol DM858 Series Benchtop Digital Multimeter is manufactured in India.
