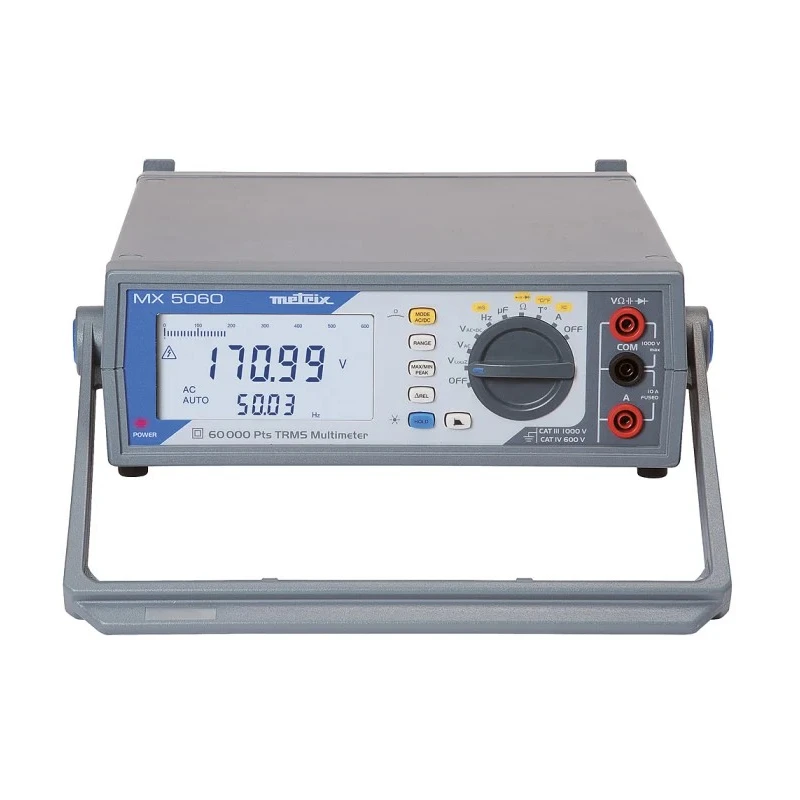

Metrix Bench Digital Multimeter True RMS 60,000 Counts 100 kHz Bandwidth MX5060

Metrix MX5060 is a high-precision bench digital multimeter engineered for true RMS measurements of AC and DC currents and voltages with up to 60000 counts resolution. It features a double transflective backlit LCD and bar graph display providing instantaneous signal variation insights. The integrated 300 Hz PWM filter ensures measurement stability especially on variable speed drives. Measurement accuracy is high with 0.05% VDC accuracy and supports frequency measurements up to 60 kHz.

This bench multimeter covers a broad range of functions including DC, AC and AC+DC voltage and current, resistance up to 60 MΩ, capacitance between 6 nF to 60 mF, and temperature sensing with K thermocouple from -200 °C to +1200 °C. It offers voltage minima at 0.0001 mV dc and AC current resolution of 0.1 μA ac, enabling detailed diagnostics in electrical engineering sectors.

The MX5060 includes safety features complying with IEC 61010 standards and CAT III 1000 V double insulation, ensuring protection for use in demanding laboratory and industrial environments. Error-free current measurement up to 10 A is made possible with a dedicated A Terminal. The device facilitates recording of signed Min, Max, and Peak values to capture transient phenomena.

Additional connectivity includes USB interface supporting SCPI commands for remote operation and integration into automated test setups. The package includes an EU mains power cable, 1.5 m red and black cables, red and black CAT IV 1 kV test probes, an operating manual on CD, start-up guides, and remote programming manuals.

Ideal for laboratory, manufacturing, electrical engineering, and maintenance applications, the Metrix MX5060 bench multimeter delivers versatile, reliable, and safe measurement solutions.

True RMS AC+DC measurements with 60000 counts and 100 kHz bandwidth. Large backlit LCD display with bar graph and zero-centering for clear signal indication. 300 Hz PWM filter to stabilize readings on variable speed drives.

Resistance measurement up to 60 MΩ and capacitance from 6 nF to 60 mF. Temperature range from -200 °C to +1200 °C via K thermocouple input. Complies with IEC 61010 standard and safety category CAT III at 1000 V. Equipped with USB and SCPI command compatibility for remote monitoring.

Supplied with comprehensive accessories including power cables and probes. Explore more Digital Multimeters and test and measurement tools on EnvMart for your industrial and laboratory requirements.
