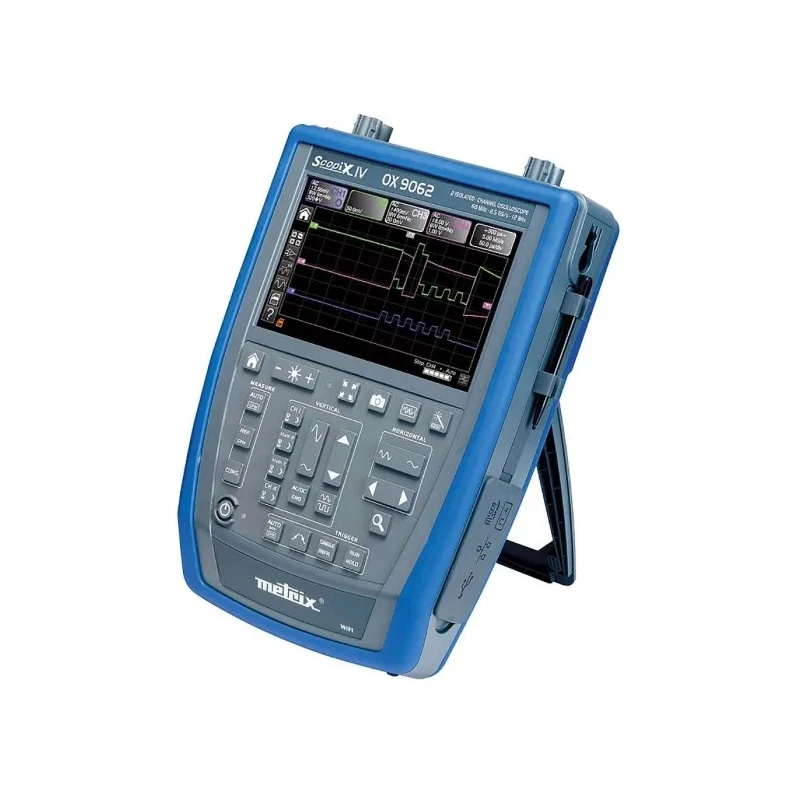

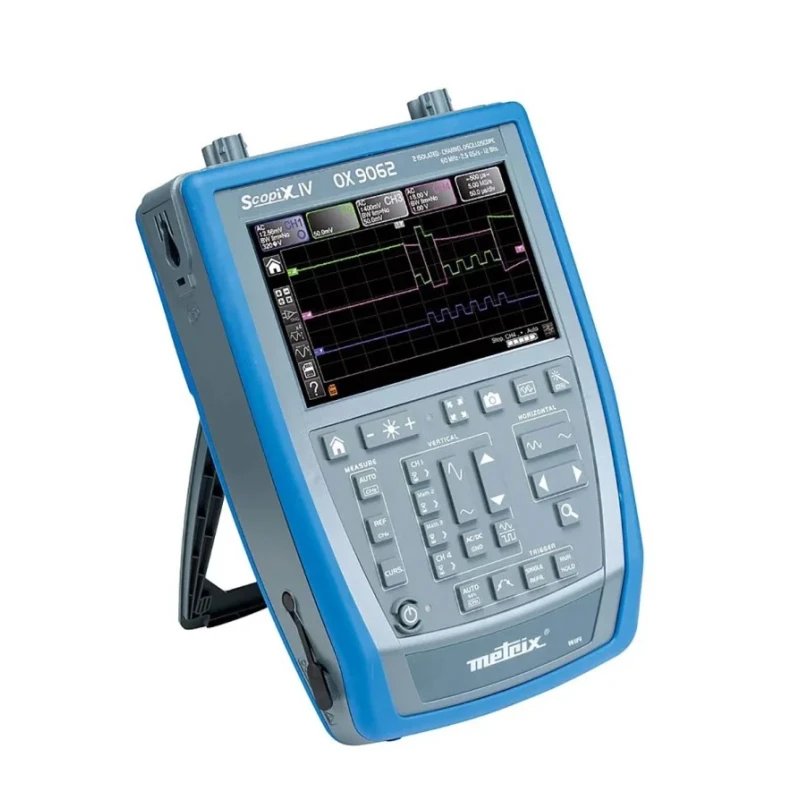

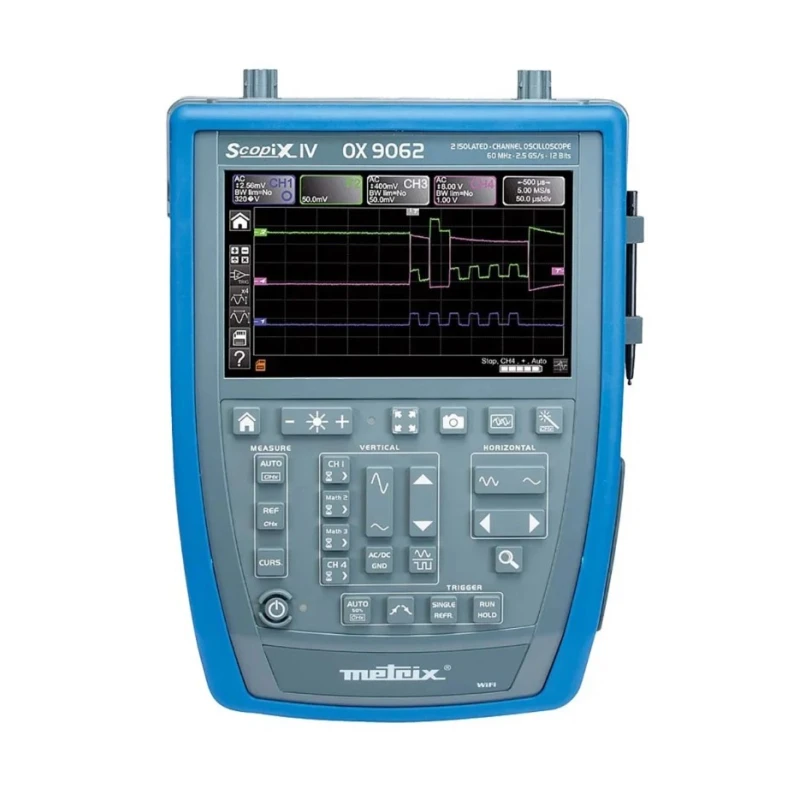

Metrix 60 MHz Handheld Digital Storage Oscilloscope, 2 Channels, 7 in TFT LCD, Lithium-ion Battery OX9062

Metrix OX9062 is a high-performance 60 MHz handheld digital storage oscilloscope designed for industrial, laboratory, and field applications. Featuring two fully isolated channels and 100k points memory depth per channel, it provides extended recording duration for comprehensive waveform analysis. The 7-inch TFT LCD ensures clear and detailed visualization of signals.

This handheld oscilloscope integrates multifunctional capabilities with oscilloscope, multimeter, analyzer, and recorder modes. It utilizes a 12-bit vertical resolution converter with a 0.0025% vertical resolution, ensuring precise measurement results. Advanced trigger functions including pulse width, counting, and delay enhance signal capture accuracy.

Connectivity via USB, Ethernet, and WiFi optimizes data transfer and remote operation capabilities. The real-time FFT and advanced math functions allow users to analyze frequency components and apply mathematical functions for thorough signal evaluation.

The integrated multi-channel 8,000-count TRMS digital multimeter efficiently measures amplitude, resistance, capacitance, frequency, temperature, and performs component tests without changing connections using PROBIX technology. The multimeter mode links with logger mode, enabling automatic time and date-stamped recordings with adjustable intervals.

It supports power measurements including single and three-phase active, reactive, and apparent power with power factor calculations. The harmonic analyzer mode displays up to 63 orders for signals with fundamental frequency between 40 and 450 Hz, helping diagnose power quality issues.

Compact and lightweight, with dimensions of 292.5 mm height, 66.2 mm width, and 210.6 mm depth, it features an 8-hour lithium-ion battery life for extended portable usage. Safety compliance CAT III, 600 V rating ensures protection during electrical testing tasks. This oscilloscope is ideal for professional technicians seeking reliable, detailed analysis in various industrial, laboratory, HVAC, and manufacturing environments.

The oscilloscope features a 7-inch TFT LCD display for clear waveform visualization. Equipped with lithium-ion battery providing up to 8 hours of operation. Offers a memory depth of 100k points per channel to record longer signal durations.

Includes advanced triggering, 20 automatic measurements per channel, and FFT analysis for precise diagnostics. Connectivity options include USB, Ethernet, and WiFi for efficient data transfer. Supports multi-channel 8,000-count TRMS digital multimeter and harmonic analyzer modes.

Compact dimensions with height 292.5 mm, width 66.2 mm, and depth 210.6 mm. Operates safely under CAT III 600 V safety category for electrical tests. Explore the full range of Oscilloscopes and measuring instruments to enhance your test and diagnostic capabilities at EnvMart.
