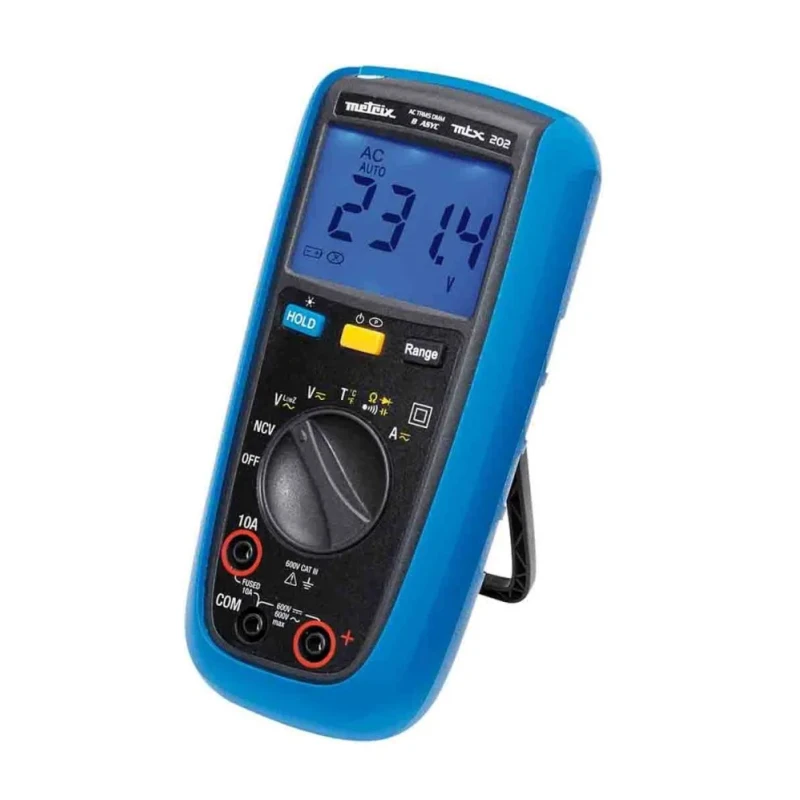

Metrix Handheld True RMS Digital Multimeter 4000 Counts 600 V AC/DC CAT III MTX202-Z

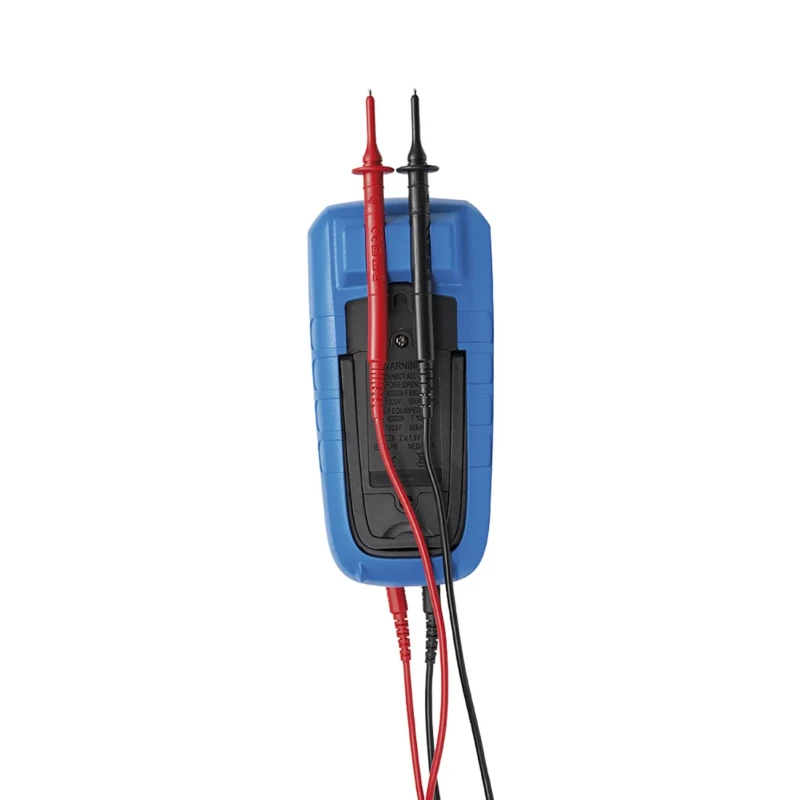

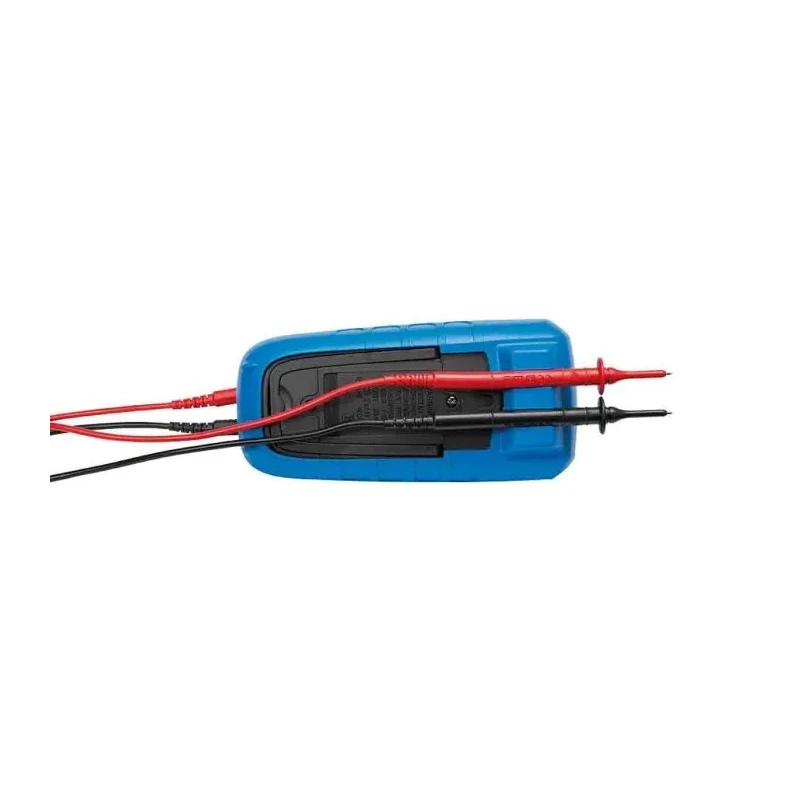

Metrix MTX202-Z handheld true RMS Digital Multimeter delivers high performance with a 4000 count LCD display and the ability to measure AC and DC voltages and currents up to 600 V. Its compact and ergonomic design allows for comfortable one-handed use, while the magnetised shockproof sheath provides practical hands-free mounting in electrical cabinets or work sites.

The multimeter features true RMS measurement technology for accurate AC current and voltage reading essential in complex electrical environments. It supports multiple functions including resistance measurement from 1 Ω to 40 MΩ, capacitance measurement from 1 nF to 100 mF, and temperature readings using the supplied flexible K thermocouple sensor, capable of measuring from -55 °C up to +1200 °C in both Celsius and Fahrenheit.

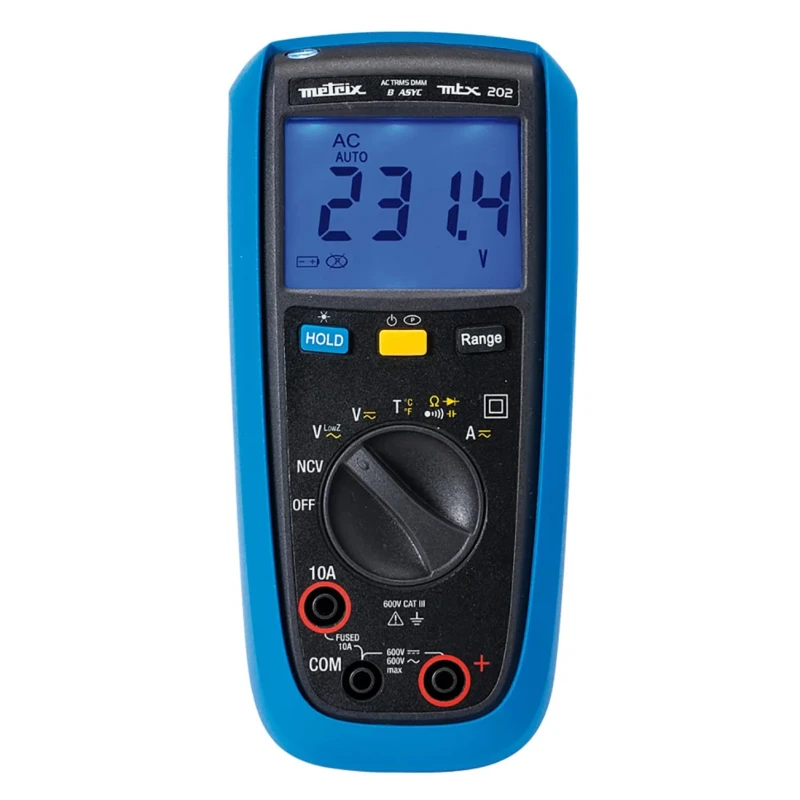

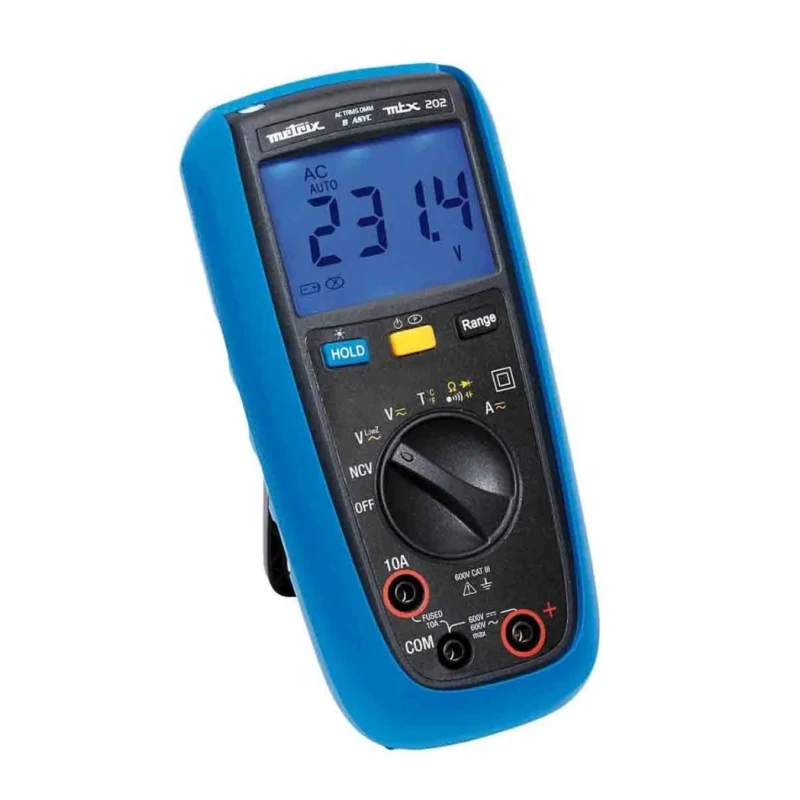

The user interface features a rotary switch with dedicated positions for each function and three front keys for quick command access. The backlit LCD ensures excellent visibility even in poorly lit environments, augmented by an integrated torch. Safety is enhanced with CAT III 600 V safety category rating, double-well 600 V input terminals, and low-impedance voltage measurement (VLowZ) to avoid ghost voltage errors.

This model is powered by two AA batteries, making battery replacement straightforward, and includes accessible fuse replacement. The device weighs 320 g and measures 170 mm length by 80 mm width and 50 mm height, designed for portability and durability in field conditions.

Applications include electrical maintenance, initial troubleshooting on PCBs such as resistance, capacitance, and diode checks, as well as HVAC system testing and industrial use. The multimeter supports reliable and versatile measurement tasks with safety and ergonomic features suited for electricians and technicians.

True RMS AC current and voltage measurements. Measures AC/DC voltage up to 600 V safely with CAT III rating. Resistance range from 1 Ω to 40 MΩ. Capacitance measurement from 1 nF to 100 mF. Temperature measurement with K thermocouple sensor.

Backlit LCD and built-in torch for usability in dark areas. Low impedance voltage measurement reduces false voltage readings. Ergonomic and compact design with magnetised shockproof sheath. Portable dimensions and lightweight for field use.

Easy battery and fuse replacement for maintenance.

Set includes 1 shockproof sheath, 1 red CAT III 600 V test probe with 1.5 m lead, 1 black CAT III 600 V test probe with 1.5 m lead, flexible K thermocouple with 40mm adapter, 2 x 1.5 V AA batteries, and an operating manual. This product is made in China.
