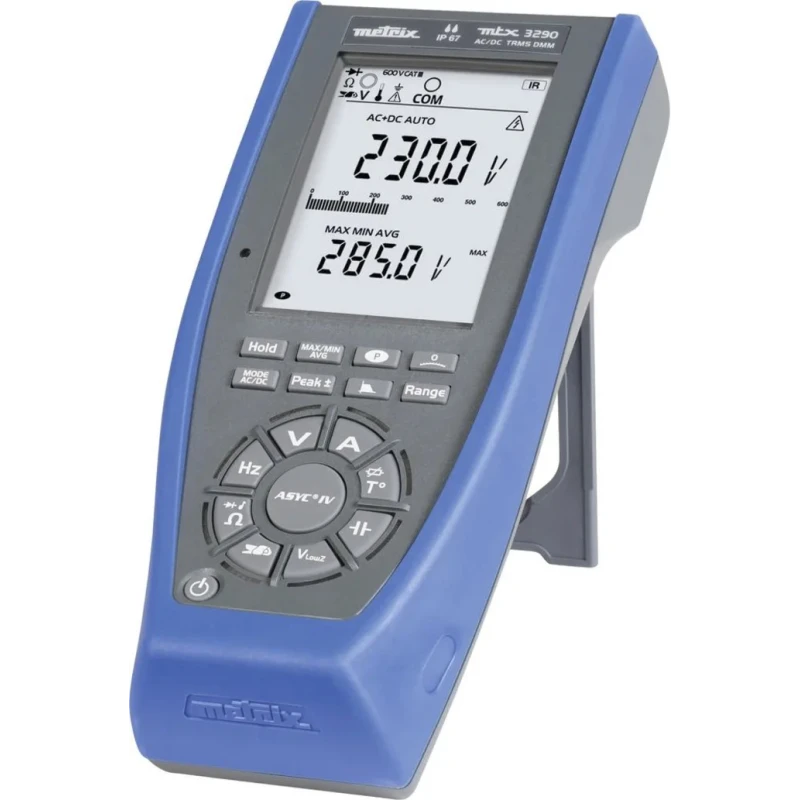

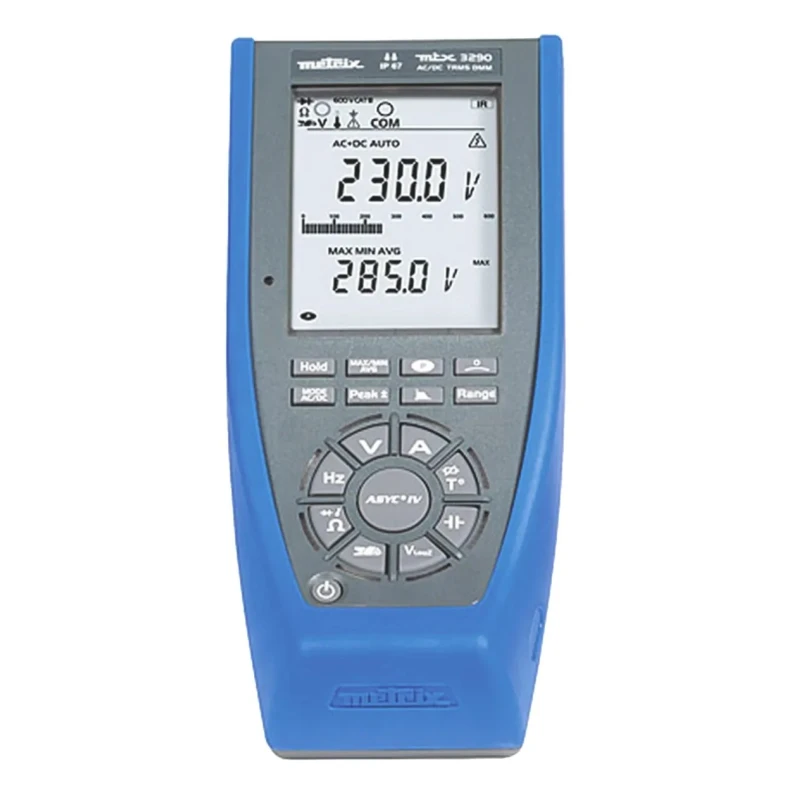

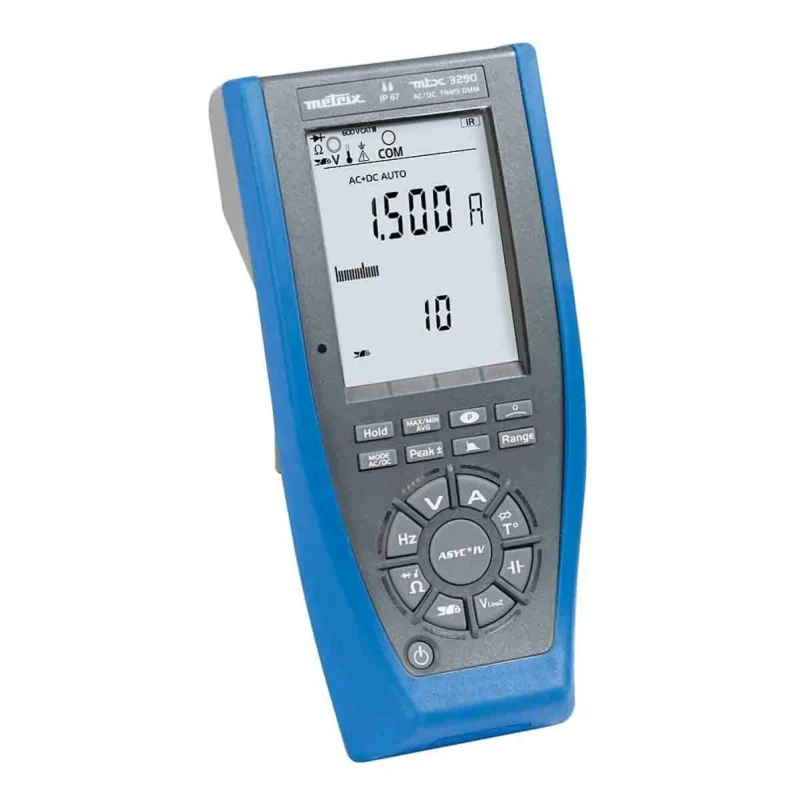

Metrix Handheld Multimeter True RMS MTX3290 Digital Display, CAT III/CAT IV 600V, IP67 Protection MTX3290

Metrix MTX3290 handheld digital multimeter True RMS is a precision instrument designed for both electronic and electrical safety testing in industrial and laboratory environments. It supports a comprehensive range of measurements including AC/DC voltage and current, frequency, capacitance, resistance, and temperature with the added advantage of True RMS technology for accurate readings of complex waveforms. The IP67 rated enclosure provides excellent resistance to water and dust, making the MTX3290 ideal for harsh and outdoor conditions.

The multimeter features an extra-large monochrome LCD display of 70 x 52 mm with a bargraph and 6000 counts for enhanced readability. It offers an intuitive illuminated digital keypad and the ability to auto-range current measurements up to 10 A. Data logging functions include monitoring of minimum, maximum, and average values with relative time and date stamps and voltage/current peak surveillance.

Operating between 0°C and +40°C, the device is powered by four standard AA batteries or rechargeable NiMH batteries, offering up to 400 hours of usage. The safety ratings of CAT III and CAT IV at 600 V ensure user protection when working with high voltage installations. Mechanical dimensions are compact and ergonomic, measuring 196 mm in length, 90 mm in width, and 47.1 mm in height, with a weight of 570 g.

Package contents include the multimeter, four 1.5 V alkaline batteries, red and black CAT IV 1 kV test probes, 1.5 m red and black cables, a user guide on CD, and a paper start-up guide. The instrument complies with IEC 61010-1 and EN61326-1 standards, ensuring safety and electromagnetic compatibility for professional applications.

Ideal for industrial, laboratory, HVAC, and general electrical maintenance tasks, the Metrix MTX3290 combines rugged durability and advanced features for reliable electrical measurements. For exploring more industrial measuring instruments and trusted brands, browse the EnvMart digital Multimeter collection.

Large 70 x 52 mm monochrome LCD with bargraph and 6000 counts. Measures AC/DC voltage, current, capacitance, resistance, frequency, temperature, and more. True RMS for accurate measurement of complex signals. IP67 rated waterproof and dustproof casing for tough environments.

Auto-ranging and current measurement up to 10 A with data logging. CAT III and CAT IV safety rating at 600 V for high voltage use. Includes red and black CAT IV 1 kV test probes and cables.
