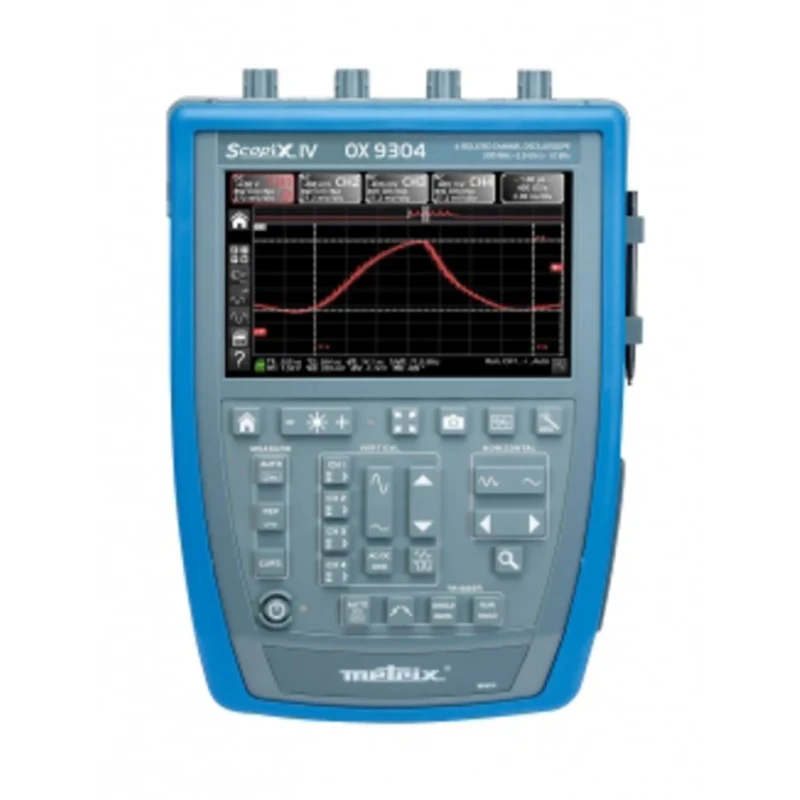

Metrix SCOPIX IV Series Handheld Digital Storage Oscilloscope 300 MHz Bandwidth 4 Channels OX9304

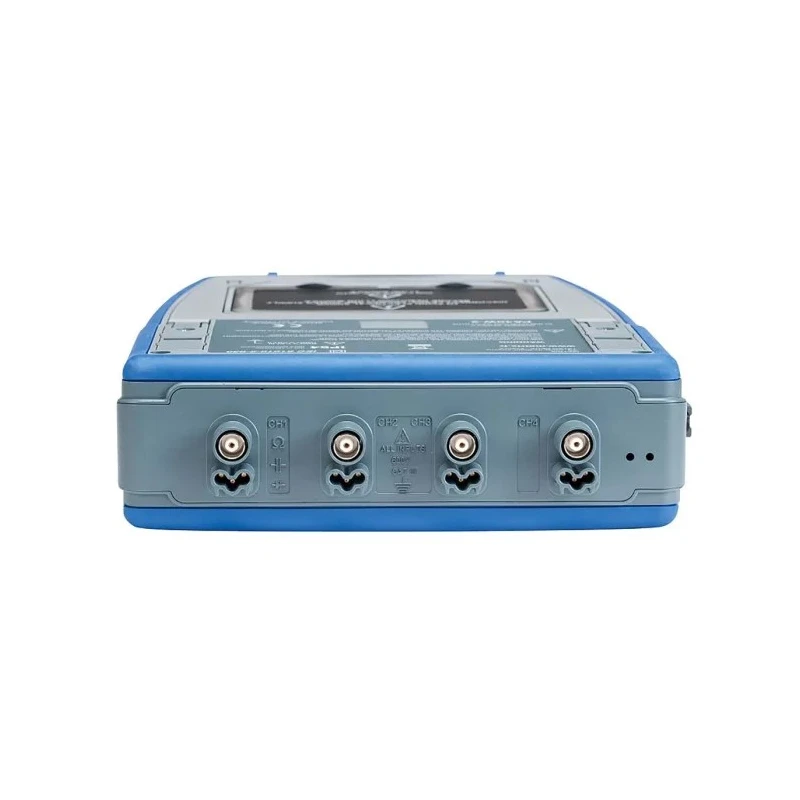

Metrix OX9304 SCOPIX IV Series handheld digital storage oscilloscope integrates 300 MHz bandwidth and 4 fully isolated channels, delivering high performance and safety in both field and laboratory environments.

The oscilloscope features a high-resolution 7-inch TFT LCD display with a 12-bit vertical resolution to ensure accurate waveform capture and analysis. With a memory depth of 100,000 points per channel, users benefit from extended signal recording durations for detailed examinations.

Communication options include standard Ethernet, USB, and WiFi interfaces, facilitating seamless data transfer and connectivity for comprehensive test setups. The instrument delivers advanced triggering functions such as pulse width, counting, and delay triggers, enhancing measurement flexibility and precision.

Equipped with an 8,000-count TRMS digital multimeter mode, the OX9304 measures amplitude, resistance, continuity, capacitance, frequency, and temperature, along with component testing without connection changes via PROBIX system integration. Logging functions enable automatic time and date-stamped recordings of up to 100,000 measurements at 0.2-second intervals.

Real-time FFT analysis is combined with waveform viewing to perform qualitative harmonic and distortion analysis, pulse response assessments, and efficient noise source diagnostics in logic circuits. Additionally, the multi-channel harmonic analyzer supports display of the first 63 harmonic orders for fundamental frequencies between 40 and 450 Hz.

The device is powered by a rechargeable lithium-ion battery offering approximately 8 hours of operation under CAT III 600V safety standards. Its compact dimensions (292.5 mm height, 210.6 mm depth, 66.2 mm width) make it easily portable for various industrial, laboratory, construction, and electrical testing applications.

Metrix SCOPIX IV Series oscilloscopes are well suited for precise diagnostics and measurement tasks in industrial machines and instruments, measuring and testing instruments applications, and advanced electrical analysis.

Features a 7-inch TFT LCD screen with 12-bit vertical resolution for precise waveform visualization. Offers deep memory depth of 100k points per channel for extended signal recording. Equipped with Ethernet, USB, and WiFi interfaces for flexible data communication.

Provides advanced trigger functions including pulse width, counting, and delay for comprehensive analysis. Includes an 8,000-count TRMS digital multimeter with multiple measurement modes and PROBIX connectivity. Battery-powered with an 8-hour lithium-ion rechargeable battery for mobile use.

Supports real-time FFT and multi-channel harmonic analysis for noise source diagnostics. Compact and portable design measuring 292.5 mm height, 210.6 mm depth, and 66.2 mm width. Explore the full range of Oscilloscopes and test instruments available on EnvMart for precise measurement needs.
