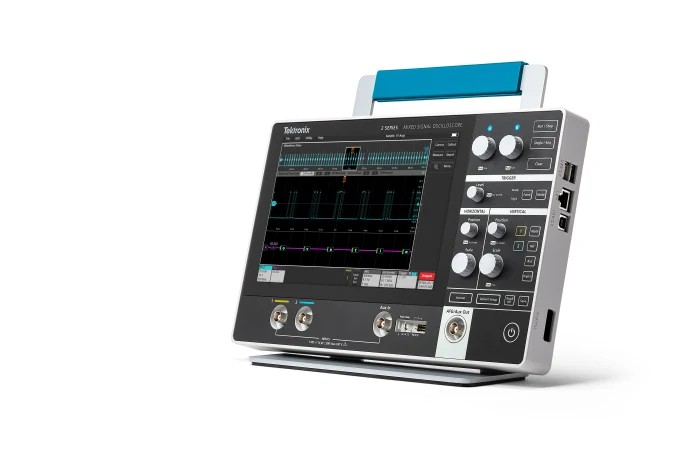

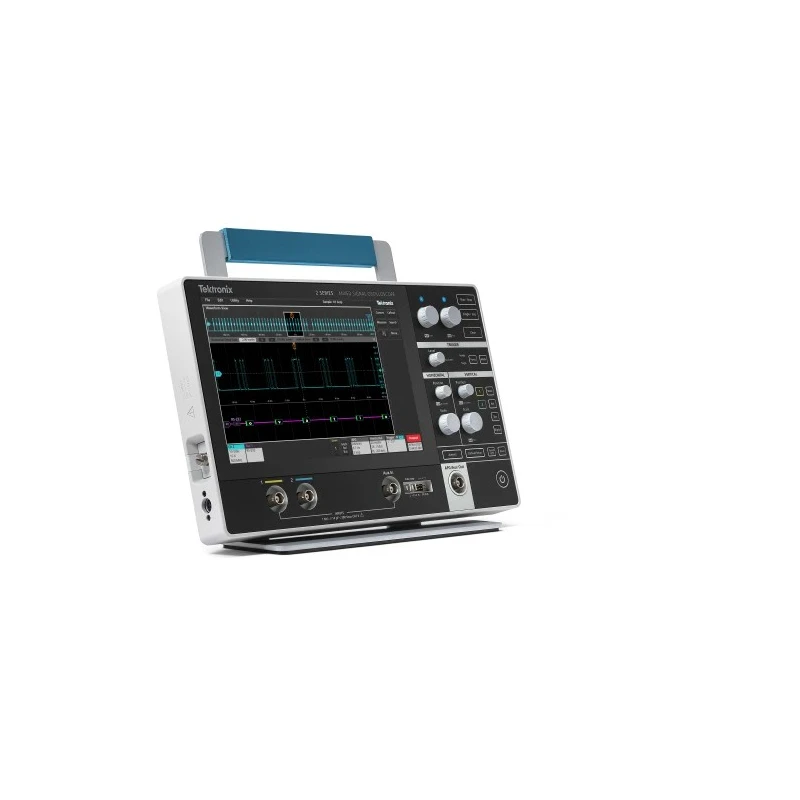

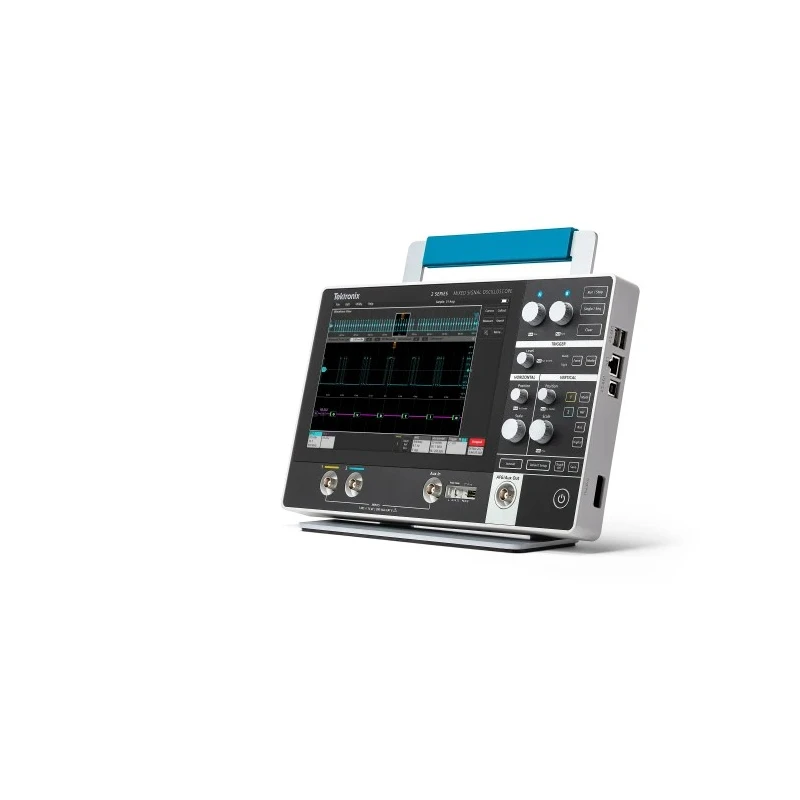

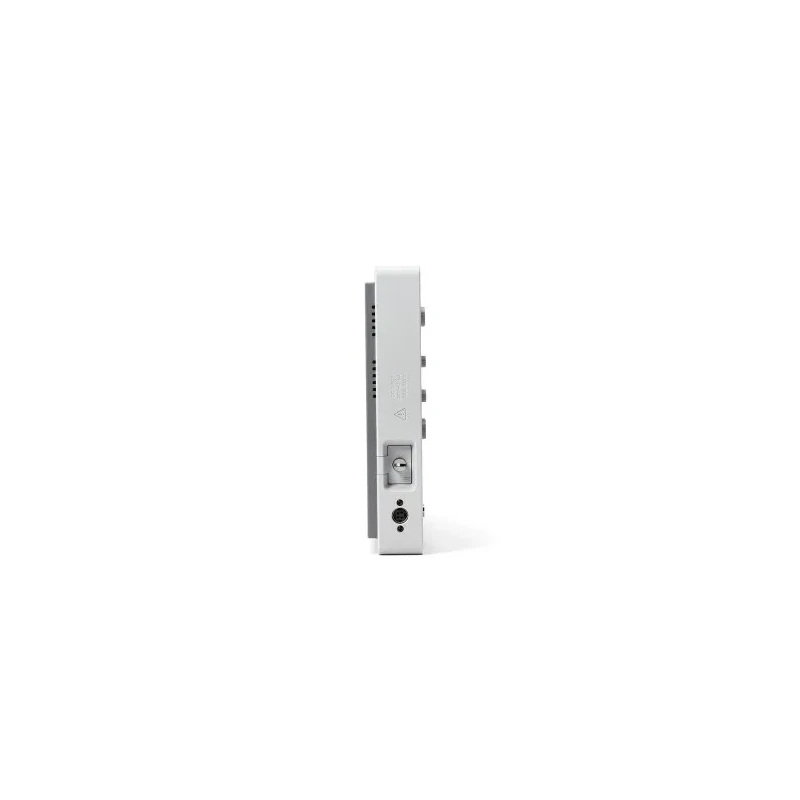

Tektronix 2 Series MSO Ultra Compact Mixed Signal Oscilloscope 2 Channels 100 MHz Battery Powered Capacitive MSO22 2-BW-100

Tektronix MSO22 2-BW-100 2 Series MSO Ultra Compact Mixed Signal Oscilloscope is a high-performance 2-channel oscilloscope with 100 MHz bandwidth and a 10.1-inch capacitive touchscreen. Designed for electronic debug and test applications, it combines portability with advanced features in an ultra compact form factor, measuring 210mm in height, 344mm in width, and only 40.4mm in depth. The mixed signal capability expands testing versatility by supporting analog and digital signals.

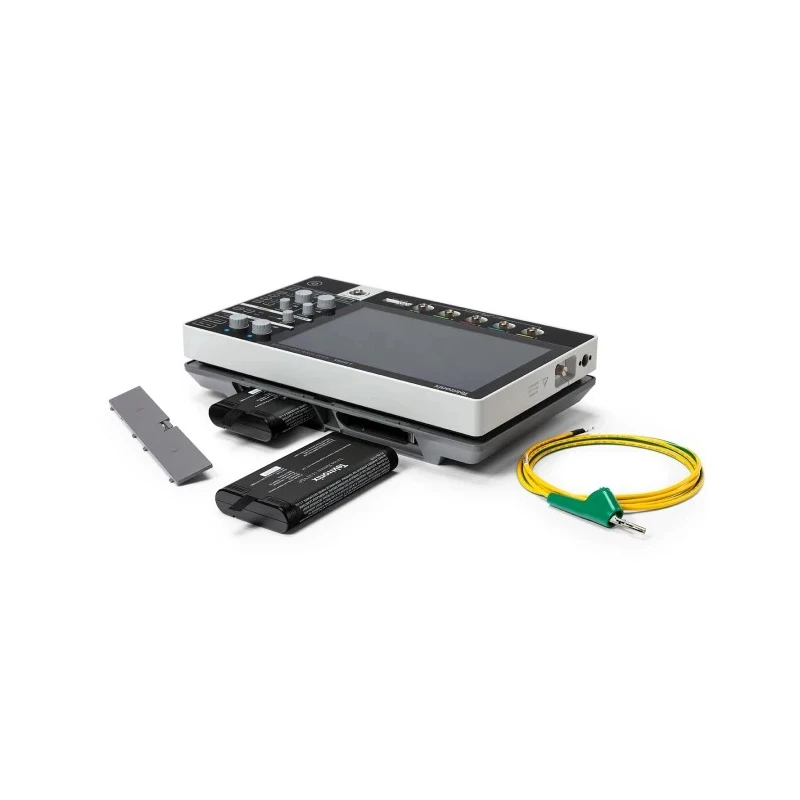

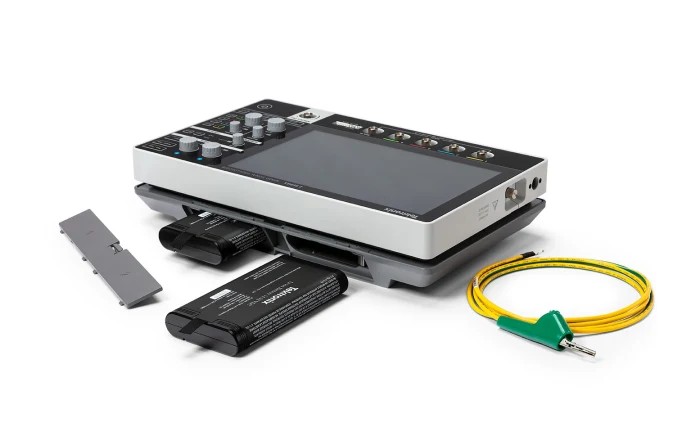

Its lithium-ion optional battery pack enables up to 8 hours of unplugged testing, with support for two hot-swappable batteries, making it suitable for both bench and field use. The instrument supports widely used interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB protocols, enhancing its application range across industrial, laboratory, and manufacturing environments.

The oscilloscope includes a comprehensive set of accessories such as TPP0200 200 MHz 10x probes (one per channel), an instrument stand, external power supply, installation and safety manuals in multiple languages, and a calibration certificate traceable to national metrology institutes. It complies with RoHS, CE, and UL standards and possesses a CAT II safety category rating, ensuring reliable and safe operation.

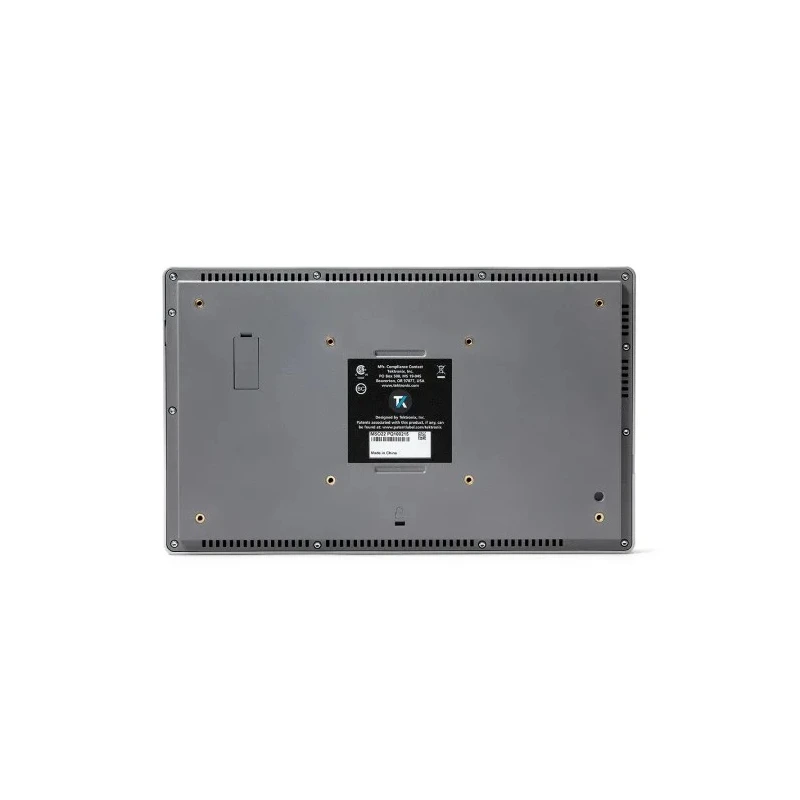

The award-winning touchscreen user interface is highly intuitive, providing quick access to functions and streamlined operation. The built-in VNC server allows users to remotely view and control the oscilloscope from PCs, tablets, or smartphones, increasing flexibility in monitoring and troubleshooting. The device's compatibility with VESA mounts assists in saving valuable bench space and adapting the unit to various work environments.

Optional extras such as protective cases, battery chargers, digital channels expansion, pattern generators, advanced triggers, protocol decoders, DVM, and frequency counters further extend the oscilloscope’s capabilities according to user's needs.

Offers 100 MHz bandwidth with 2 analog channels for precise measurement. Ultra compact form factor with dimensions 210mm height, 344mm width, and 40.4mm depth. Equipped with a 10.1-inch intuitive capacitive touchscreen interface.

Battery-powered with optional lithium-ion battery pack supporting up to 8 hours of operation. Supports multiple interfaces including CAN, CAN FD, I2C, LAN, LIN, SPI, UART, and USB protocols. Lightweight design weighing 1.8 kg without battery and up to 3.6 kg with two batteries.

Includes TPP0200 200 MHz, 10x probes, instrument stand, external power supply, and calibration certificate. Compliance with RoHS, CE, and UL safety standards, rated CAT II safety level. Built-in VNC server allows remote control from PC, tablet, or phone.

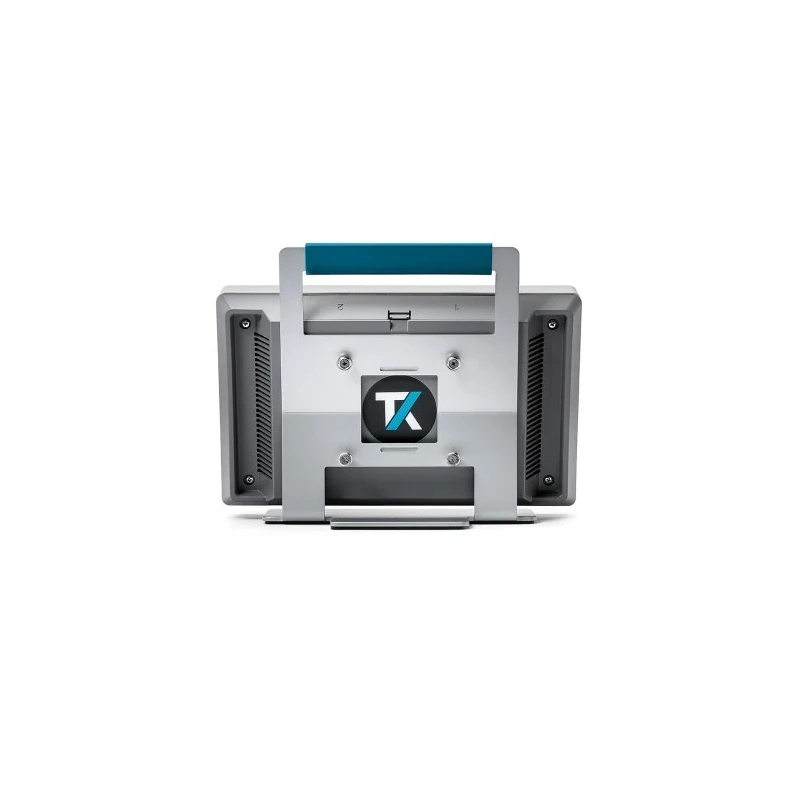

VESA mount compatible to save bench space and enhance versatility.

This Tektronix 2 Series MSO oscilloscope is ideal for industrial, laboratory, manufacturing, electronic design, and maintenance applications. Its portability and advanced measurement capabilities provide engineers and technicians with reliable diagnostics and testing tools. Explore more high-quality Oscilloscopes and test equipment on EnvMart for your professional requirements.
