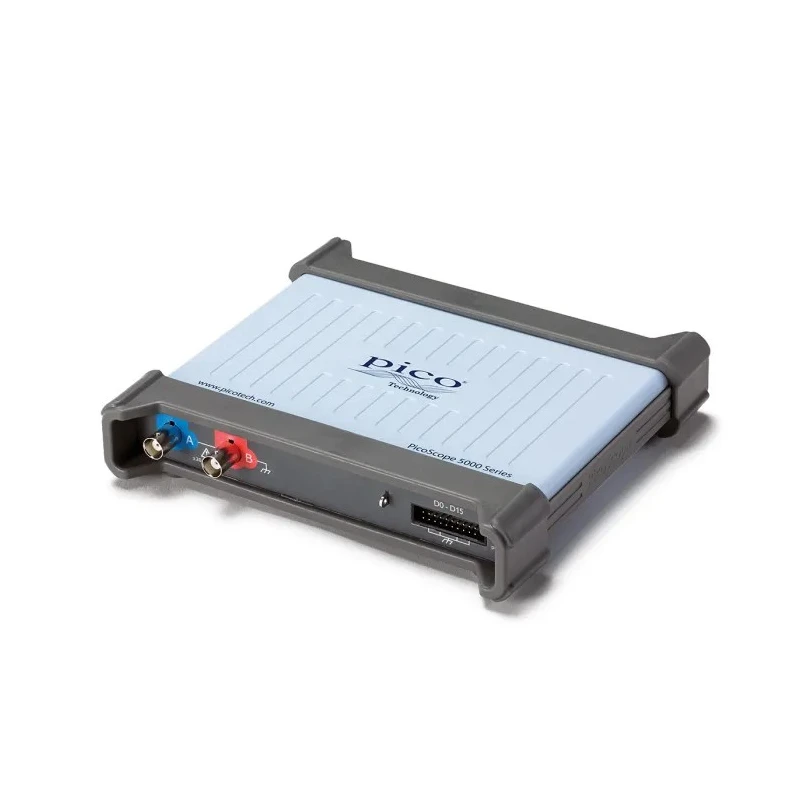

pico Technology PicoScope 5000D Series 100 MHz PC Based Oscilloscope 16-Channel PicoScope 5243D MSO

pico Technology PicoScope 5243D MSO is a high-speed, high-resolution PC Based Oscilloscope from the PicoScope 5000D Series with a 100 MHz bandwidth and 16 input channels. This advanced instrument provides exceptional performance with an 8 to 16 bit resolution and a range of sampling rates including 1 GS/s at 8 bit resolution, 500 MS/s at 12 bit, and 62.5 MS/s at 16 bit, making it suitable for detailed signal analysis and diagnostics.

Its mixed signal oscilloscope with built-in arbitrary waveform generator enhances flexibility for comprehensive testing and debugging. The oscilloscope supports numerous serial communication interfaces such as CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, thereby catering to diverse industrial and scientific applications.

Compact and robust, the device measures 190mm in length, 170mm in width, and 40mm in height, making it suitable for benchtop use with portable convenience. Its 16-bit vertical resolution ensures precise signal measurement with sensitivity settings from 2 mV/div to 4 V/div, and rise times as low as 3.5 ns, delivering sharp and accurate waveform capture.

Software compatibility spans Windows, Linux, and Mac platforms, making it adaptable to various environments. The oscilloscope is ideal for a wide range of applications including scientific research, medical devices testing, engineering diagnostics, automotive systems analysis, laboratory experiments, and telecommunications equipment evaluation.

This product combines flexibility, precision, and usability in a PC connected form factor, making it a valuable instrument for engineers, scientists, and technicians requiring comprehensive test and measurement capabilities.

High 100 MHz analog bandwidth for accurate signal analysis. 16-channel input supports simultaneous multi-signal monitoring. Supports interfaces: CAN, LIN, RS232, RS422, RS485, SPI, UART, USB for extensive connectivity. High-resolution 16-bit vertical resolution for detailed waveform data.

Equipped with built-in arbitrary waveform generator for signal simulation. Sample rate options include 1 GS/s (8 bit), 500 MS/s (12 bit), 62.5 MS/s (16 bit). Large 256 MS buffer memory facilitates extensive data capture.

Standard features include serial decoding and mask testing. Compact design suitable for benchtop deployment. Applications include scientific, medical, engineering, automotive, laboratory, and telecom uses. Explore a wide range of Oscilloscopes and test equipment at EnvMart for professional-grade measurement and diagnostics solutions.
