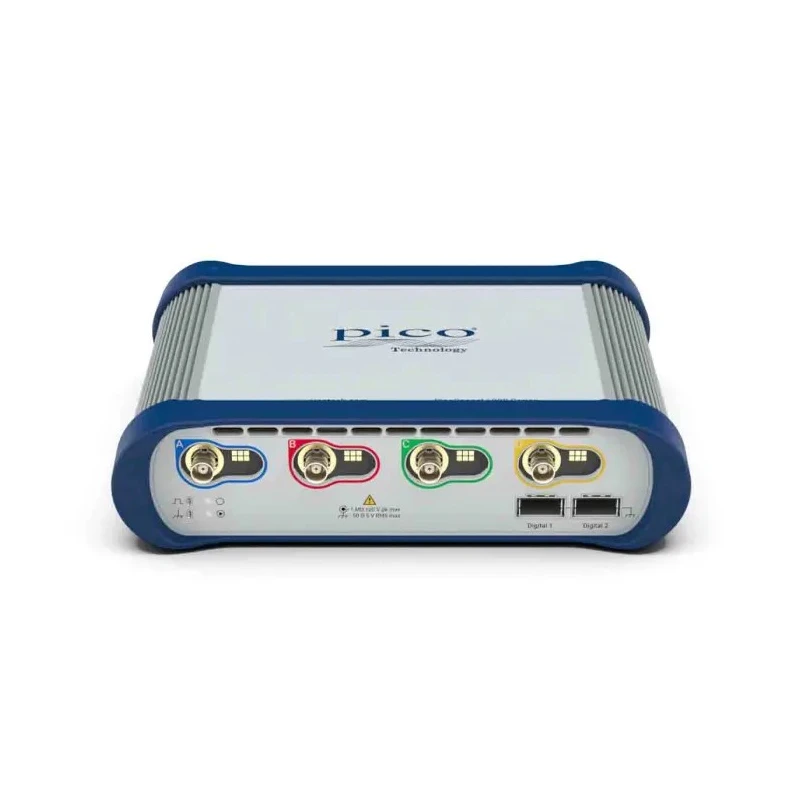

Pico Technology PicoScope 6000E Series PC Based Oscilloscope 4-Channel 500 MHz USB Interface PicoScope 6424E

Pico Technology PicoScope 6424E PC Based Oscilloscope from the 6000E Series features a 500 MHz bandwidth with four analog channels and USB connectivity. This instrument offers versatile performance for detailed signal analysis in industrial, laboratory, and electronic testing environments.

The oscilloscope supports sampling rates up to 5 GS/s at 8 bits vertical resolution, with deep memory of 4 GS enabling high timing accuracy over long capture periods. The device incorporates an included 50 MHz arbitrary/function generator output to complement signal testing needs.

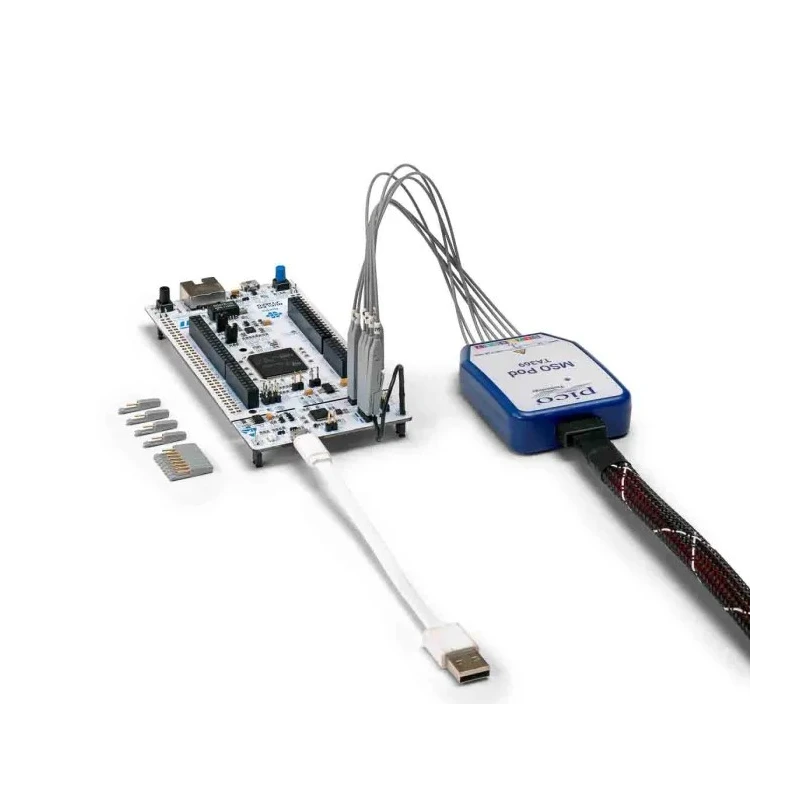

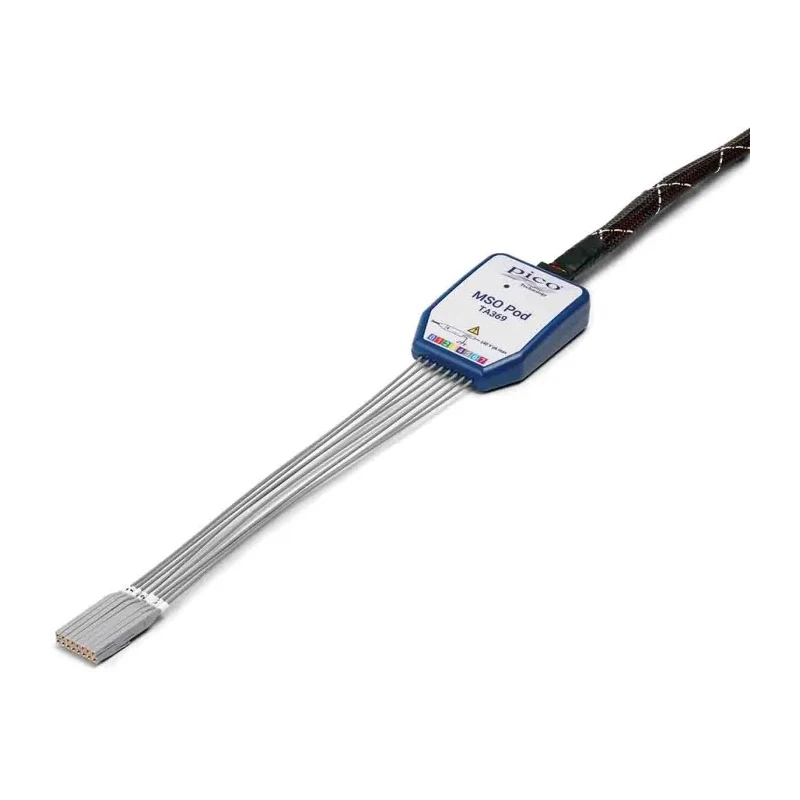

Users can expand functionality with optional 8 or 16 digital channels through TA369 MSO pods, enabling mixed-signal analysis. The unit interfaces with the user’s PC via USB and is compatible with the comprehensive PicoScope 6 software which supports Windows, macOS, and Linux operating systems alongside multi-touch control displays.

Advanced trigger capabilities include pulse width, runt pulse, windowed, logic, and dropout modes, helping users isolate complex signal events with precision. The scope comes supplied with 4x P2056 passive probes rated at 500 MHz for immediate use and testing versatility.

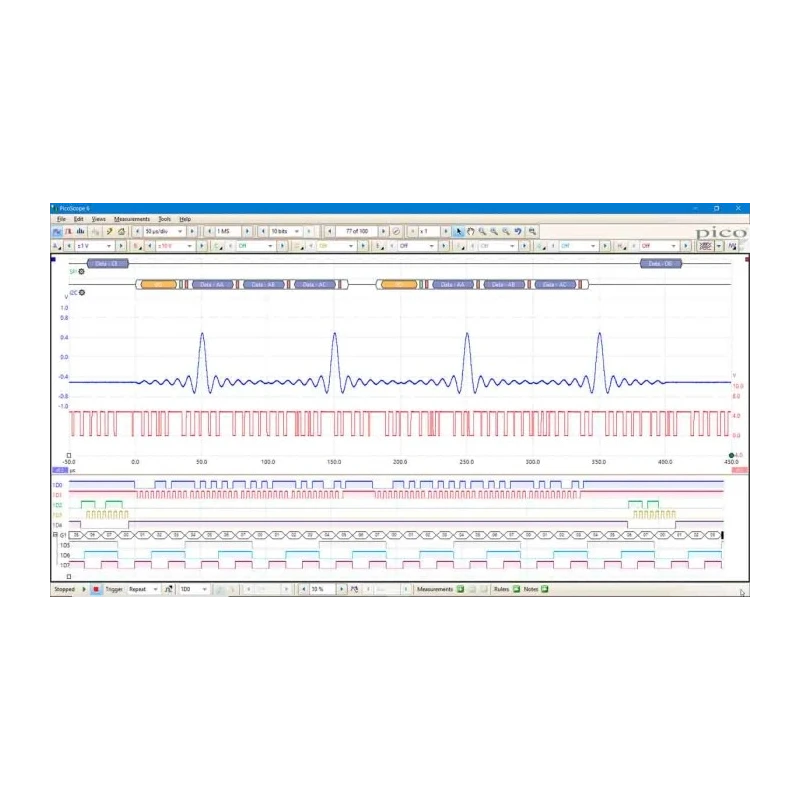

PicoScope 6 software includes numerous serial bus protocol decoders and free updates are provided for ongoing enhancements. Additionally, the freely available SDK supports customized software development, facilitating integration within automated test setups.

Four 500 MHz analog channels with 8-bit vertical resolution enable precise waveform capture. Sampling speed up to 5 GS/s and deep 4 GS memory allow extended time period captures. Includes 50 MHz arbitrary/function generator output to generate test signals.

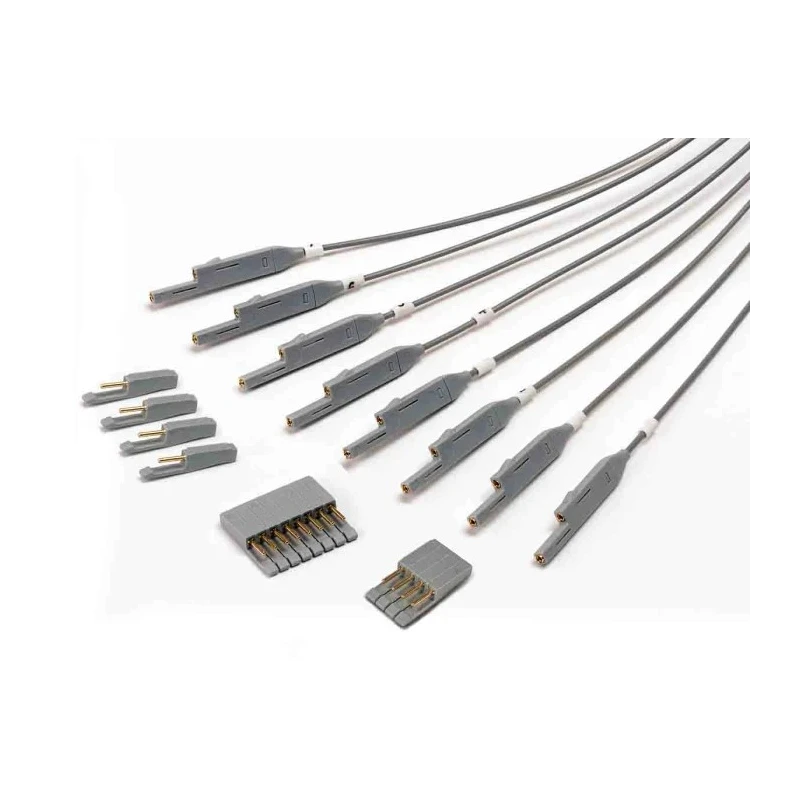

Optional digital channels support 8 or 16 MSO input lines with TA369 pods. Compatible with Windows, Mac, and Linux PCs running PicoScope 6 software. Advanced trigger options ensure reliable capture of complex or rare signal events.

Supplied with 4x P2056 500 MHz passive probes for ready-to-use measurement. Software development kit (SDK) available for custom development and automation.

This PC based Oscilloscope is suitable for a variety of industrial measurement, laboratory analysis, maintenance, and educational applications where high bandwidth and feature-rich PC connectivity are essential. It is manufactured in the United Kingdom ensuring high quality standards.
