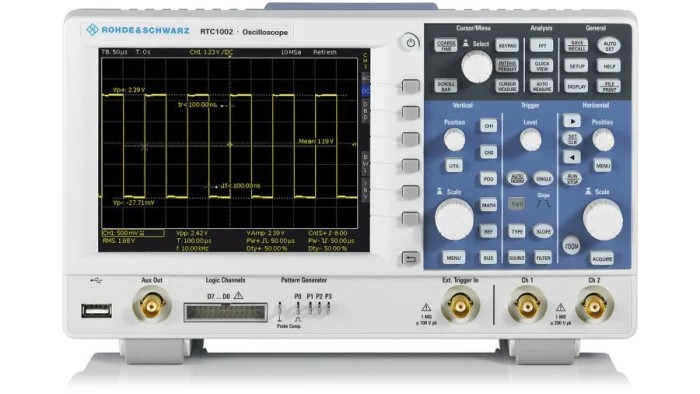

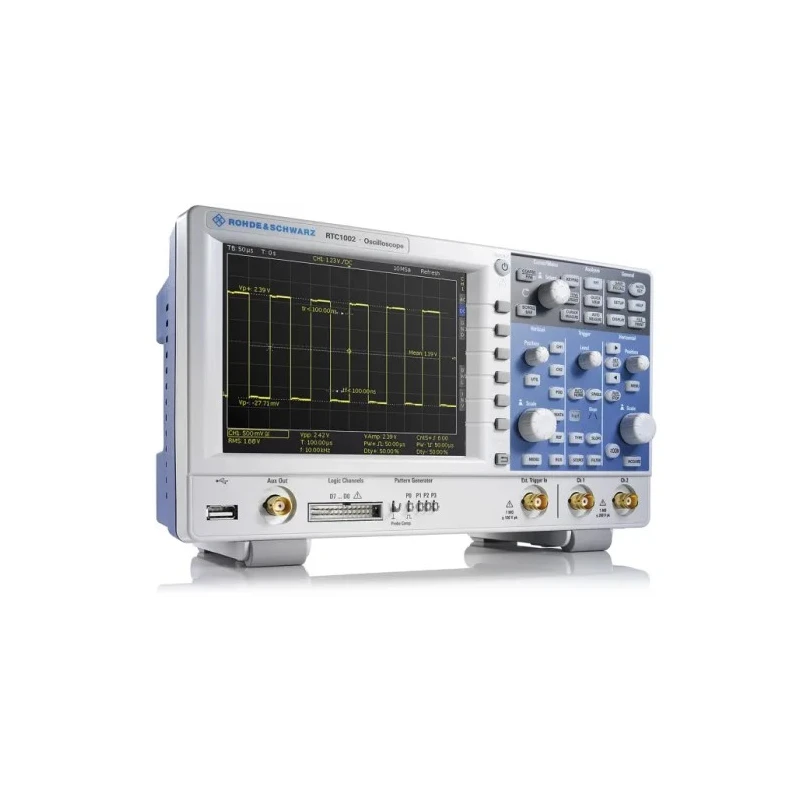

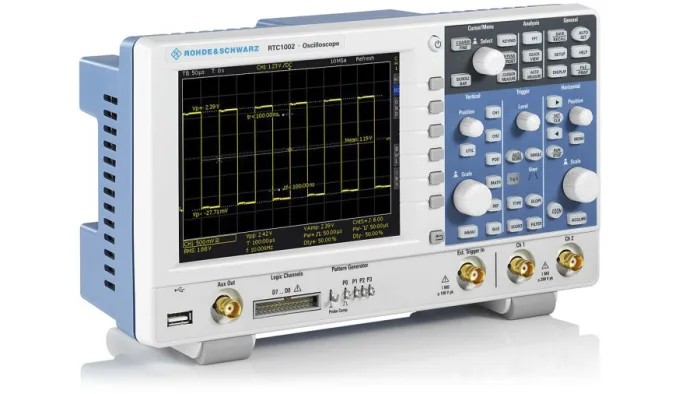

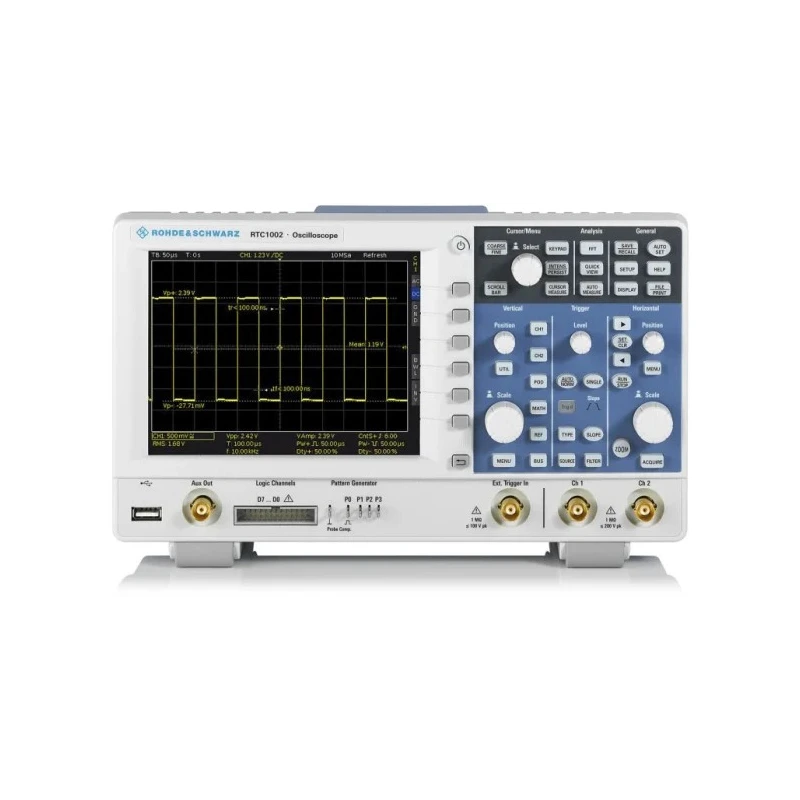

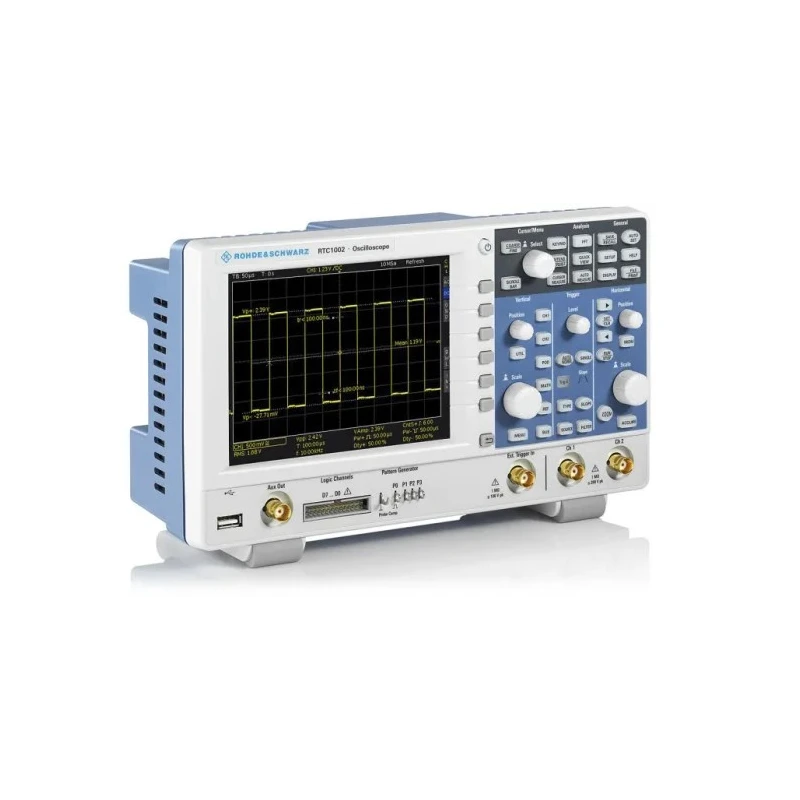

Rohde & Schwarz 200 MHz Bench Oscilloscope 2-Channel RTC1000

Rohde & Schwarz RTC1K-202 200 MHz Bench Oscilloscope 2-Channel is a precision digital oscilloscope designed to deliver high vertical sensitivity and versatile measurement functions. It features a bandwidth of 200 MHz, allowing detailed waveform analysis for a wide range of electronic applications.

This bench oscilloscope offers 2 analog input channels, enabling dual simultaneous voltage measurements with a vertical resolution of 8-bit and optional 16-bit for increased precision. The device is equipped with a memory depth of 2 million sampling points (2 Mpts) and a high sampling rate of 2 GSa/s, providing clear capture of transient signals and complex waveforms.

Additionally, the oscilloscope integrates a function generator supporting signal frequencies up to 50 kHz for generating testing signals. Optional mixed-signal oscilloscope (MSO) functionality adds 8 digital channels to analyze digital logic signals along with analog waveforms, making it suitable for a variety of development and troubleshooting tasks.

The design includes a fanless cooling system for quieter operation and reduced electromagnetic interference, enhancing measurement reliability in laboratory and field environments. It supports a broad suite of communication interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB, facilitating extensive connectivity options for diverse measurement tasks.

Offers a bandwidth of 200 MHz for precise signal analysis. Equipped with 2 analog input channels for simultaneous voltage measurements. Bench oscilloscope design suitable for laboratory and industrial environments. Memory depth of 2 million points and a sampling rate of 2 GSa/s enhances measurement accuracy.

Includes a function generator with frequencies up to 50 kHz for versatile testing. Optional 8 digital channels with MSO functionality for mixed signal testing. Low noise performance due to an 8-bit analogue to digital converter design.

Fanless design ensures quiet operation and improved reliability. Supports multiple digital interfaces including CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, and USB. Compact and ergonomic with dimensions: 285 mm length, 140 mm width, 175 mm height.

Applications include educational institutes, service technician work, research and development troubleshooting, and production testing. It is an essential tool for detailed electrical signal examination in industrial, laboratory, and manufacturing settings.

Country of origin is Czech Republic, and the instrument comes in new condition ensuring reliability and warranty coverage. The product package contains the RMCD model RTC1K-202 oscilloscope.
