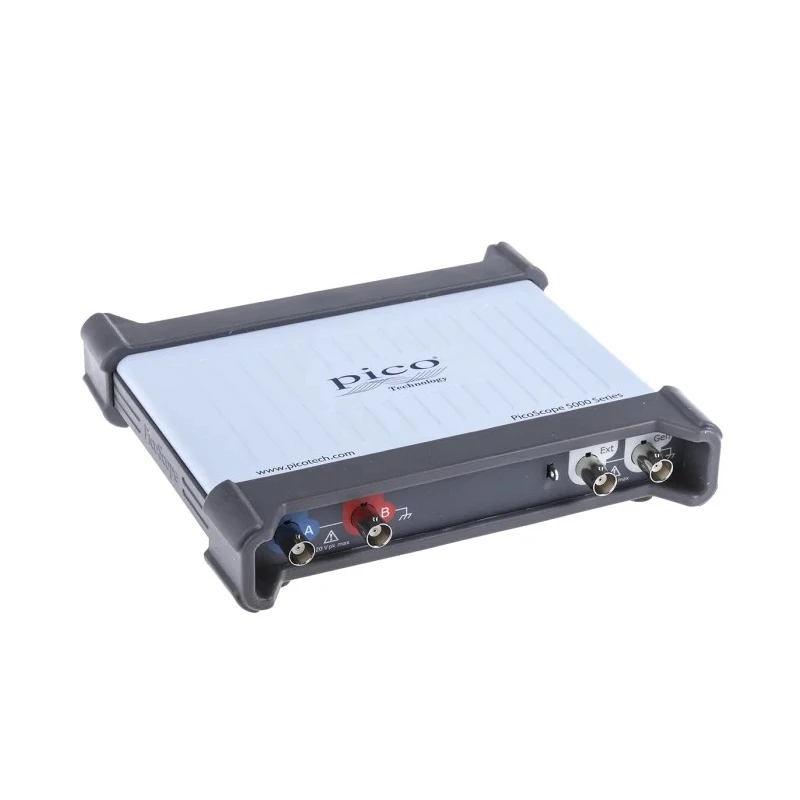

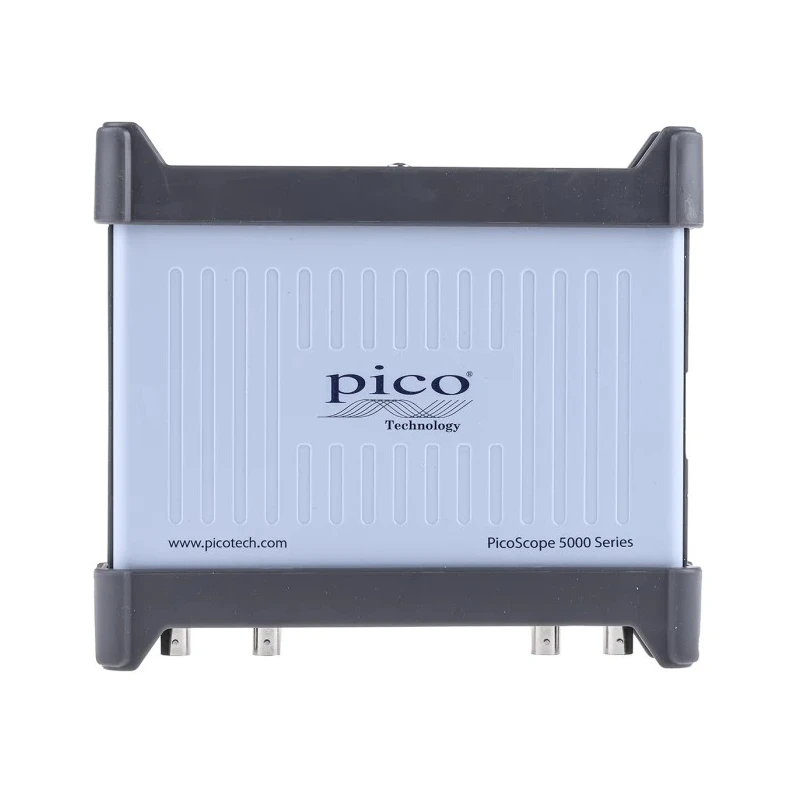

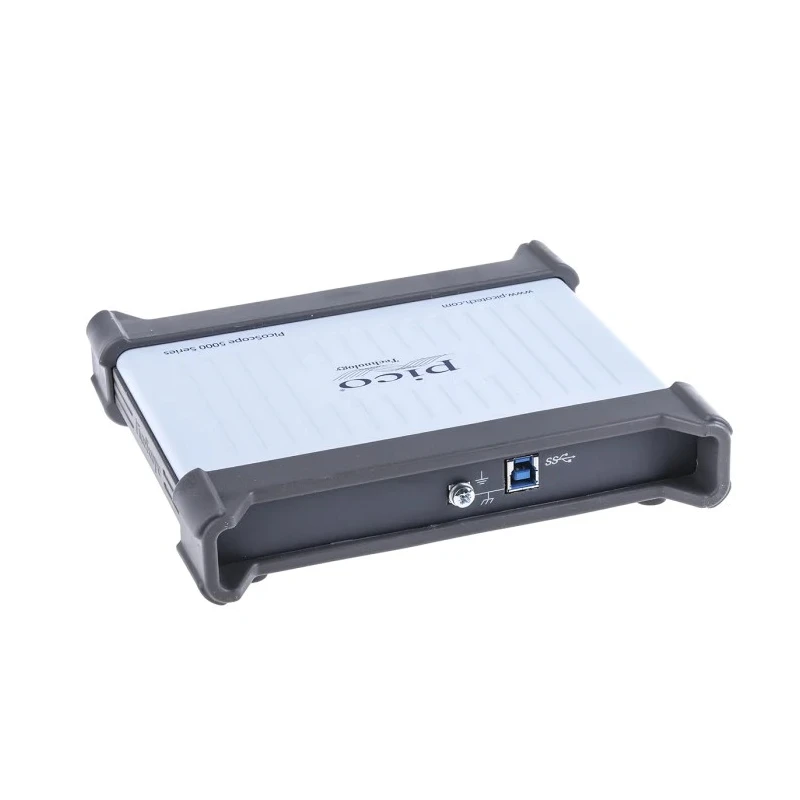

Pico Technology PC Based Oscilloscope 60 MHz Bandwidth 2 Channel 16-Bit Resolution USB Powered PicoScope 5242D
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Resolution | 8 bit |
| Brand | Pico Technology |
| Height | 40mm |
| Length | 190mm |
| Model | PicoScope 5242D |
| Width | 170mm |
| Bandwidth | 60MHz |
| Series | PicoScope 5000D |
| Number Of Channels | 2 |
| Vertical Resolution | 16 bit |
| Rise Time | 5.8ns |
| Interface Type | CAN, LIN, RS232, RS422, RS485, SPI, UART, USB |
| Oscilloscope Type | PC Based |
| Minimum Vertical Sensitivity | 2mV/div |
| Minimum Time Base | 1ns/div |
| Maximum Vertical Sensitivity | 4V/div |
| Maximum Time Base | 5000s/div |
Key Features
- Supports 16-bit vertical resolution for precise waveform analysis.
- Sampling rates up to 1 GS/s at 8-bit resolution ensure detailed signal capture.
- Interfaces include USB and various serial protocols like CAN, LIN, SPI, UART for versatile connectivity.
- Large 512 MS buffer memory enables extensive waveform storage for in-depth diagnostics.
- Compatible with Windows, Linux, and Mac operating systems for flexibility in use.
- Compact dimensions of 190mm length, 170mm width, and 40mm height for benchtop use.
- Minimum time base of 1 ns/div and rise time of 5.8 ns aids in accurate time-domain measurements.
- Provides multi-instrument functionality for embedded electronics, automotive, and educational laboratory applications.
Product Description
Pico Technology PicoScope 5242D PC Based Oscilloscope is a high-performance 60 MHz benchtop oscilloscope featuring two independent channels with 16-bit ADC resolution. This device offers exceptional speed and sampling capabilities, including 1 GS/s at 8-bit resolution, 500 MS/s at 12-bit, and 62.5 MS/s at 16-bit resolution, supporting detailed signal analysis for electronics troubleshooting, embedded system development, and automotive diagnostics.
The oscilloscope boasts a large 512 MS buffer memory and an arbitrary waveform generator capable of 200 MS/s, making it an excellent tool for mixed signal and video designing. Its compatibility with multiple serial protocols such as CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB interfaces ensures seamless integration into modern test environments.
Physically compact, measuring 190 mm in length, 170 mm in width, and 40 mm in height, it is suitable for benchtop use in educational laboratories and industrial settings. The device offers a minimum time base of 1 ns/div and a rise time of 5.8 ns, delivering precise temporal measurement capabilities. Vertical sensitivity ranges from 2 mV/div to 4 V/div with a vertical resolution up to 16 bits.
This oscilloscope series employs breakthrough ADC technology, switching between 8 and 16 bits in the same instrument, thereby providing flexibility for various signal analysis applications. It supports high waveform capture rates of 100,000 waveforms per second and enables serial data decoding and mask testing for embedded system validation.
Designed for versatility, the PicoScope 5242D is suitable for use in educational laboratories, electronics troubleshooting and measurement, embedded electronics development, mixed signal and video design, as well as automotive electronics diagnostics. USB power supply facilitates convenient operation without external adapters.
Supports 16-bit vertical resolution for precise waveform analysis. Sampling rates up to 1 GS/s at 8-bit resolution ensure detailed signal capture. Interfaces include USB and various serial protocols like CAN, LIN, SPI, UART for versatile connectivity.
Large 512 MS buffer memory enables extensive waveform storage for in-depth diagnostics. Compatible with Windows, Linux, and Mac operating systems for flexibility in use. Compact dimensions of 190mm length, 170mm width, and 40mm height for benchtop use.
Minimum time base of 1 ns/div and rise time of 5.8 ns aids in accurate time-domain measurements. Provides multi-instrument functionality for embedded electronics, automotive, and educational laboratory applications. USB powered for easy setup without additional power supply requirements.
Explore the full range of Oscilloscopes and measuring instruments on EnvMart for advanced testing and troubleshooting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PicoScope 5242D has a bandwidth of 60 MHz, allowing for the analysis of signals within that frequency range.
This model offers a vertical resolution of 16 bits, which provides precise waveform analysis capabilities.
It supports sampling rates of up to 1 GS/s at 8-bit resolution, 500 MS/s at 12-bit, and 62.5 MS/s at 16-bit resolution.
This oscilloscope includes interfaces for CAN, LIN, RS232, RS422, RS485, SPI, UART, and USB, ensuring versatile connectivity options.
The PicoScope 5242D features a large buffer memory of 512 MS, allowing for extensive waveform storage for detailed diagnostics.
It has compact dimensions of 190 mm in length, 170 mm in width, and 40 mm in height, making it suitable for benchtop use.
The minimum time base of the PicoScope 5242D is 1 ns/div, which aids in accurate time-domain measurements.
The rise time of this oscilloscope is 5.8 ns, which contributes to its capability for precise temporal measurements.
This model is compatible with Windows, Linux, and Mac operating systems, providing flexibility in its use.
The maximum vertical sensitivity of the PicoScope 5242D is 4 V/div, allowing for a wide range of signal amplitudes to be measured.
It is suitable for applications such as embedded electronics development, automotive diagnostics, and educational laboratory use.
The PicoScope 5242D is a PC-based oscilloscope, meaning it connects to a computer for operation and analysis.
