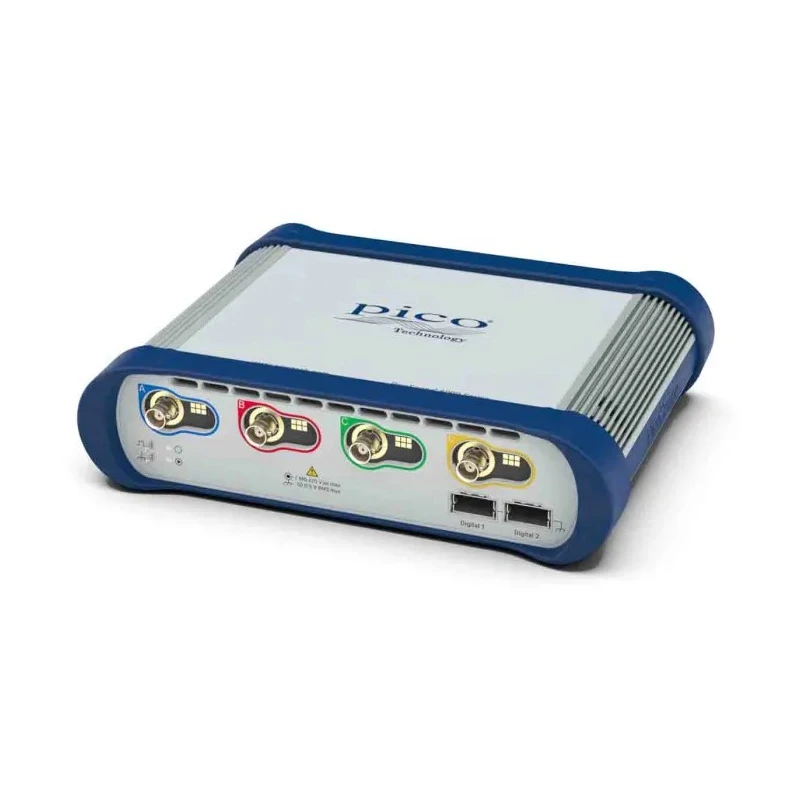

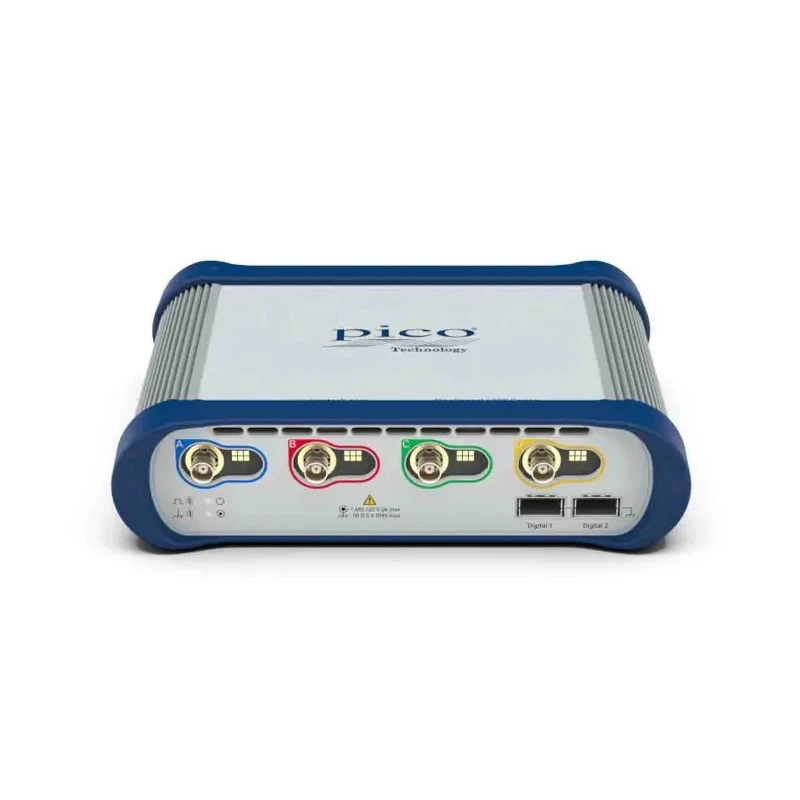

Pico Technology PicoScope 6000E Series PC-Based Oscilloscope 4-Channel 500 MHz Bandwidth PicoScope 6404E

Pico Technology PicoScope 6404E is a high-performance PC-Based Oscilloscope from the PicoScope 6000E Series featuring 500 MHz bandwidth and 4 analog channels with 8-bit vertical resolution. It offers a maximum sampling rate of 5 GS/s enabling accurate capture of high-frequency signals and detailed waveform analysis. The deep memory of 2 GS enhances timing resolution over long acquisition periods, segmented by multiple time-stamped triggers.

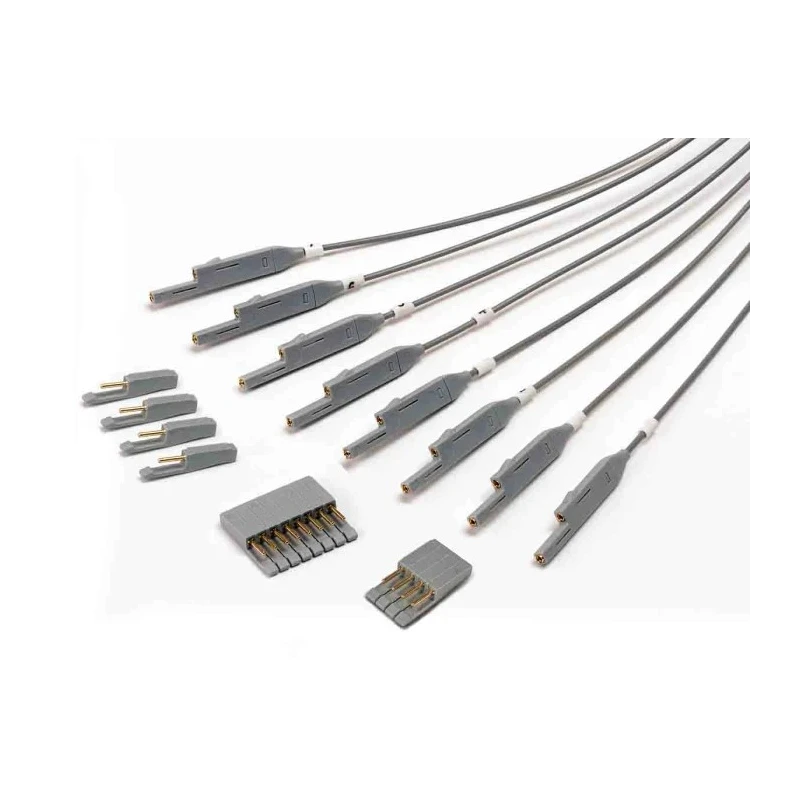

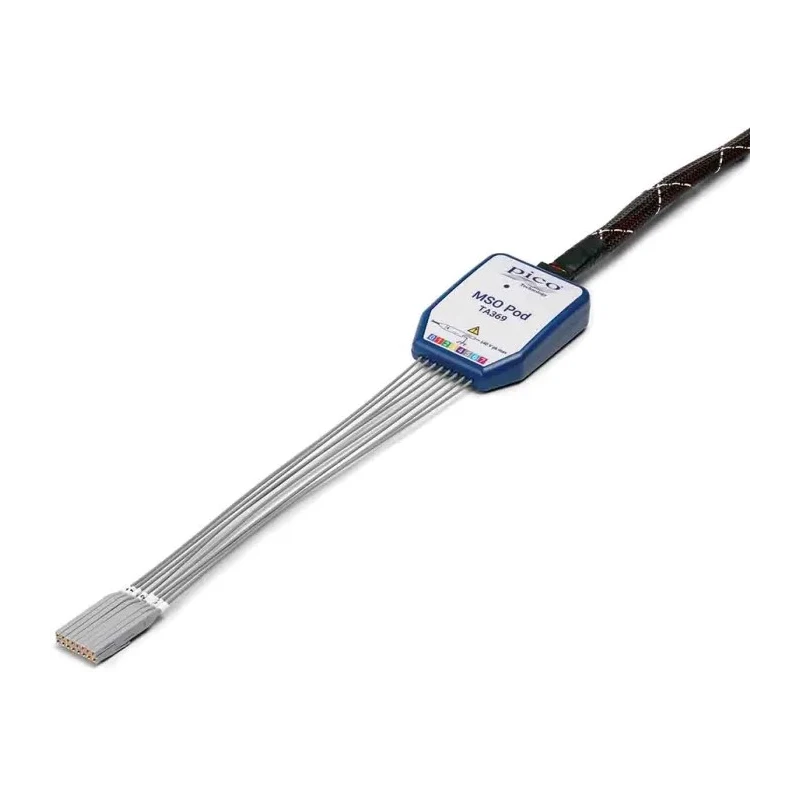

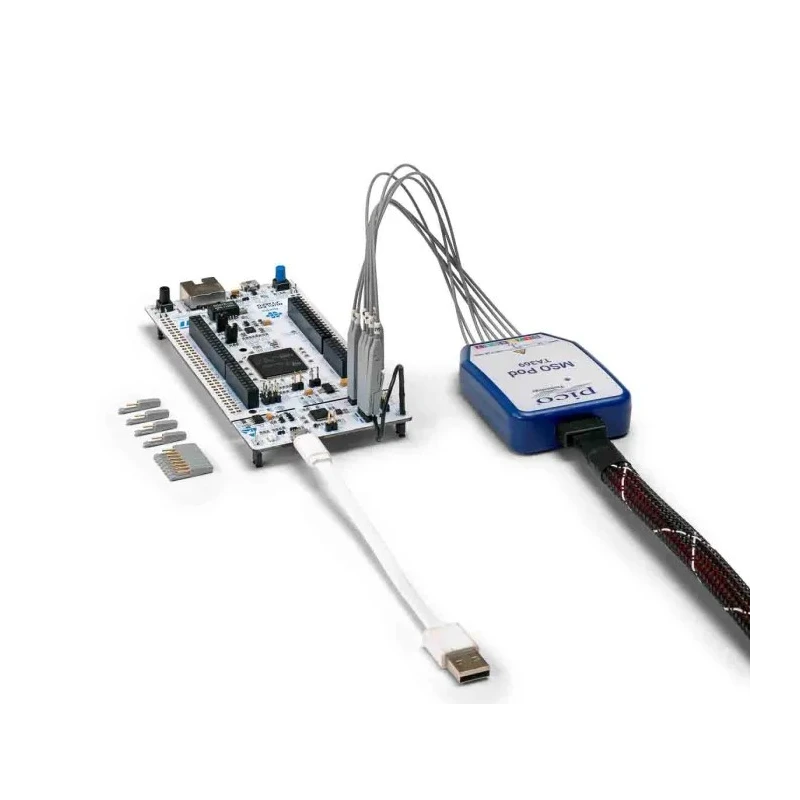

This oscilloscope includes a standard 50 MHz arbitrary/function generator output for versatile signal generation. With the addition of optional TA369 8-channel MSO pods, users can expand digital channel capabilities to 8 or 16 channels, providing mixed-signal analysis suitable for complex embedded systems.

The unit connects through USB 3.0 SuperSpeed interface compatible with USB 2.0 ports, facilitating fast data transfer to the user's PC. It runs the feature-rich PicoScope 6 software available for Windows, Mac, and Linux operating systems, supporting multi-touch displays and offering advanced serial bus protocol decodes. A free software development kit (SDK) is also available for developers.

The package includes four P2056 500 MHz passive probes, enabling immediate deployment. The device weighs approximately 2.2 kg (scope only) and 5.6 kg when packed with carry case, PSU, and cables. Its dimensions are 245 x 192 x 61.5 mm, and the product carries an IP20 protection rating. Compliance with the EN 61010-1:2010 safety standard ensures dependable operation in professional environments.

PicoScope 6404E is ideal for researchers, design engineers, and scientists working in high-performance embedded systems, signal processing, power electronics, mechatronics, automotive design, and physics experiments. The device supports advanced triggers including pulse width, runt pulse, windowed, logic, and dropout triggers, enhancing test and measurement capabilities.

Includes deep memory capture of up to 2 GS for detailed signal analysis. Features 50 MHz arbitrary/function generator output as standard. Supports optional 8 or 16 digital MSO channels with TA369 pods. Comes with 4x P2056 500 MHz passive probes included for immediate use.

Compatible with Windows, Mac, and Linux via PicoScope 6 software supporting multi-touch displays. USB 3.0 SuperSpeed interface with backward compatibility to USB 2.0. Designed according to EN 61010-1:2010 and rated IP20.
