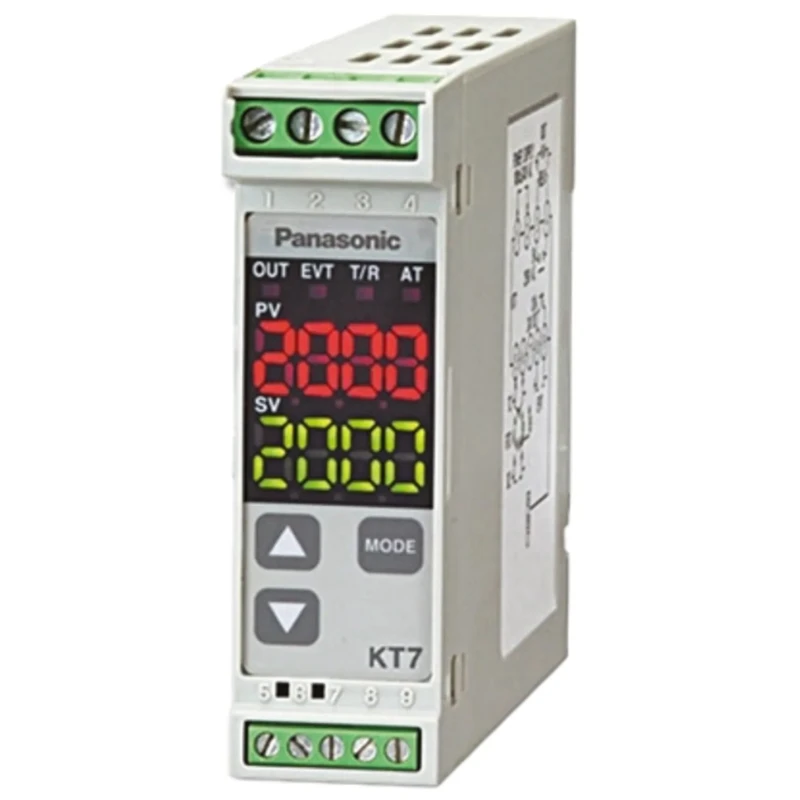

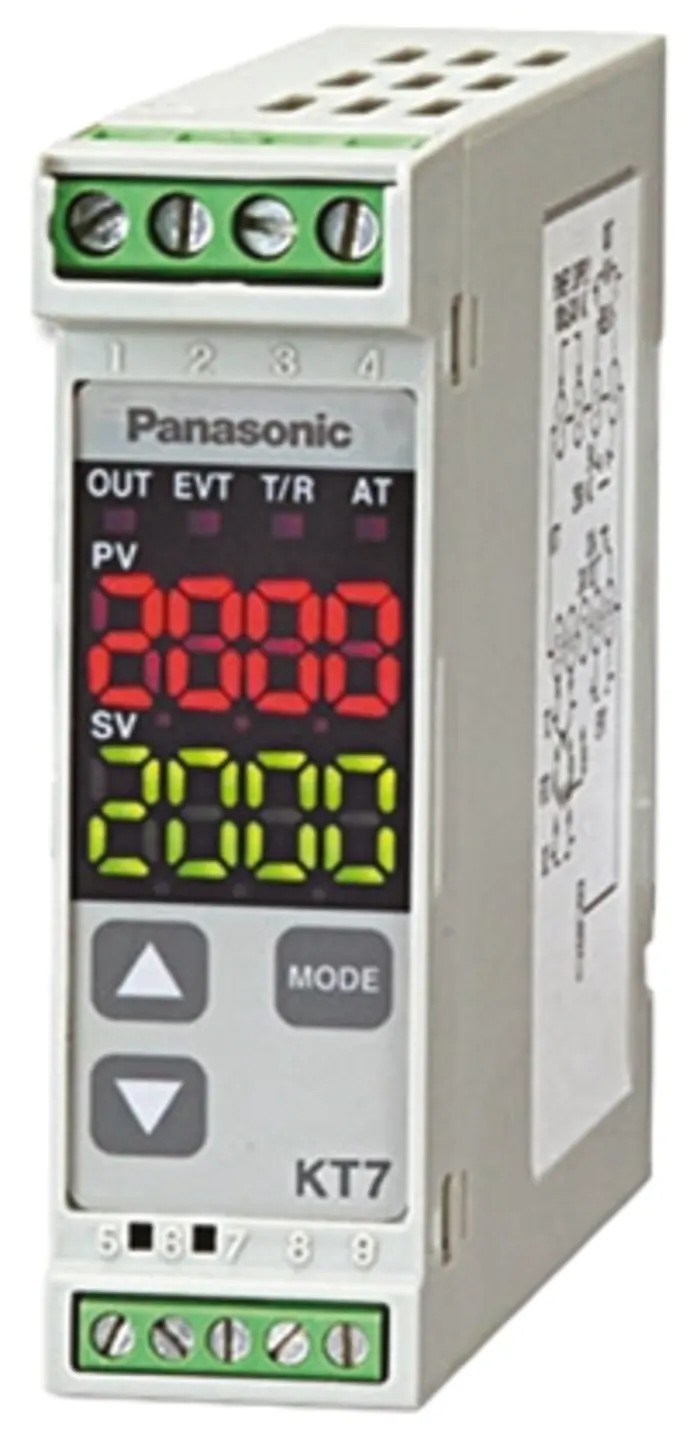

Panasonic KT7 Panel DIN Rail PID Temperature Controller 1 Input 1 Output Current 240V ac On-Off AKT7113100

Free Delivery in India | Lowest Global Shipping Charges

Panasonic KT7 Panel DIN Rail PID Temperature Controller 1 Input 1 Output Current 240V ac On-Off AKT7113100

Name: Panasonic KT7 Panel DIN Rail PID Temperature Controller 1 Input 1 Output Current 240V ac On-Off AKT7113100
Brand: Panasonic
SKU: 373011
Price: 320.85 USD
Availability: InStock



Category Temperature Controller Brand Panasonic Condition New

Specifications

Country of Origin	Japan
Display Type	Digital
Brand	Panasonic
Length	10mm
Model	AKT7113100
IP Rating	IP66
Width	22.5mm
Mount Type	Panel, DIN Rail
Number of inputs	1
Output type	Current
Series	KT7
Maximum Operating Temperature	50°C
Control Type	On-Off
Minimum Operating Temperature	0°C
Number of outputs	1
Terminal type	Screw
Standards/Approvals	IEC 61010-1
Maximum Supply Voltage	240V ac
Digital Comms	RS485
Panel Depth	97mm

Key Features

Equipped with a digital display showing actual and reference values simultaneously.
Supports P-, PD, PI, and PID control types for versatile application.
IP66 rated for robust protection in harsh environments.
Flush mount design with screw terminals for secure panel or DIN rail mounting.
Operates reliably within 0 to 50°C temperature range.
Features RS485 digital communication for integration and data monitoring.
Includes auto-tuning functionality for swift and accurate setup.
Series KT7 offers energy-efficient operation without performance compromise.

Product Description

Panasonic AKT7113100 is a professional grade KT7 Panel DIN Rail PID Temperature Controller designed for precise temperature management in industrial and automation applications. It features one input and one output current at 240V ac, providing reliable on-off control. The controller is equipped with a dual LED digital display that clearly indicates both actual and setpoint temperatures, enabling operators to monitor process conditions effortlessly.

Constructed for durability, this model supports multiple control algorithms including P-, PD, PI, and PID type controls, allowing flexible adaptation to various temperature control needs. It also includes an auto-tuning feature that facilitates rapid commissioning and optimal control performance. With an IP66 rating, the unit is sealed to withstand dust and water ingress, suitable for demanding industrial environments.

The Panasonic KT7 controller integrates RS485 digital communication capabilities, enabling seamless data logging and monitoring through optional Panasonic software available for configuration and parameter adjustments from a computer. Its compact dimensions and flush mount design with screw terminals enable convenient panel or DIN rail mounting with secure installation.

Operating temperature range is 0 to 50°C, ensuring stable performance in typical industrial ambient conditions. The product is precision-engineered in Japan, ensuring high quality and reliability expected from Panasonic.

Digital dual LED display for real-time temperature monitoring. Auto-tuning for optimized control without manual adjustment. RS485 communication for enhanced system integration. IP66-rated enclosure protects against dust and water.

Versatile mounting options include panel and DIN rail. Supports various sensor inputs including RTD, thermocouple, and DC voltage/current. Compact and robust design suitable for industrial use.

This Panasonic KT7 PID Temperature Controller is ideal for industrial automation, manufacturing, HVAC systems, and laboratory process control that require accurate and reliable temperature regulation. Browse more Temperature Controllers and Panasonic products at EnvMart for your industrial automation needs.
